Asus RT-N15U User Manual

27
Chapter 4: Conguring via the web GUI RT-N15U
Setting up the wireless router in AP mode
In the AP mode, the wireless router receives the WAN IP address from the router
connected to the WAN port and provides you with wireless radio signals. The NAT,
rewall, and IP sharing services are disabled.

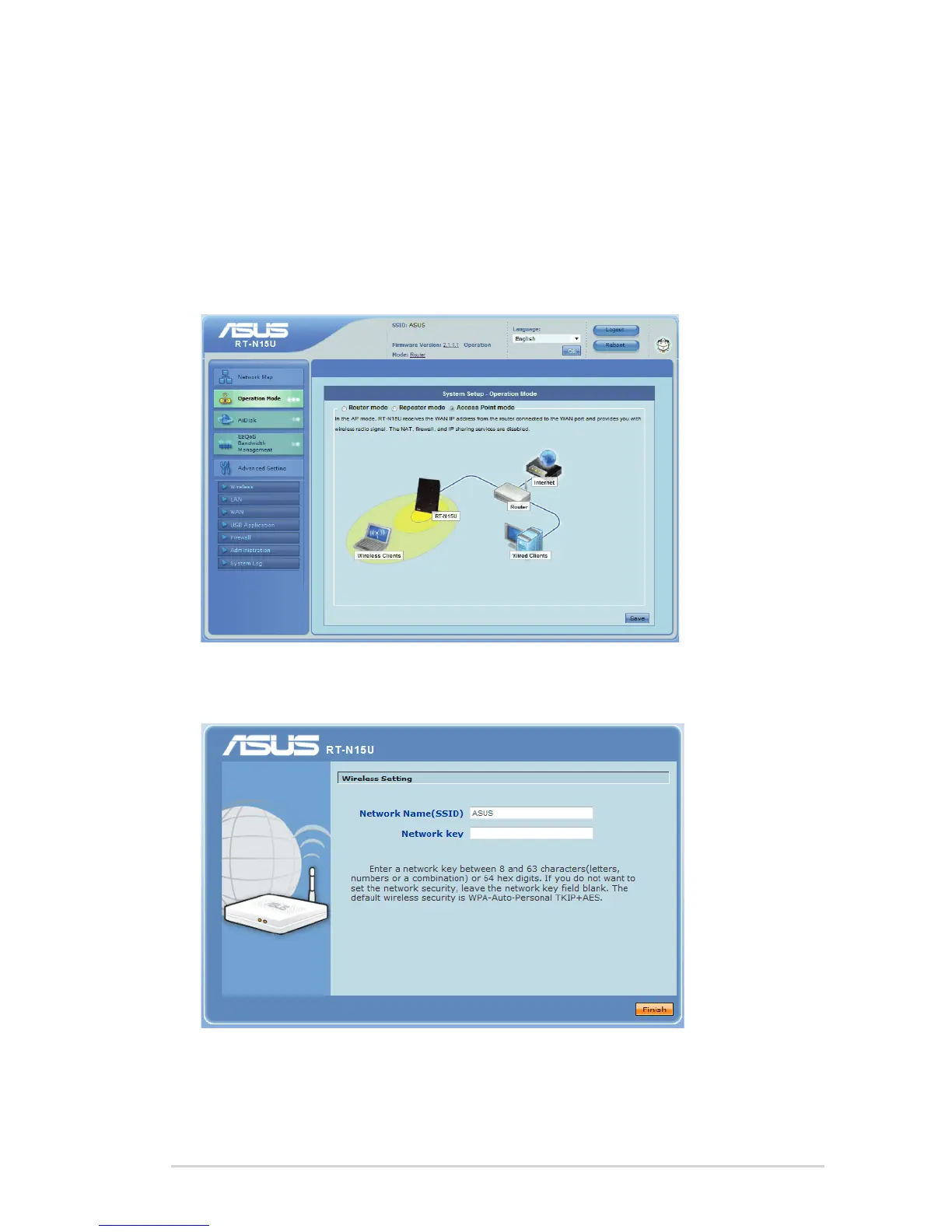

To set up the wireless router in AP mode:
1. From the navigation menu, click Operation Mode, select AP mode, and click
Save.
2. From the network list, select the network that you want to connect to, then click
Connect.

Asus RT-N15U Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4835 GHz
Interface	LAN, WAN
Input voltage	110 - 240 V
Frequency range	2400 - 24835MHz
Input frequency	50/60 Hz
Dimensions (WxDxH)	145 x 172 x 24 mm
Power requirements	12V DC, 1A
USB ports quantity	1
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Maximum data transfer rate	1 Gbit/s
WLAN data transfer rates supported	1, 2, 6, 9, 11, 12, 18, 24, 36, 48, 54, 300 Mbit/s
Supported network protocols	WAN PPPoE, PPTP, L2TP
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
MAC address filtering	-
Antennas quantity	2
Antenna gain level (max)	3 dBi
RJ-11 ports quantity	0
Ethernet LAN (RJ-45) ports	4
Power consumption (typical)	12 W
Product color	Black
LED indicators	LAN, Power, USB, WAN

Weight and Dimensions

Depth	172 mm
Width	145 mm
Height	24 mm
Weight	240 g
