A10/A11/A10W/A11W IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
Admin password: Set password for admin webpage access. Input ‘http://ip-address/index.asp’
in the web browser to access admin’s login webpage after setting the admin password, then input
username(admin) and password to access the admin’s webpage.
User password: Set password for user webpage access. Input ‘http://ip-address/user.asp’ in the
web browser to access user’s login webpage after setting the user password, then input
username(user) and password to access the user’s webpage.
HTTP port: set port for HTTP access (defaults to 80)
For example, A10/A11/A10W/A11W's IP is 192.168.1.223
HTTP port was set as 100, you have to type "http://192.168.1.223:100" in web browser to enter
A10/A11/A10W/A11W’s webpage.

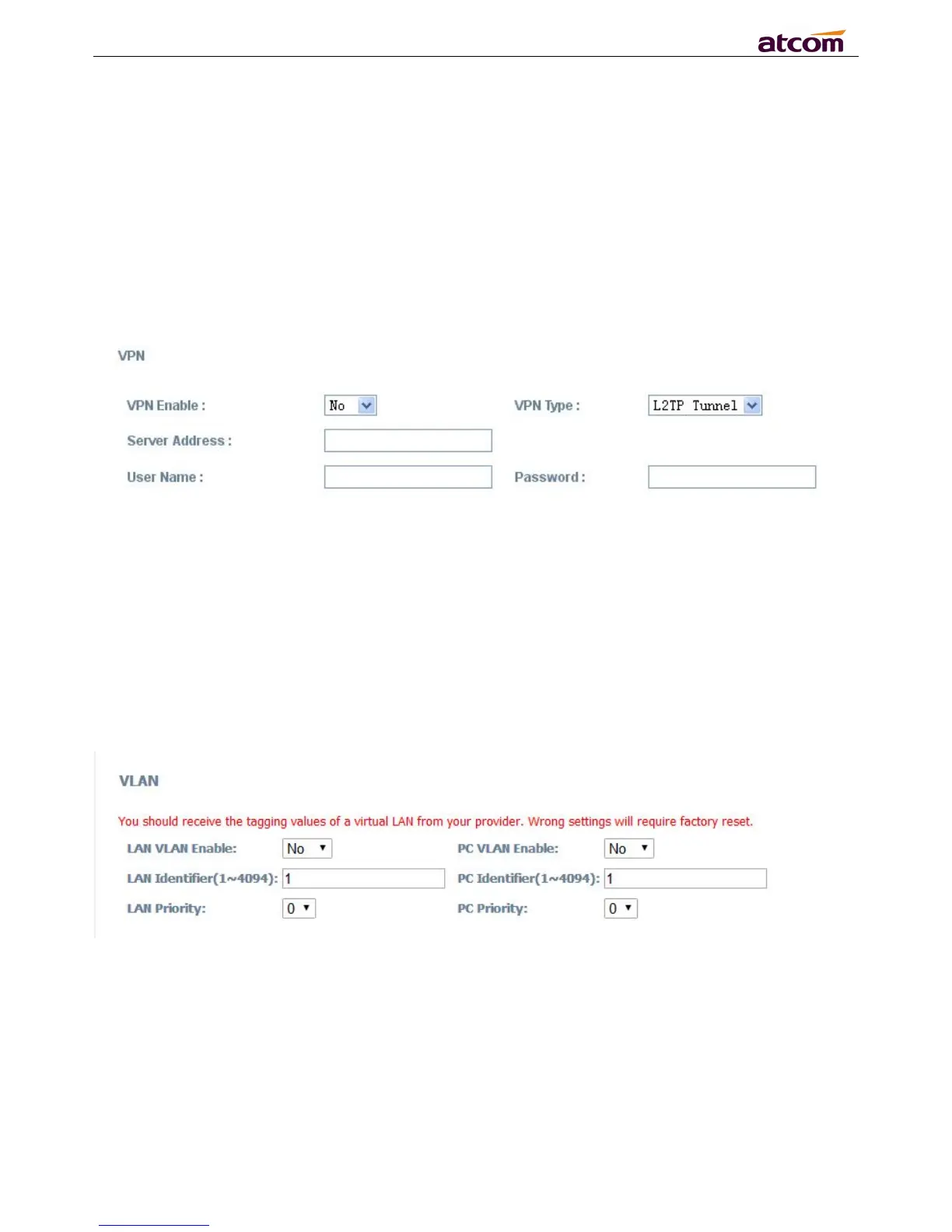

1. VPN Enable: Select “Yes” or “No” to enable or disable VPN
2. VPN Type: Only support L2TP VPN
3. Server address: VPN server address
4. Username: VPN account's username
5. Password: VPN account's password
After apply, the phone will be reboot. The VPN IP address will be shown on the System Status
webpage.
1. VLAN Enable: Select “Yes” or “No” to enable or disable VLAN
2. LAN VLAN Identifier(1..4094) : Assign VLAN ID for voice stream, range from 1 to 4094
3. LAN VLAN Priority: range from 0 to 7, 7 is the highest priority.
4. PC VLAN Identifier(1..4094) : Assign VLAN ID for data stream, range from 1 to 4094
5. PC VLAN Priority: range from 0 to 7, 7 is the highest priority.
