Atlas Copco CD 480 User Manual

Instruction Book
9829 2115 69 22

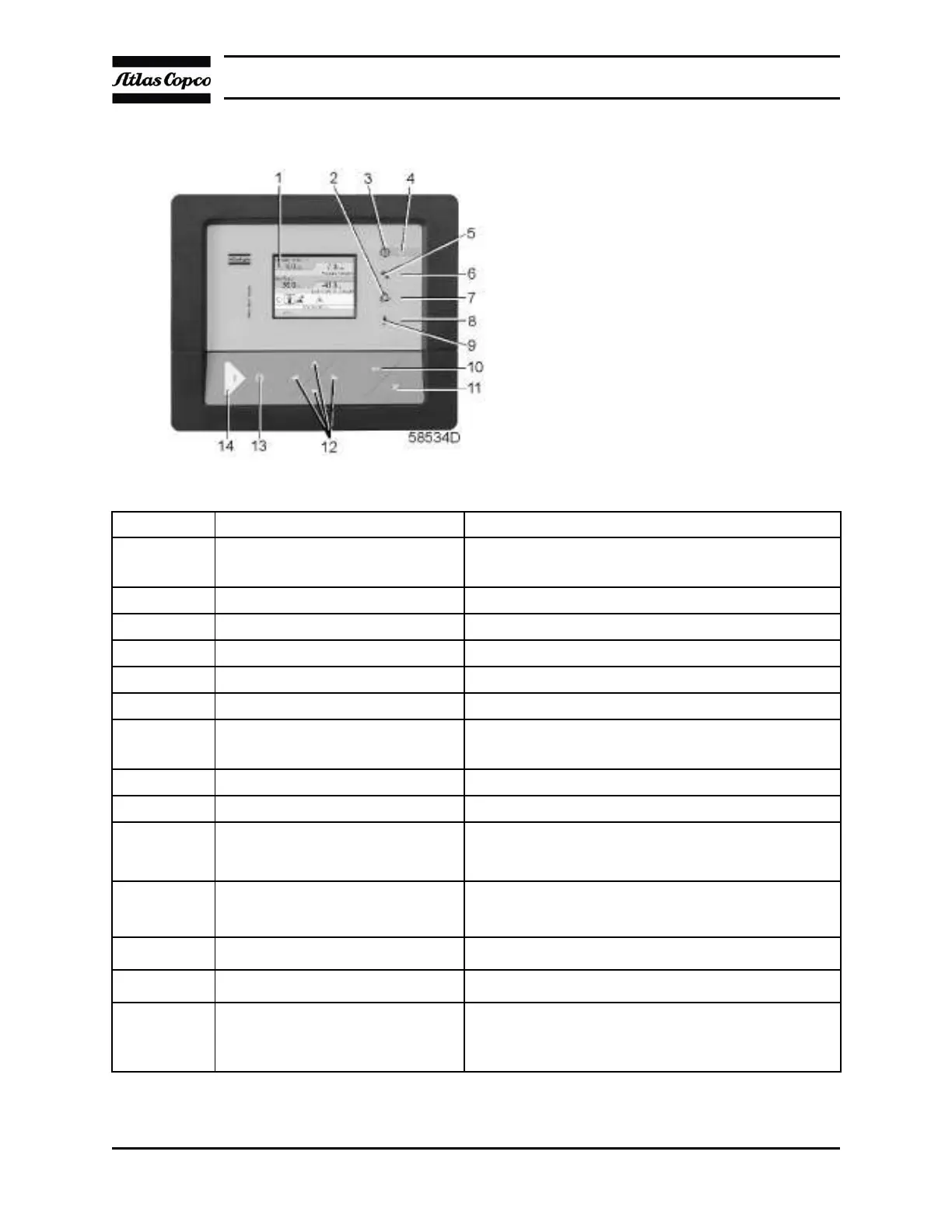

3.2 Control Panel
Elektronikon regulator
Parts and functions
Reference Designation Function
1
Display
Shows the dryer operating condition and a number of
icons to navigate through the menu.
2
Pictograph Automatic operation
3
Pictograph General alarm
4
General alarm LED Flashes if a shut-down warning condition exists.
5
Pictograph Service
6
Service LED Lights up if service is needed
7
Automatic operation LED
Indicates that the regulator is automatically controlling
the dryer.
8
Voltage on LED Indicates that the voltage is switched on.
9
Pictograph Voltage on
10
Enter key
Key to activate the selected menu or to modify the
selected parameter.
11
Escape key
To go to previous screen or to end the current
action
12
Scroll keys
Keys to scroll through the menu.
13
Stop button
Button to stop the dryer. LED (7) goes out.
14
Start button
Button to start the dryer. LED (7) lights up
indicating
t
hat the Elektronikon regulator is
operative.
3.3 Icons Used
