Atlas Copco QES 9-11 Kd ESF User Manual

- 15 -
2 Main parts
2.1 General description
The QES 9-14-20-30-40 and QES 11-16-25-35-50 are AC generators, built for continuous running at sites where no electricity is available or as stand-by in cases of
interruption of the mains. The QES 9-14-20-30-40 generators operate at 50 Hz, 400/380/415V 3ph and 230V 1ph. The QES 11-16-25-35-50 generators operate at 60 Hz,
208/220/380V 3ph and 240V 2ph. The QES 9-14-20-30-40 and QES 11-16-25-35-50 generators are driven by a fluid-cooled diesel engine, manufactured by KUBOTA.

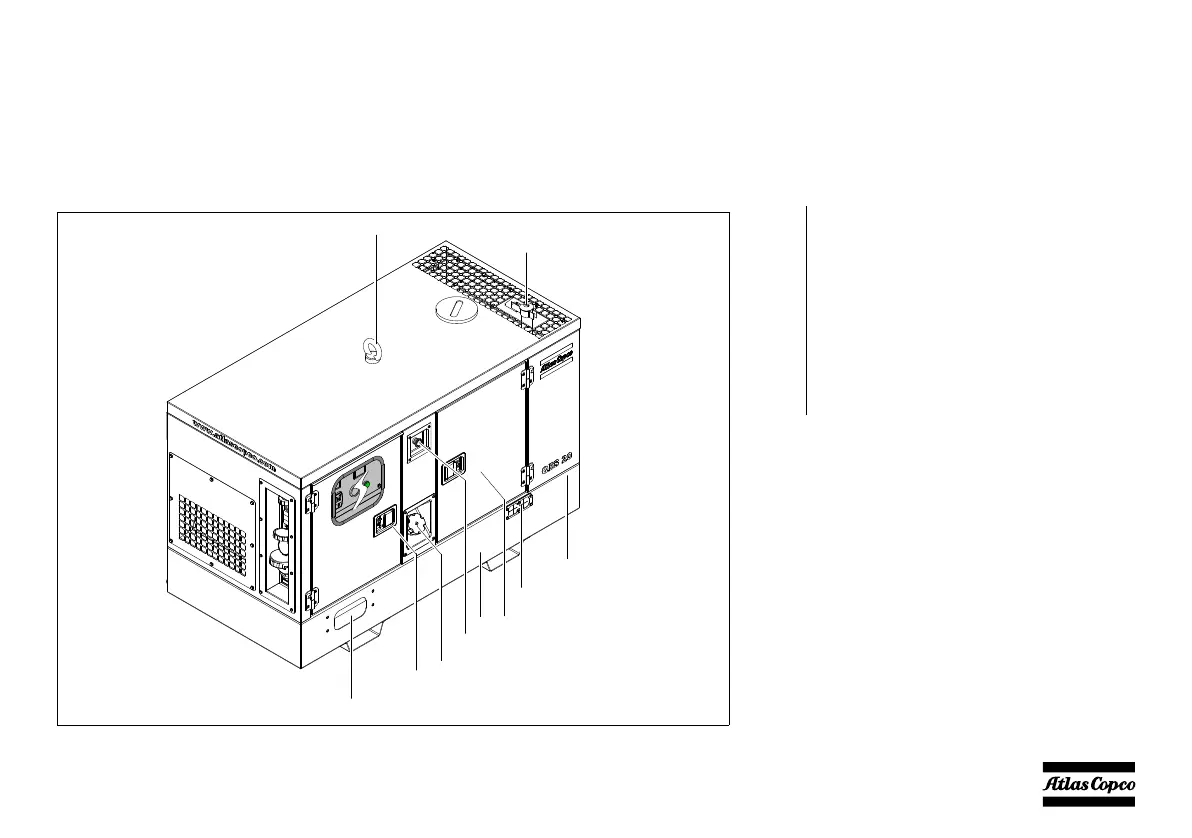

An overview of the main parts is given in the diagram below. Some parts of the unit might differ, depending on the version.
1 Lifting beam
2 Side doors
3 Engine exhaust
4 Data plate
5 Door, access to control and indicator panel
6 Galvanized frame with forklift slots
DH Drain and access hole
FCF Filler cap fuel
PCO Power cable output
S1 Emergency stop
3
1
4
2
6
5
PCO
DH
FCF
S1

Atlas Copco QES 9-11 Kd ESF Specifications

General

Brand	Atlas Copco
Model	QES 9-11 Kd ESF
Category	Portable Generator
Language	English
