2.4 Electrical features
The electrical features described in this chapter are
standard provided on this generator. For all other
electrical features, see chapter “Overview of the
electrical options” on page 62.
2.4.1 Emergency stop
S1 .......Emergency stop button
Push the button to stop the generator in case
of an emergency. When the button is
pressed, it must be unlocked, before the
generator can be restarted.

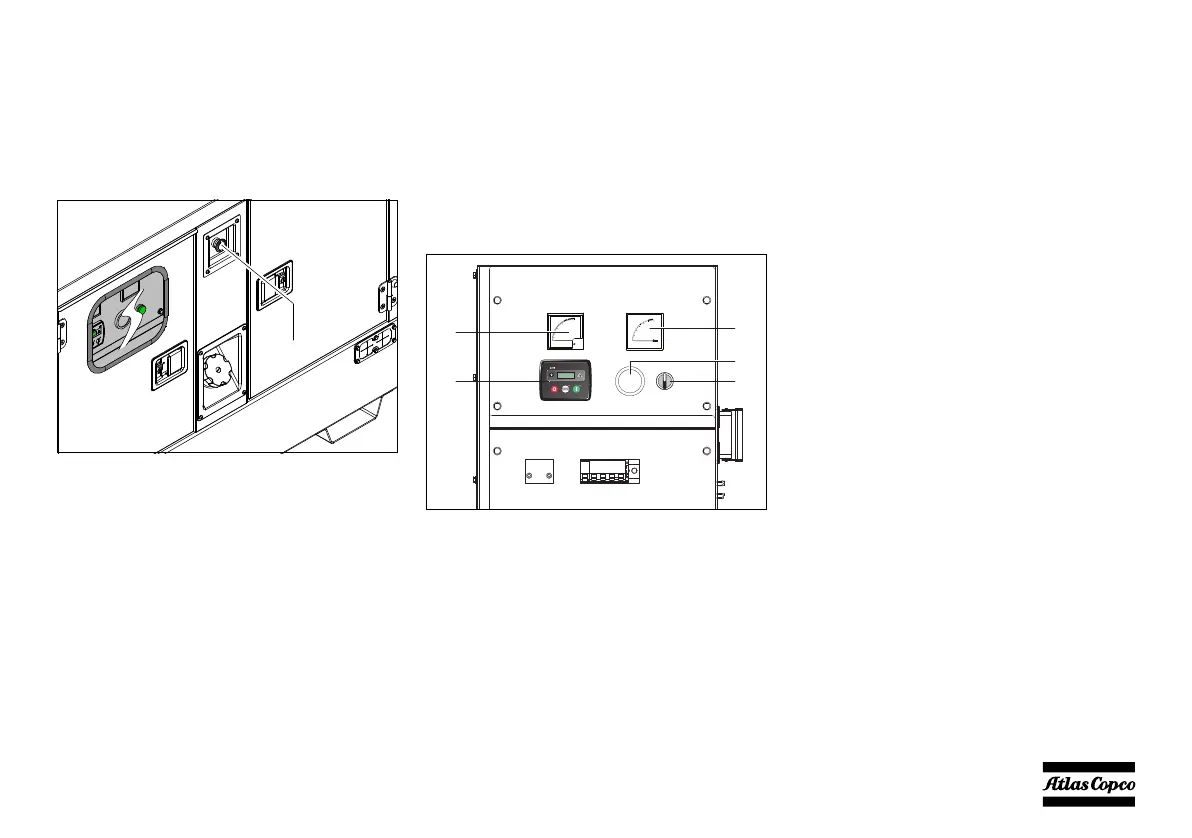

2.4.2 Qc1011™ control and indicator
panel
To operate the generator, the QES 9-14-20-30-40 /
QES 11-16-25-35-50 control panel contains a
Qc1011™ controller. The controller will carry out all
necessary tasks to control and protect the generator,
which allows operation in many different
applications.
General description Qc1011™ control panel
A1 .......Qc1011™ display
PA1 .....Ammeter
PV1 .....Voltmeter
P8........Fuel level gauge
S2........ON/OFF switch
Position O: No voltage is supplied to the
Qc1011™ module, the generator will not
start.
Position I: Voltage is supplied to the
Qc1011™ module, it is possible to start up
the generator.
S1
0
0
20
40
80
100
200
V
A
300
400
500
PA1
S2
P8
PV1
A1
