9.4 Overview of the mechanical
options
The following mechanical options are available:
– External fuel tank connection (with/without quick
couplings)
– Undercarriage (axle, towbar, towing eyes)
– Oil drain pump
– Galvanized skid with forklift slots
– Hot parts protection (CE compliance)
– Rotating parts protection (CE compliance)
– Special colour
9.5 Description of the
mechanical options
9.5.1 External fuel tank connection
(with/without quick couplings)
The option external fuel tank connection allows to
bypass the internal fuel tank and to connect an
external fuel tank to the unit.

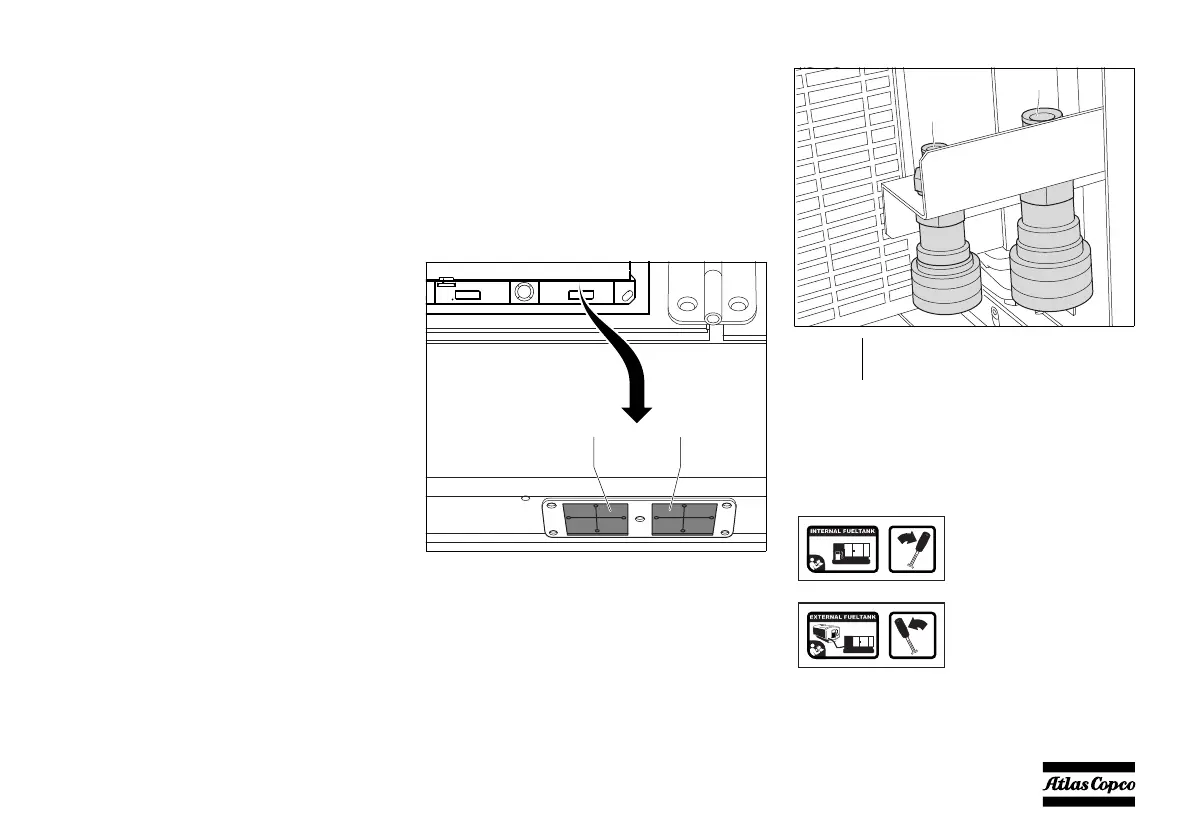

View outside
View inside
When using this option, make sure to connect the fuel
supply line as well as the fuel return line. Connections
to fuel lines ought to be air-tight to prevent air from
entering the fuel system. Turn the handle of 3-way
valve to desired condition.
EFT External fuel tank feed connection
EFR External fuel tank return connection
Position 1: Indicates that the
fuel supply line to the engine
is connected to the internal
fuel tank.
Position 2: Indicates that the
fuel supply line to the engine
is connected to the external
fuel tank.
