2.2 Markings
Markings provide instructions and information. They
also warn of hazards. For convenience and safety,
keep all markings in legible condition, replacing them
when damaged or missing. Replacement markings are
available from the factory.

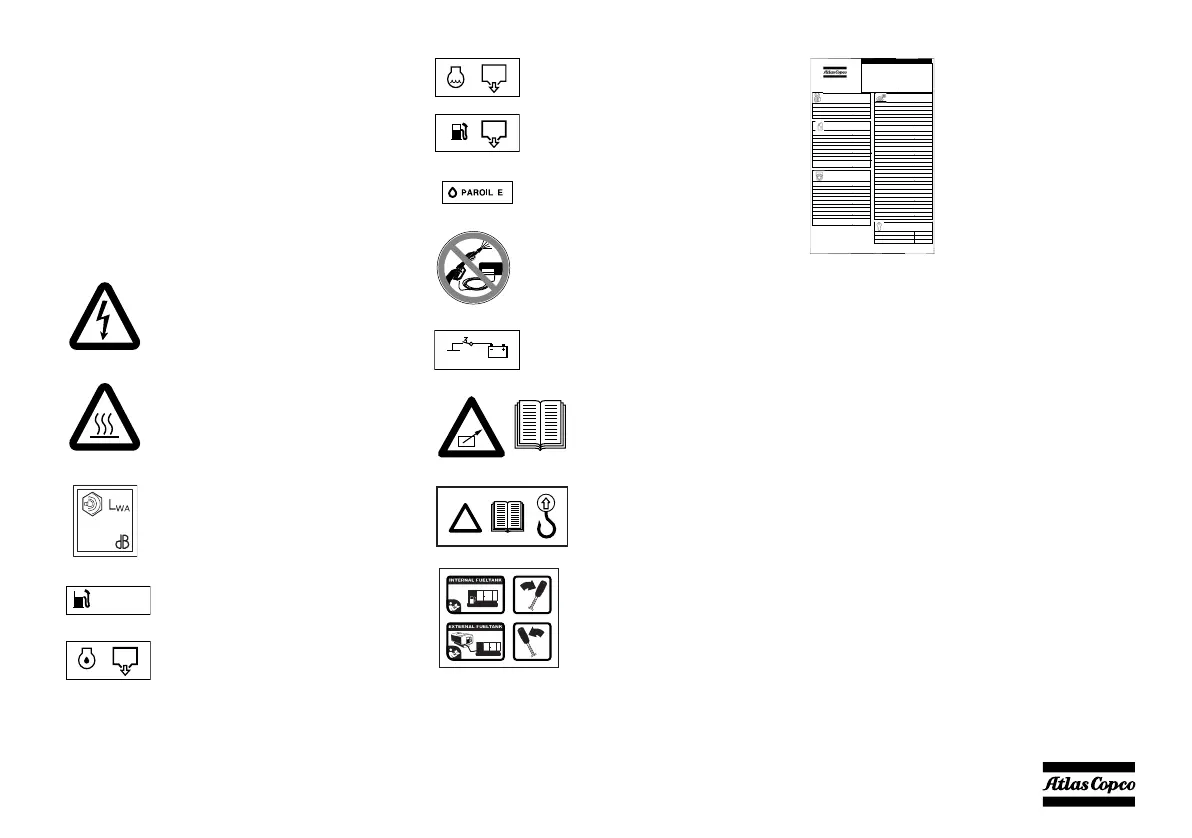

A brief description of all markings provided on the
generator is given hereafter. The precise location of
all markings can be found in the parts manual of this
generator.
Indicates the presence of electric shock
hazards. Enclosures marked with these
symbols should only be opened by
trained or instructed people.
Indicates that these parts can become
very hot during operation (e.g. engine,
cooler, etc.). Always make sure that
these parts are cooled down before
touching them.
Indicates the sound power level in
accordance with Directive 2000/14/
EC (expressed in dB (A)).
Indicates that the generator may be
refuelled with diesel fuel only.
Indicates the drain for the engine oil.
92
diesel
Indicates the drain for the coolant.
Indicates the drain plug for the engine
fuel.
Use PAROIL E only.
Indicates that the alternator should not
be cleaned with high pressurised
water.
Indicates the battery switch.
Indicates that the unit may
start automatically and that
the instruction book has to
be consulted prior to use.
Read the instruction manual
before using the lifting eye.
Indicates the 3-way valve.
Indicates the different
service packs, liquids and
critical parts. These parts
can be ordered to the
factory.
XXX X-XX
Engine xxxxxxxxxxx
Fuel tank capacity xxx l
Oil sump capacity x l
Cool. system capacity xx l
Hyd. oil capacity xx l
Alternator xxxxx
Tyre pressure
Service Kits
Description Order Nr
SERVICE KITS 500 H
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
xxxx xxxx xx
SERVICE KITS 1000 H
SERVICE KITS 2000 H
Fluids
Description Order Nr
PAROIL E 5L (1.1GAL) 1615 5953 00
PAROIL E 20L (4.4GAL) 1615 5954 00
PAROIL E 209L (45.98GAL) 1615 5955 00
PAROIL E XTRA 5L (1.1GAL) 1630 0135 00
PAROIL E XTRA 20L (4.4GAL) 16300136 00
PARCOOL EG 5L (1.1GAL) 1604 5308 00
PARCOOL EG 20L (4.4GAL) 1604 5307 01
PARCOOL EG CONCENTRATE
5L (1.1GAL)
1604 8159 00
Alternator Parts
Description Order Nr
AVR R250
AVR R438
DIODES BRIDGE
EXCITER STATOR
EXCITER ROTOR
BEARING
PMG KIT (WITHOUTAVR)
FAN
TERMINAL BLOCK
COUPLING DISCS
Engine Parts
Description Order Nr
AIR FILTER
SAFETY CARTRIDGE
BREATHER FILTER
FUEL FILTER
FUEL PRE-FILTER ELEMENT
FUEL FILTER BOWL (WATER
SEPARATOR)
FUEL TANK BREATHER FILTER
V-BELT
ROCKER COVER GASKET
COOLANT LEVEL SWITCH
COOLANT TEMPERATURE
SWITCH
OIL FILL CAP
CHARGING ALTERNATOR
STARTER MOTOR
WATER PUMP
WATER PUMP GASKET
TURBO
FUEL SOLENOID
FUEL LIFT PUMP
DIPSTICK
MAGNETIC PICK-UP (SPEED
SENSOR)
THERMOSTATIC VALVE
FAN
RADIATOR
RADIATOR CAP
RADIATOR TOP HOSE
RADIATOR BOTTOM HOSE
RADIATOR SUPPORT DAMPER
PRE-HEAT PLUGS
Keys
Description Order Nr
FUEL TANK CAP KEYS 2914 9500 00
DOOR KEYS 1615 7271 00
