Version 6.0 15 February 2010
Installation Manual 2. Installing the Device
2.3 Mounting the Device
The device can be mounted in one of the following ways:
Placed on a desk top (refer to 'Desktop Mounting' on page 15)
Installed in a
standard 19-inch rack (refer to 'Installing the Device in a 19-inch Rack' on
page 16)
2.3.1 Desktop Mounting
The device can be mounted on a desktop by attaching the four anti-slide bumpers
(supplied) to the underside of the device. Once you have attached these bumpers, simply
place it on a desktop in the desired position.

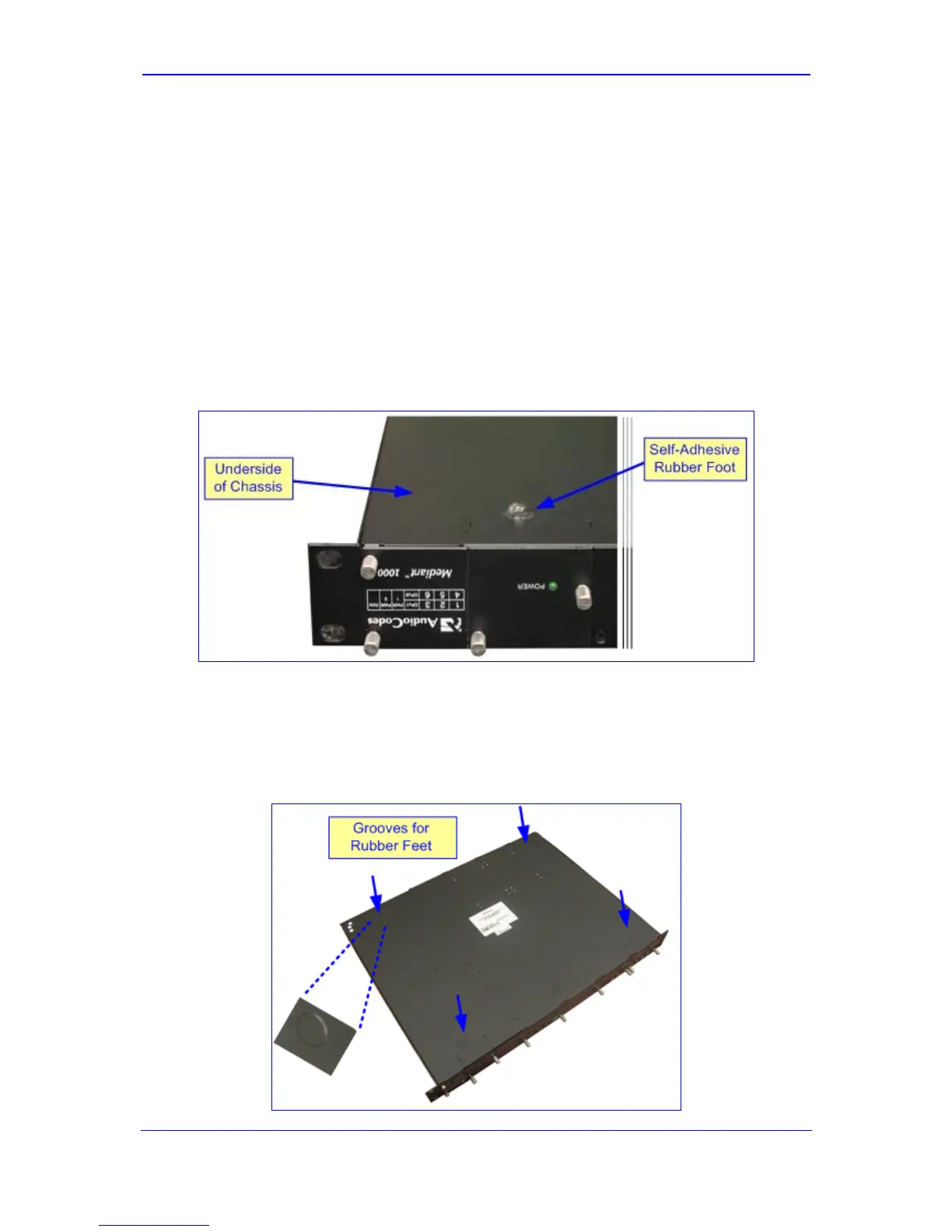

Figure 2-3: Attached Rubber Foot on Underside of Chassis
¾ To attach the anti-slide rubber bumpers to the device:
1. Flip the device over so that its underside faces up.
2. Locate the four anti-slide grooves on the underside - one on each of the four corners.
Figure 2-4: Location of Grooves for Rubber Feet
