Installation Manual 34 Document #: LTRT-83506
Mediant 1000
3. With your fingertips, grasp the steel frame of the air filter and separate it from the Fan
Tray module; you should be able to remove it relatively easily. The figure below shows
the air filter extracted from the Fan Tray module.

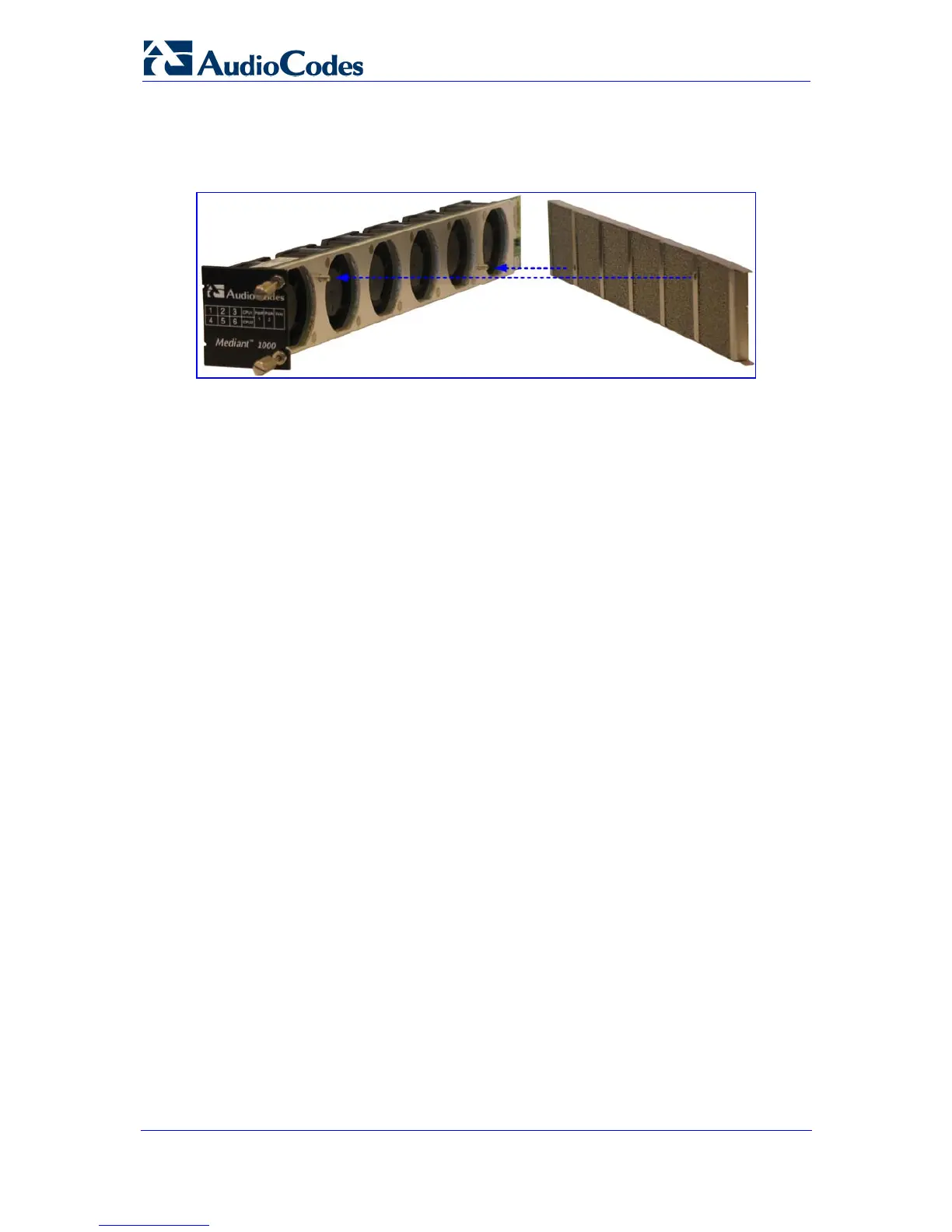

Figure 2-21: Fan Tray with Filter Removed
4. Take one of the following steps:
• If you are cleaning the filter, use a vacuum cleaner (set to light suction) to remove
dust particles from the filter.
• If you are replacing the filter, discard the old air filter and replace it with an air filter
purchased from AudioCodes.
5. Attach the (new or cleaned) air filter to the Fan Tray module; position the two holes on
the filter over the pins on the Fan Tray.
6. Insert the Fan Tray module into its slot, until the front panel is flush with the chassis
plate.
7. Fasten the two screws on the top right-hand corner and the bottom right-hand corner
of the front panel of the Fan Tray module.
