Automatic Systems FirstLane 960 User Manual

The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the
use of the products or the execution of the project to which it refers, and from communicating it to third parties without Automatic Systems’ prior written agreement.
Document subject to change without notice.
FirstLane-MT-EN
p. 14 / 48

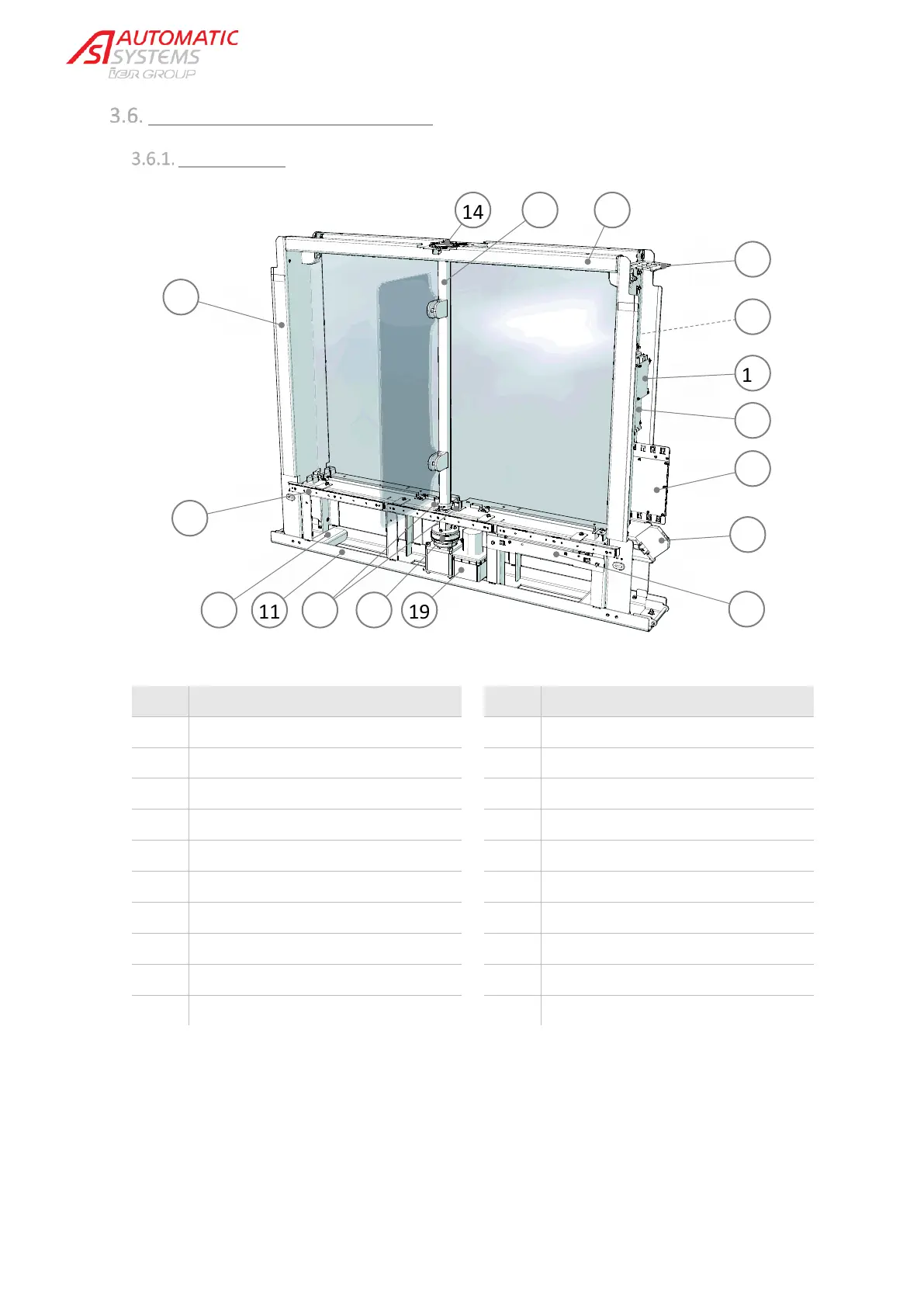

LOCATION OF INTERNAL COMPONENTS
Right end unit
Ref.: Designation: Ref.: Designation:
11 Base frame 21 Motion transmission shaft
12 Frame upright 22 Fixing clamp (2x)
13 Frame top rail 23 24 VDC 14 A power supply
14 Bracket 24 DIRAS detection cell (3x)
15 CPU circuit board AS 1190 25 Brake (Available as option for ASC)
16 I/O circuit board AS 1612 26 Reader support
17 Motor control circuit board AS 1613 27 Identification label
18 Main circuit breaker
19 Geared motor
20 End stops (2x)
12
14
18
17
19
16
11 22 20
23
24
13
15
21
25
26
27
