Automatic Systems FirstLane 960 User Manual

The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the
use of the products or the execution of the project to which it refers, and from communicating it to third parties without Automatic Systems’ prior written agreement.
Document subject to change without notice.
FirstLane-MT-EN
p. 41 / 48

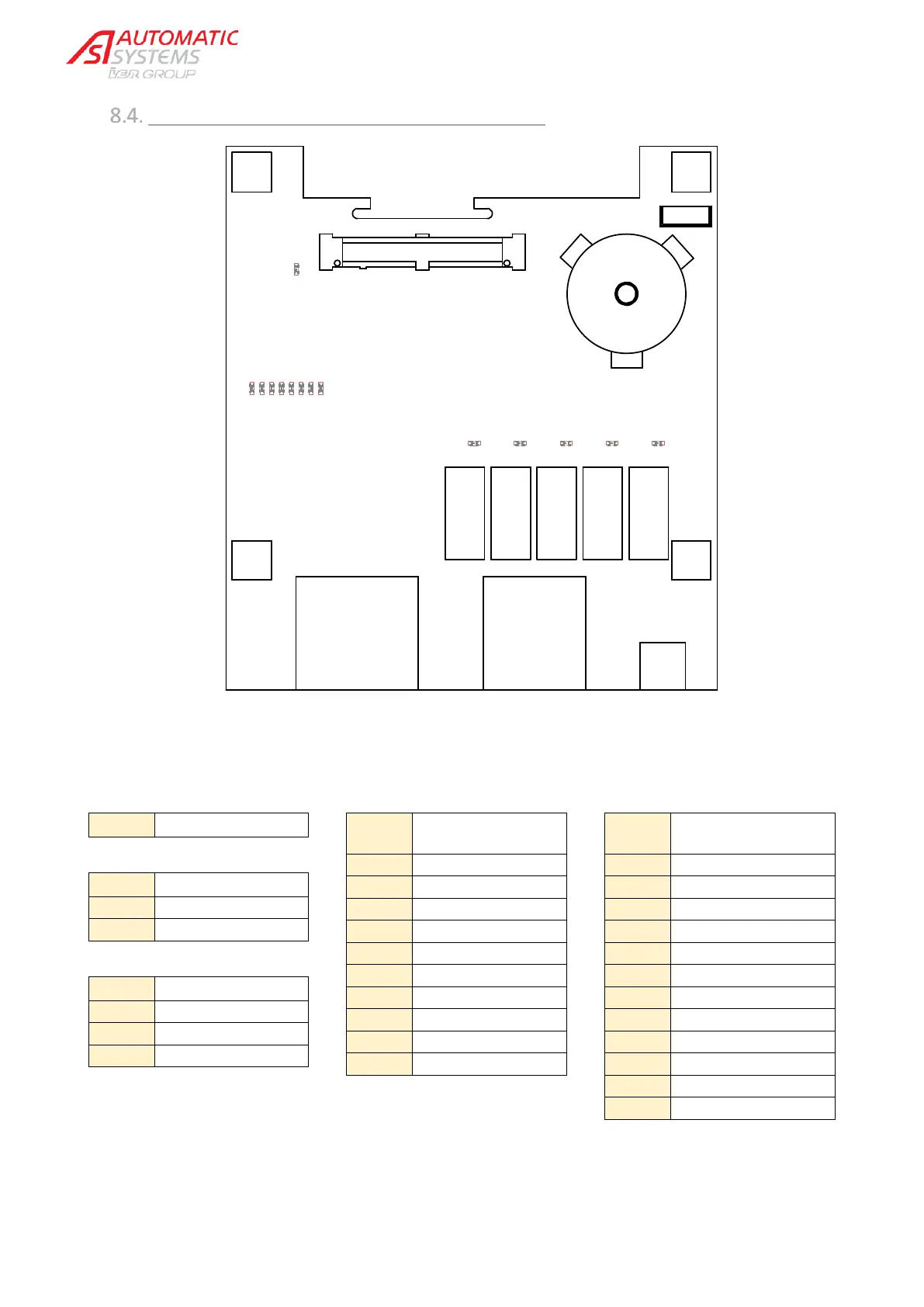

CUSTOMER INPUT/OUTPUT CIRCUIT BOARD AS1612
BZ1: buzzer with adjustable volume and tone via the Maintenance Interface
CN1 CPU Interface
CN2 24 VDC
1 +24 VDC
2 GND
CN3 24 VDC
1 GND
2 Not used
3 +24 VDC
CN4
Customer Relay
Connector
1 NO relay 1
2 NO relay 2
3 NO relay 3
4 NO relay 4
5 NO relay 5
6 COM relay 1
7 COM relay 2
8 COM relay 3
9 COM relay 4
10 COM relay 5
CN5
Customer Input
Connector
1 +24 VDC
2 IN 1
3 IN 2
4 IN 3
5 IN 4
6 GND
7 +24 VDC
8 IN 5
9 IN 6
10 IN 7
11 IN 8
12 GND
1
1
RL1
RL
2
RL3 RL4
R
L5
CN1
CN3
CN2
CN4 CN5
AS1612R01
LD1
LD2 LD3 LD4 LD5 LD6
BZ1
LD7
LD8
LD9
LD11
LD13
LD10
LD12
LD14
