Tilt the panel towards you and pull it upwards to remove it completely.
REMOVING THE MOBILE OBSTACLE
To replace an obstacle, you must first open the extension
( Ch.7.2. ) and disconnect the power supply of the gate ( Ch.7.4. ).
For aesthetic reasons, the fastening screws of the glass clamps that hold the mobile
obstacle on the transmission shaft are located on the side.

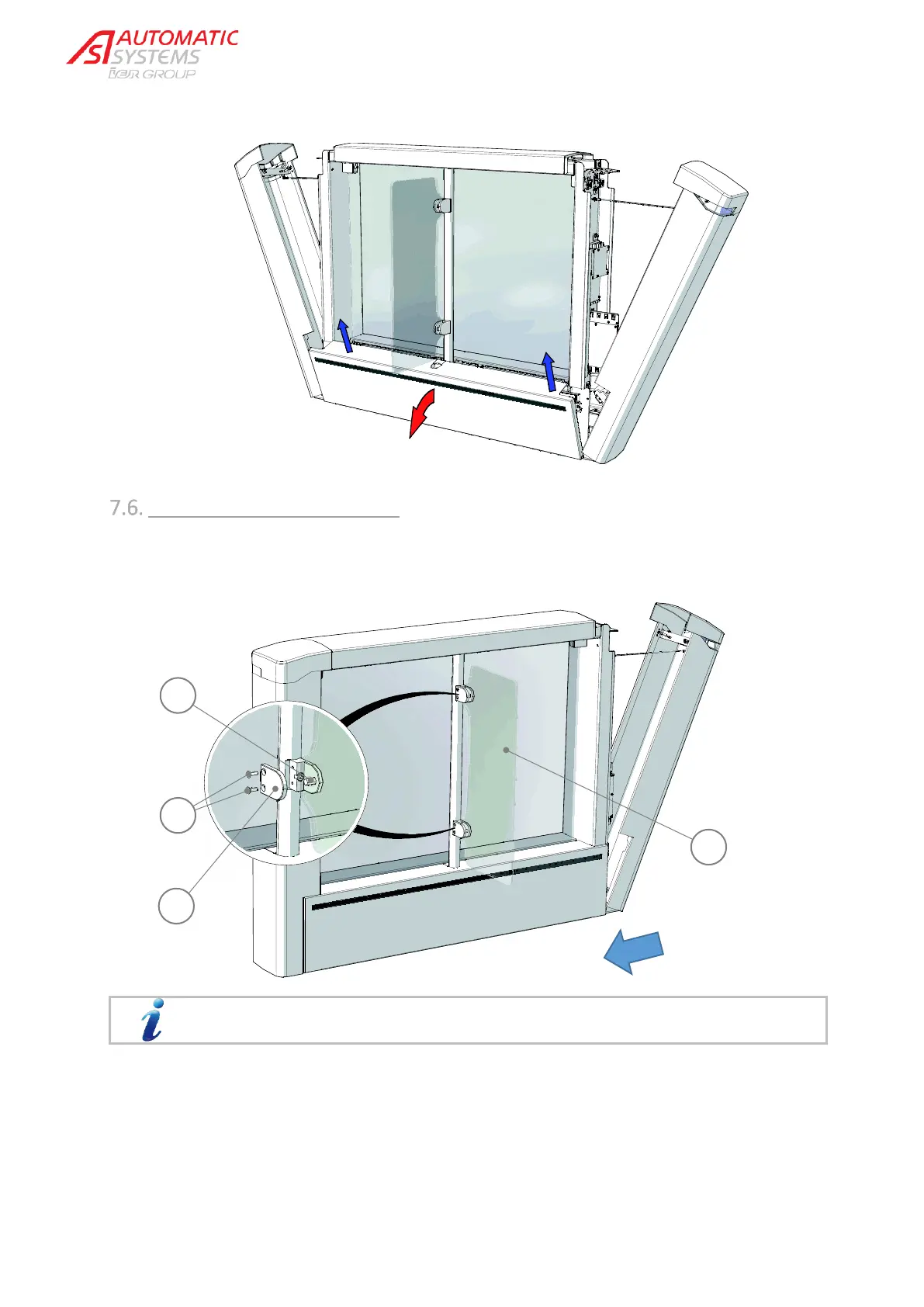

While holding the obstacle (6) so that it cannot fall, remove the 4 screws (6a) that hold the bases of the 2
glass clamps (6b). Take care not to lose the bushes (6c).
Place the mobile obstacle in a safe location.
6
6a
6b
6c
A
