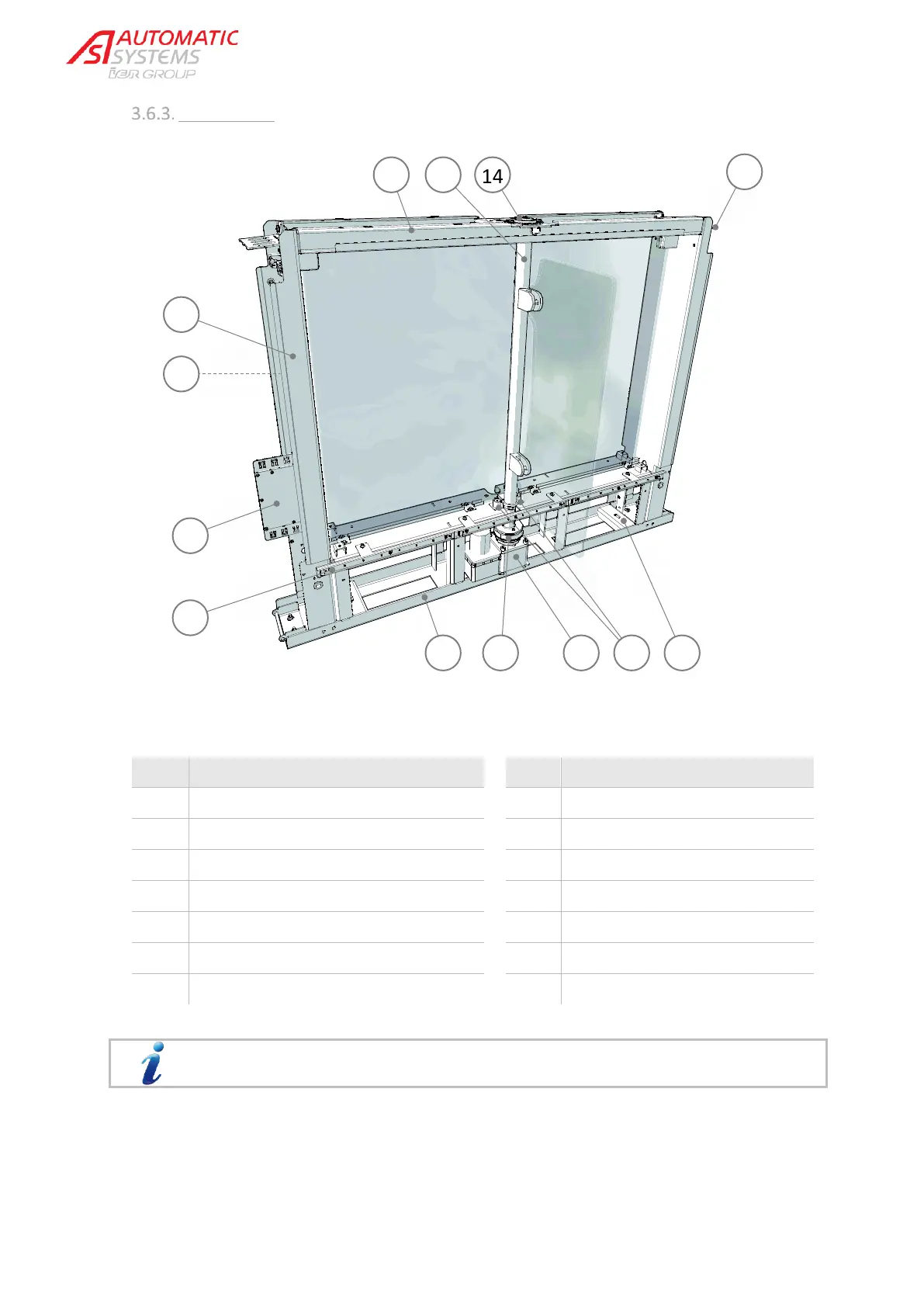

Left end unit
Ref.: Designation: Ref.: Designation:
11 Base frame 21 Motion transmission shaft
12 Frame upright 22 Fixing clamp (2x)
13 Frame top rail 24 DIRAS detection cell (6x)
14 Bracket 25 Brake (Available as option for ASC)
17 Motor control circuit board AS 1613 (2x) 26 Reader support (2x)
19 Geared motor (2x) 27 Identification label
20 End stops (4x)
The 24 VDC 14 A power supply delivers the power needed for operation of a complete
lane.
12
14
22 19 11 20
17
13 21
24
25
26
27
