Autonics CT6Y-2P series User Manual

6 Basic Operations (Counter/Timer/Communication)
© Copyright Reserved Autonics Co., Ltd. 39

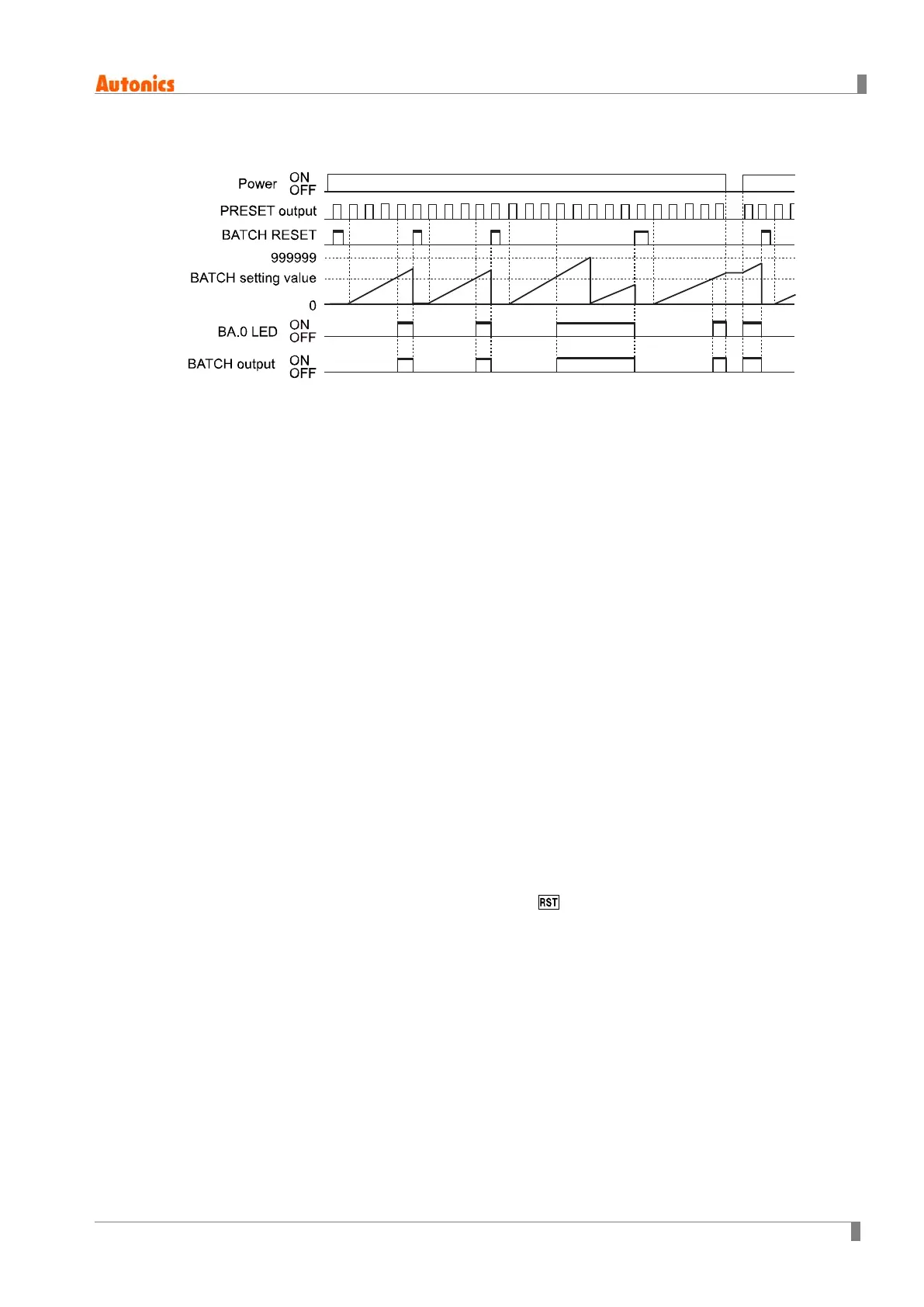

6.2.1 BATCH counter operation
6.2.2 BATCH counting operation
 BATCH counting value is increasing until BATCH reset signal applied. BATCH counting
value will be circulated when it is over 999999.
 BATCH counting operation in Counter: Counts the number of reaching setting value.
 BATCH counting operation in Timer: Counts the number of reaching setting time. (in case of
'FLK' output mode, it counts the number of reaching T.off setting time and T.on setting time.)
6.2.3 BATCH output operation
 If input signal is applied while changing BATCH setting value, counting operation and output
control will be performed.
 If BATCH count value equals to BATCH setting value, BATCH output will be ON and
maintain ON status until BATCH reset signal is applied.
 When the power is cut off then resupplied in status of BATCH output is ON, BATCH output
maintains ON status until BATCH reset signal is applied.
※In case of from ‘BATCH setting value＞BATCH counting value’ to ‘BATCH setting
value≤BATCH counting value’ and returning to RUN mode, BATCH output turns ON.
※In case of from turning ON BATCH output to ‘BATCH setting value＞BATCH counting value’,
BATCH output maintains ON until BATCH RESET input applied.
6.2.4 BATCH RESET input
 In BATCH counter indication mode, press the key or applying the signal to BATCH
reset terminal on the back side panel, BATCH counting value will be reset.
When selecting voltage input (PNP), short terminals 10 and 14, or when selecting
no-voltage input (NPN), short terminals 11 and 14 to reset.
 When BATCH reset is applied, BATCH counting value maintains at 0 and BATCH output
maintains in the OFF status.
