7.5 Output operation for other conditions
7.5.1 Start point
 In case of counter operation, set start point [STRT] to count from the set value.
 It is not available for DN, DN-1, DN-2 input mode for counter.
 When RESET input is applied, the present value is reset as start point value.
 In case of C, R, P, Q output mode, it counts up and the present reset as start point value.
7.5.2 When start point value is larger than setting value,
(UP, UP-1, UP-2, UD-A, UD-B, UD-C mode)
(1) PRESET2 > Start Point > PRESET1
 UP, UP-1, UP-2 mode: Output of OUT1 does not execute.
 When the present value counts as PRESET 2, output of OUT2 turns ON.
 UD-A, UD-B, UD-C mode: When the present value counts down as PRESET 1, output
of OUT1 turns ON.

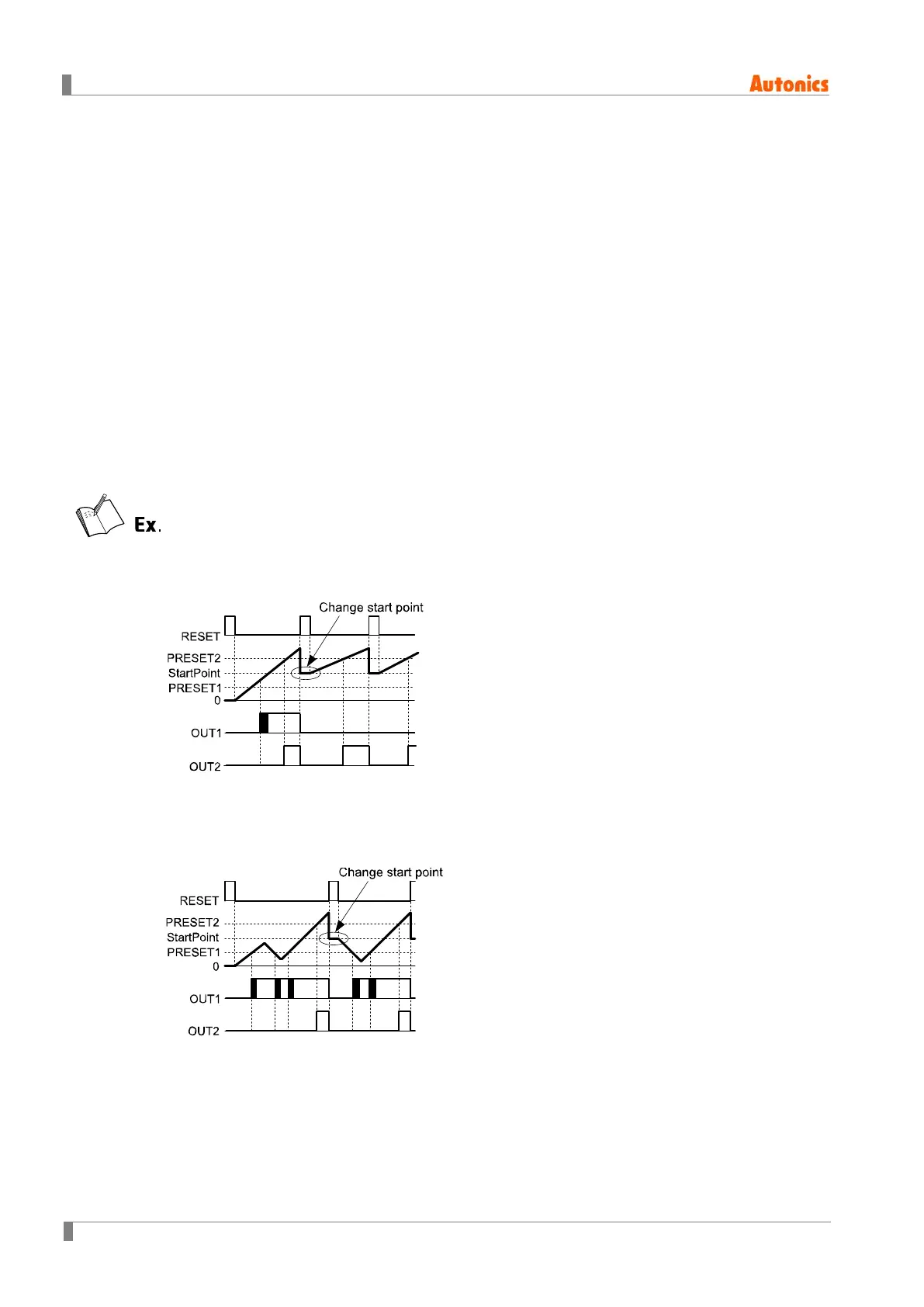

※Output mode: F
Input mode: UP, UP-1, UP-2
※Output mode: F
Input mode: UD-A, UD-B, UD-C
(2) PRESET2 > Start Point = PRESET1
In case of UP, UP-1, UP-2, UD-A, UD-B, UD-C mode, output of OUT1 turns ON when
RESET OFF.
