7 Counter Mode
© Copyright Reserved Autonics Co., Ltd. 43
7 Counter Mode

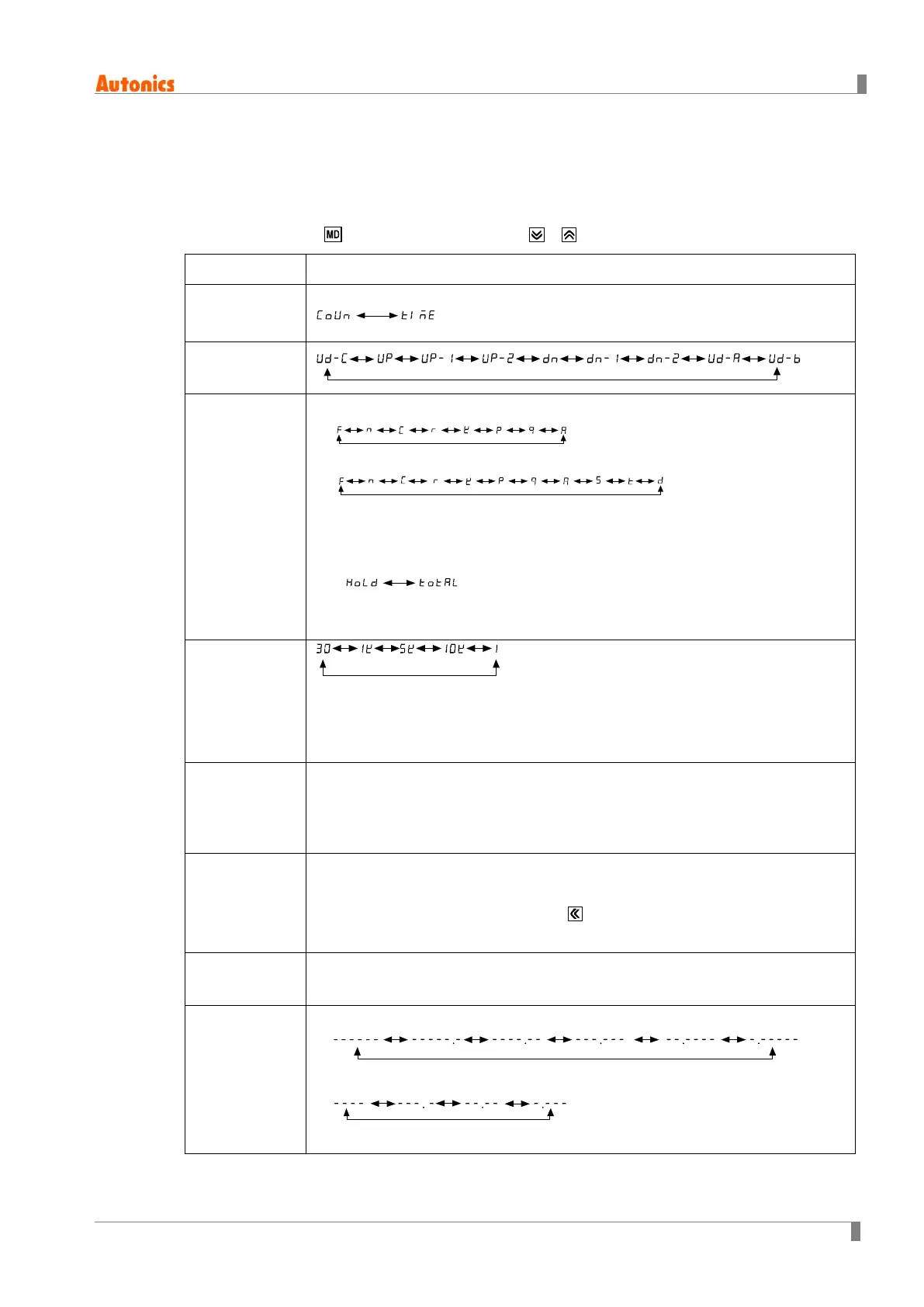

7.1 Parameter Setting
( key: Moves parameters, , key: changes parameter setting value)
Parameter Parameter setting value
Counter/Timer
[C-T]
※COUN: Counter
TIME: Timer
Input mode
[IN]
Output mode
[OUtM]
● Input mode is UP, UP-1, UP-2 or DN, DN-1, DN-2,
● Input mode is UD-A, UD-B, UD-C,
※ If max. counting speed is 5kcps or 10kcps, and output mode is D,
max. counting speed is automatically changed as 30cps, factory default.
Indication mode
[DSpM]
● In case of indicator model,
※In case of the indicator type, indicate mode selection [DSP. M] is displayed.
※It is the added function to set the setting value when selecting HOLD.
Max. counting
speed [
CPS
]
※Max. counting speed is when duty ratio of INA or INB input signal is 1:1.
It is applied for INA, or INB input as same.
※When output mode is D, set max. counting speed one among 1cps, 30cps, or
1kcps.
OUT2 output
time
※1
[OUT2]
※Set one-shot output time of OUT2.
※Setting range: 0.01 to 99.99 sec
※
When output mode is F, N, S, T, D, OUT2 does not appear.
(fixed as HOLD)
OUT1 output
time
※1
[
OUT1
]
※Set one-shot output time of OUT1.
※Setting range: 0.01 to 99.99 sec, Hold
※When 1st digit is flashing, press the key once and HOLD appears.
※When output mode is S, T, D, OUT1 does not appear. (fixed as HOLD)
OUT output
time
※1
[OUtT]
※Setting range: 0.01 to 99.99 sec
※When output mode is F, N, S, T, D, OUtT does not appear. (fixed as HOLD)
Decimal point
※2
[DP]
● 6-digit model
● 4-digit model
※Decimal point is applied to counting value and setting value.
