MODULIZER PRO DSP1224P

+ Turn back the volume on your amplifier to protect your equipment against damage. All de-

vices you wish to interconnect should remain switched off until they are wired correctly.

Lets suppose you wish to use the MODULIZERPRO in a live application, interfaced with the f.o.h. mixer, to

enhance the guitar sound with a subtle chorus effect.

Connect the MODULIZERPRO to the aux bus of your mixing console (fig. 3.1). Connect the units to the

mains and adapt the operating level(s) if necessary. Switch on the MODULIZERPRO and set the levels

appropriately (see 3.1). Press the Mix combination to make sure that the unit is set to Mix-Extern mode.

Press the EFFECT key and use the jog wheel to select and thus activate the chorus effect (#19). Slowly

turn up the aux bus level until the effect portion added to the guitar signal suits your needs. Subsequently,

you can make all necessary fine-adjustments. We assume that you wish to edit the modulation frequency

of the chorus effect: press the VARIATION key and set the modulation frequency with the jog wheel. To set

the modulation delay, press the EDIT-A key, while the modulation depth of the chorus effect can be set by

pressing the EDIT-B key. Having edited all parameters as desired, you can save the edits to the original (or

any other) preset.

3.3 Using the MODULIZERPRO in the insert path

Basically, you can also insert the MODULIZERPRO in a channel, master output or subgroup of your mixing

console. Use a dedicated insert cable. Inserting the MODULIZERPRO in a single channel will be useful only

if you wish to process a specific signal (e.g. vocals) with the MODULIZERPRO, or if any other insert facilities

of your mixing console are already in use.

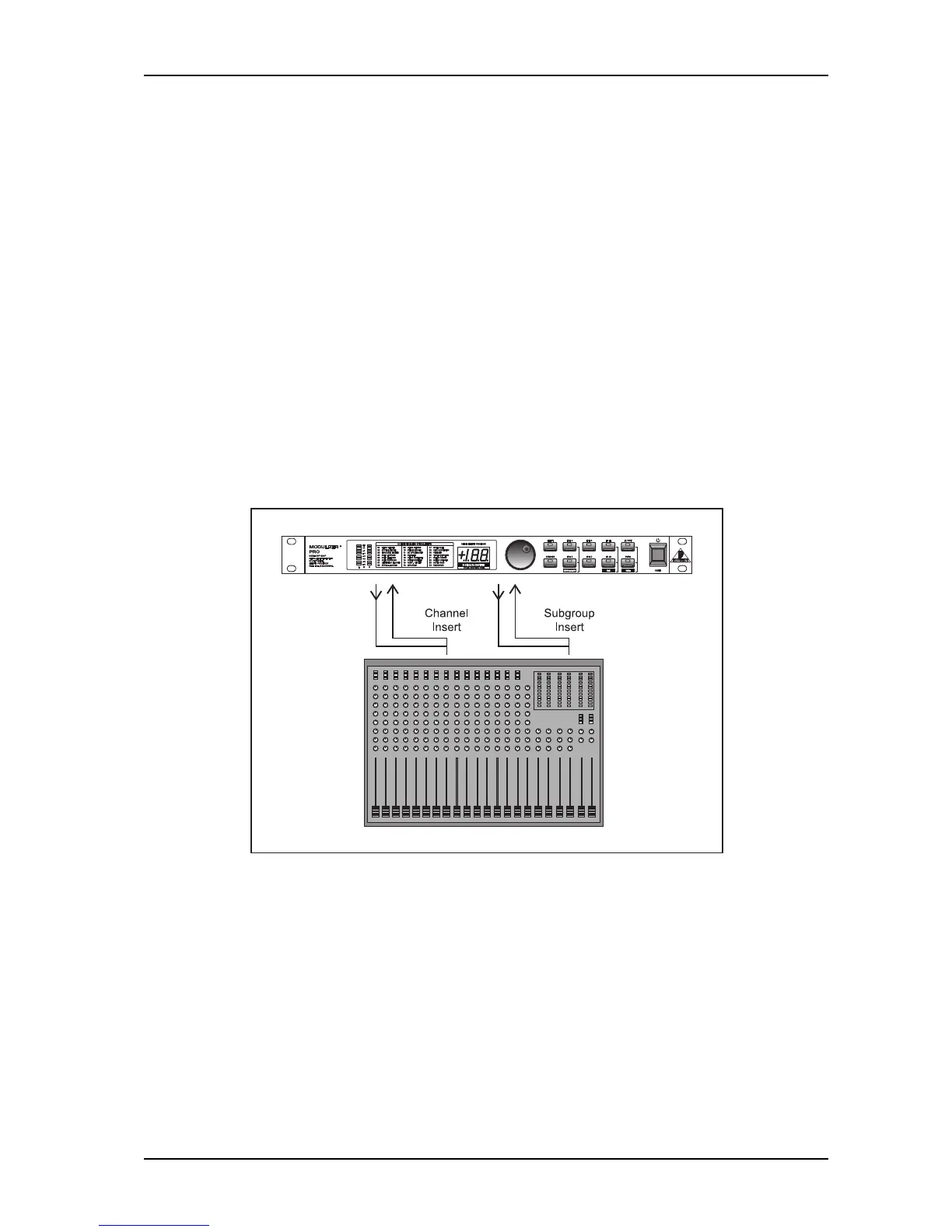

Fig. 3.2: Wiring the MODULIZERPRO in the insert path

With certain special effects, for example the limiter, you should insert the MODULIZERPRO rather than

connecting it to the aux bus. Use a dedicated insert cable to connect the left audio channel with a channel

insert on your mixing console (fig. 3.2).

3.4 Using the MODULIZERPRO as an effects device for instruments

With its extensive MIDI implementation the MODULIZERPRO can also be used, for instance, as a multi-

effects device in a guitar rack. Of course, you can wire it both in stereo and mono.

3. APPLICATIONS
