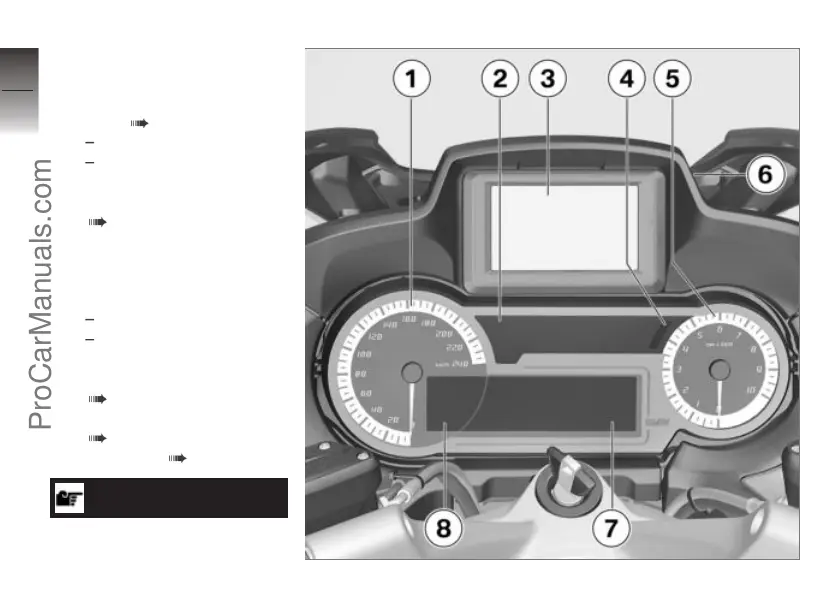

Instrument cluster
1 Speedometer
2 Warning and indicator
lights ( 22)
3 with navigation system
OA
with preparation for navi-
gation system
OE
Navigation system
( 151)
4 Ambient light sensor (for
brightness adjustment of
instrument lighting)
5 Tachometer
6 with navigation system
OA
with preparation for navi-
gation system
OE
Release for navigation slot
( 151)
7 Multifunction display
( 23)
8 Tripmeter ( 59)
NOTICE
The brightness of the warning
lights and telltale lights, the
