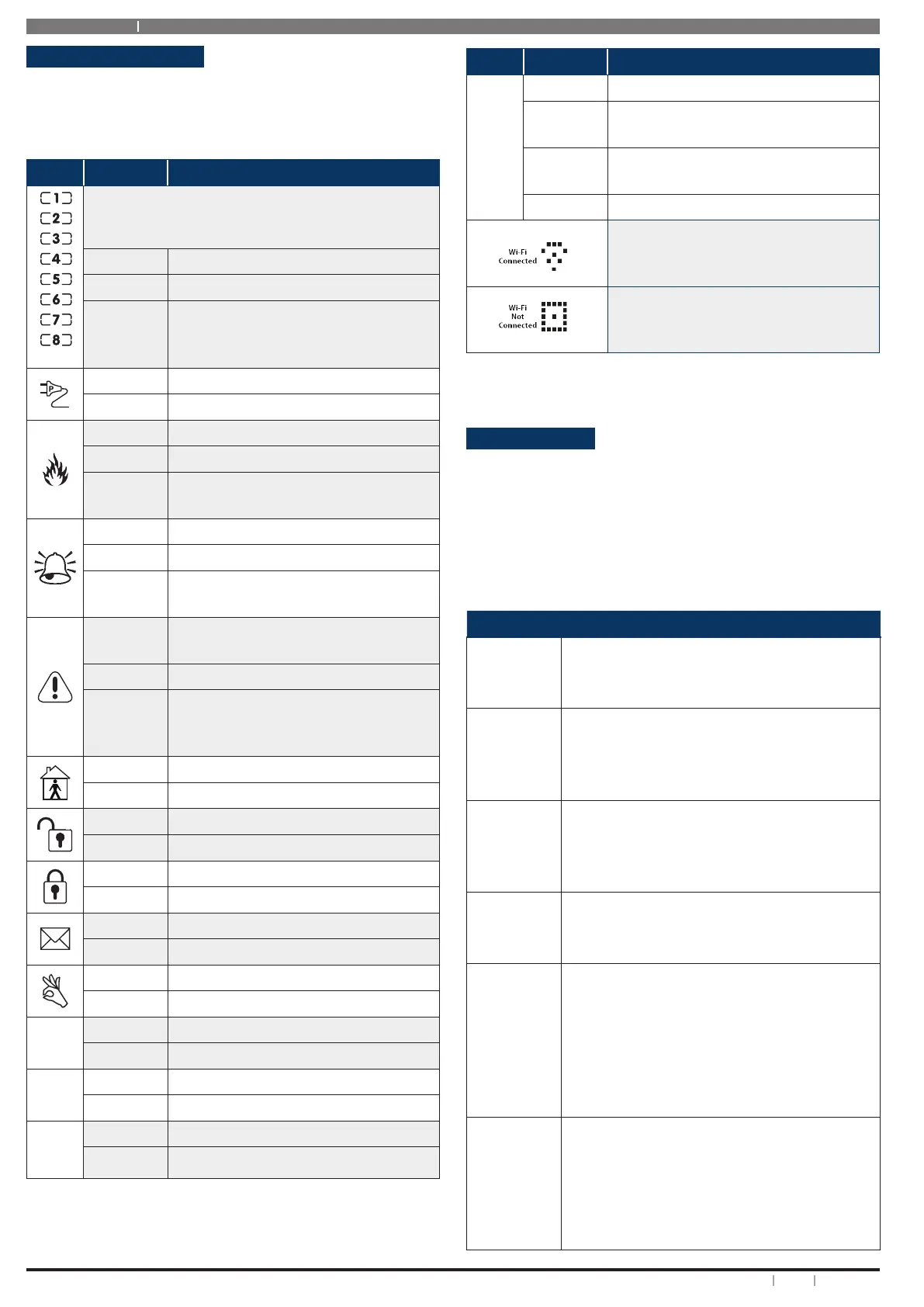

Status Icons / LED’s
The following table describes the function of each of
the status icons and indicator lights. Some keypads and
readers also include a blue indicator which is used when
controlling doors or user access.
Icon Status Meaning
The keypad can display which areas (1 – 8) are
turned on or off via the Area Icon Indicators. This
option needs to be enbled by your installer,
On The area is turned All On or Part On
Off The area is turned Off
Flashing
Fast
The area has an alarm
On System power is normal
Flashing System power is missing
Flashing A fire alarm is active
Off No fire alarm
On
Fire alarm in memory (Turn the area
All On and Off to clear).
Flashing A burglary alarm is active
Off No burglary alarm
On
Burglary alarm in memory (Turn the
area All On and Off to clear).
On
The existing service or trouble
condition has been acknowledged
Off No service or trouble conditions exist
Flashing
A service or trouble condition is
present that has not been acknowl-
edged
On The area is turned Part On
Off The area is not turned Part On
On The area is turned off.
Off The area is turned All On or Part On
On The area is turned All On
Off The area is turned Off
On You have mail waiting to be read
Off No Mail
On Area is ready to turn All On /Part On
Off Not ready, Zone Open
Red
LED
On All On or Part On
Flashing Alarm
Green
LED
On Area is not All On
Flashing Zone is Faulted
Red &
Green
LED
Flashing Installer programming mode is active
Off User Programming Mode is Active
Icon Status Meaning
Blue
LED
On Door Locked
Fast
Flash
Door Unlocked
2
Flashes
Door Unlocked by TimeZone
Off Door Assignment not programmed
The WiFi enabled keypad or module
has successfully connected to your
local WiFi network.
The WiFi enabled keypad or module
is not connected to your local WiFi
network.
Table 3: Status ICONs, LED Indicator’s and Their Meanings
Keypad Tones
Your keypad emits several distinct tones and displays text
to alert you to system events. Additional bells or sirens
may also be connected to your system. Bells or sirens
mounted on the exterior of your premises alert neighbours
to emergencies and provide an audible guide for police
and fire fighters.
Type
Meaning
Fire
Alarm
Tone
When a fire zone sounds an alarm, the
keypad will sound 3 seconds on and 2
seconds off (repeat).
Burglary
Alarm
Tone
When a burglary zone activates while your
system is turned on, your keypad emits a
continuous siren tone. It sounds for the
time set by your security company.
Trouble
Tone
When a system component is not
functioning properly, your keypad sounds
4 fast short beeps followed by a 5 second
pause (repeat).
Key
Press
Tone
Pressing any key on the keypad sounds one
short beep, indicating that the key press is
accepted.
Entry
Delay
Tone
When you enter the premises through
a zone programmed for entry delay, the
keypad sound a Hi/Low tone to remind you
to turn off the area. If the area is not turned
off before the entry delay expires, an alarm
condition will sound and a report may be
sent to your alarm company.
Exit
Delay
Tone
After you turn an area All On, the keypad will
sound 1 short beep every second. During
the last 10 seconds fast short beeps will be
heard. If you don’t exit before the delay time
expires and an exit delay door is faulted, an
alarm occurs.
