6
PACKAGING PART LIST
Model 2150 Amplifier
Number
Number
Bose
Part
Number
- Bag, Plastic, 24x30
Pack amp in bag for shipment
8300.0024 1
- Bag, Poly, 10x16x4mil 8300.0023 1
- Bag, Poly, 4x6x4mil 8300.0046 1
- Foam, Corner, 2U 8700.0060 262193 4
- Carton, 2U, 23 1/4x7 1/2x20 1/8 862003 262119 1
- Manual, Owners, DK/DE/IT/ND/SW
Model 2060/2150
8100.0218 262210 1 EURO
- Manual, Owners, EN/ FR/ SP, Model
2060/2150
8100.0219 262194 1 US/CSA
/EURO/
UK/AUS
- Declaration of Conformity, Bose 2150
amplifier
8110.0012A 262318 1 EURO
- Line Cord, 120V, S250AH 4150.0009 262099 1 US/CSA
3
- Line Cord, MOD, 3x1.0mm, 10A,
250V
4150.0015 262117 1 AUS
3
- Line Cord, MOD, 3x1.0mm, 13A,
250V
4150.0016 262118 1 UK
3
- Line Cord, MOD, 3x1.0mm, 10A,
250V
4150.0017 262083 1 EURO
3
- Plug, .500, Black (covers level control
shafts after knob removal)
5815.0002 262319 2
- Foot, Rubber, BLK, .81 sq x .3 h 5740.0006 199779 4
AMPLIFIER/DRIVER BOARD VERSION INFORMATION
Units built before June 2005 have the original version of the amplifier PCB assembly. Units built
after that date have a different version of the amplifiier PCB assembly. Units built before June
2005 use amplifier bare board part number 6000.0435. Units built after that date use bare board
part number 8005.0587. The amplifier driver modules for these boards are different as well. The
original version used the black TAO103 module. Newer versions use a PCB assembly with a
heatsink visible on the top of the board. See below.
CAUTION: The driver modules and the amplifier boards used with them are NOT compatible
with the other versions. Any attempts to use an incorrect driver module on an incompatible
amplifier board will result in damage to both. Be sure to use the appropriate schematic, board
layout diagram and parts list for the amplifier PCB assembly in your unit.

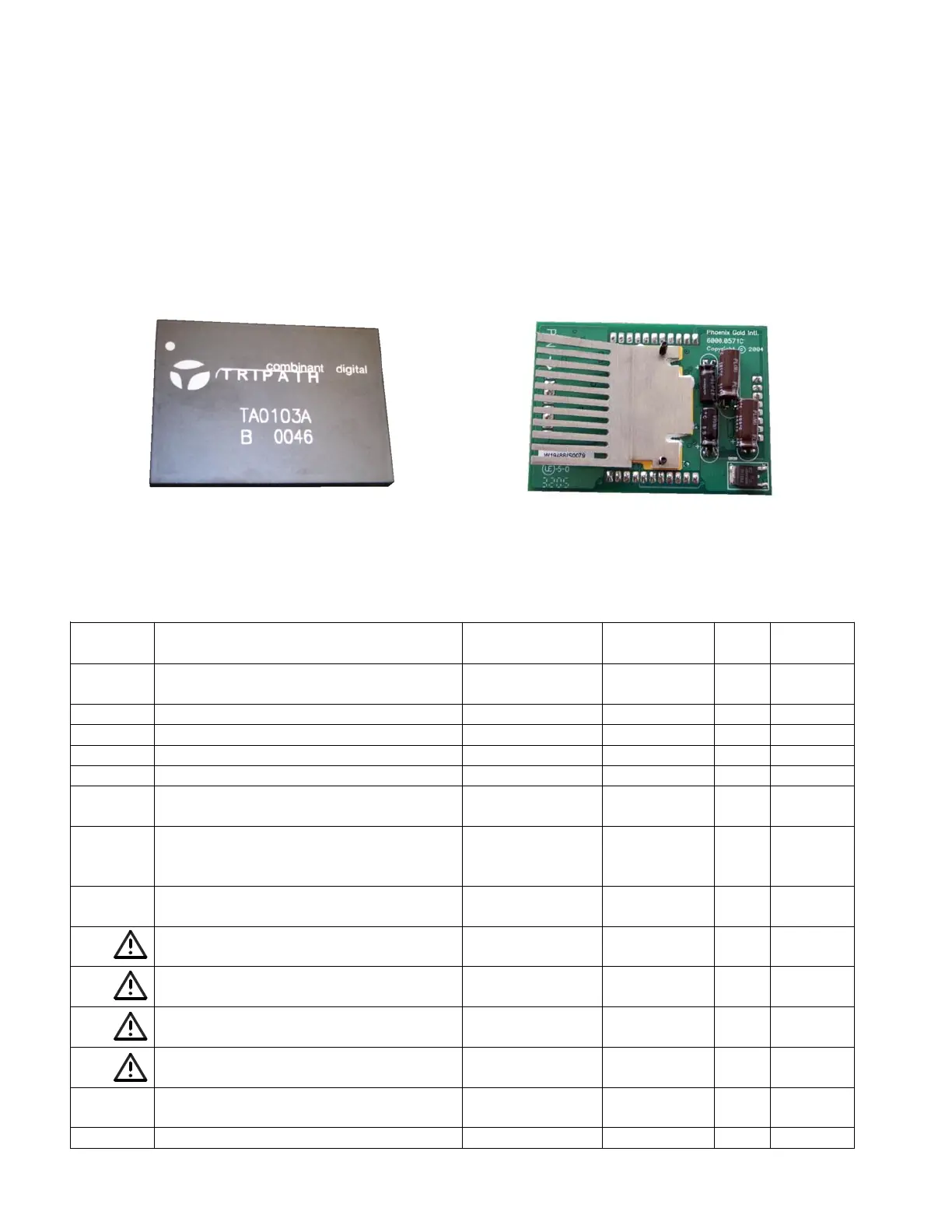

Original Version Driver Module, used with
the 6000.0435 Amplifier PCB
Newer Version Driver Module, used with the
8005.0587 Amplifier PCB
