Specifications
Physical
Dimensions Weight
F1 Model 812 Loudspeaker 26.1" (665 mm) H x 13.1" (334 mm) W x 14.6" (373 mm) D 44.5 lb (20.2 Kg)
F1 Subwoofer 27.0" (688 mm) H x 16.1" (410 mm) W x 17.6" (449 mm) D 55.3 lb (24.9 Kg)
F1 system stack 73.5" (1868 mm) H x 16.1" (410 mm) W x 17.6" (449 mm) D 99.5 lb (45.7 Kg)
Electrical
AC power rating Peak inrush current
F1 Model 812 Loudspeaker
100–240V
2.3–1.2A 50/60Hz
120 V RMS: 6.3A RMS
23 VRMS: 4.6A RMS
F1 Subwoofer
100–240V
2.3–1.2A 50/60Hz
120 V RMS: 6.3A RMS
23 VRMS: 4.6A RMS
Audio Input/Output
F1 Model 812
• INPUT 1, SIGNAL INPUT: Mic or line-level input channel for XLR connector or ¼" phone plug.
• INPUT 2, RCA input connectors: Line-level input channel for ¼” phone plug.
• SYSTEM, LINE OUTPUT: Balanced XLR line-level output, a mix of INPUT 1 and INPUT 2.
Subwoofer
• LINE OUTPUT 1/2: Balanced XLR line-level output.
• LINE INPUT 1/2: Line-level input for XLR connector or ¼” phone plug.

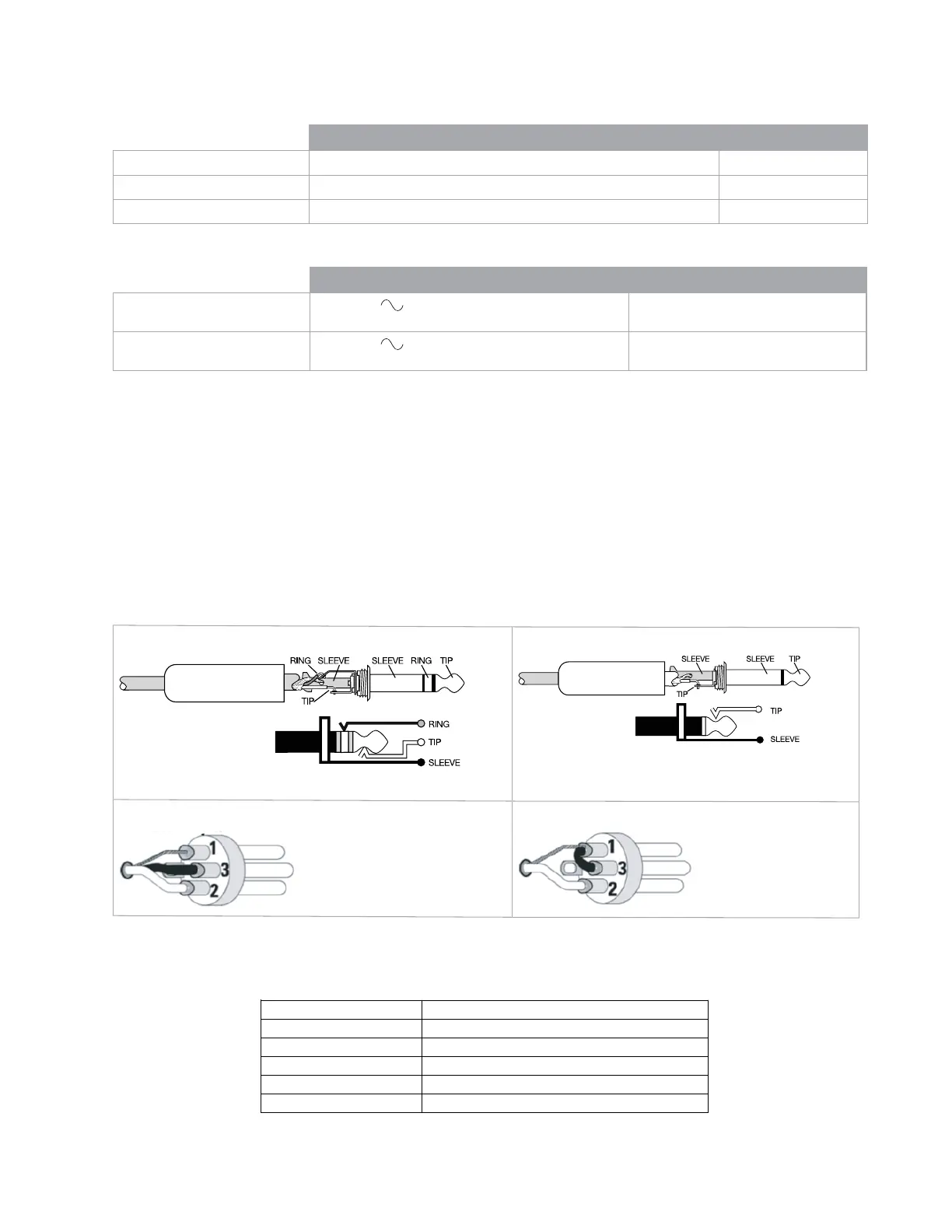

Input/Output Connector Wiring
TRS balanced
TS unbalanced
XLR balanced
1 – Shield (ground)
3 – Minus (–)
2 – Plus (+)
XLR unbalanced
1 – Shield (ground)
3 – Minus (–)
2 – Plus (+)
Accessories
Part Number Description
751863-0010 F1 MODEL 812 TRAVEL BAG
751864-0010 F1 SUBWOOFER TRAVEL BAG
736451-0010 YOKE BRACKET
736453-0010 U BRACKET
738453-0110 PAN AND TILT BRACKET, BLACK
