DISASSEMBLY PROCEDURES

F1 Model 812 Loudspeaker

Important Note: The top and rear handles

and their inserts are not replaceable for

safety reasons. Do not attempt to remove

them. They are not stocked as repair parts.

Some components internal to the loud-

speaker enclosure, such as the internal

brackets and the left and right SMPS cover

are not replaceable.

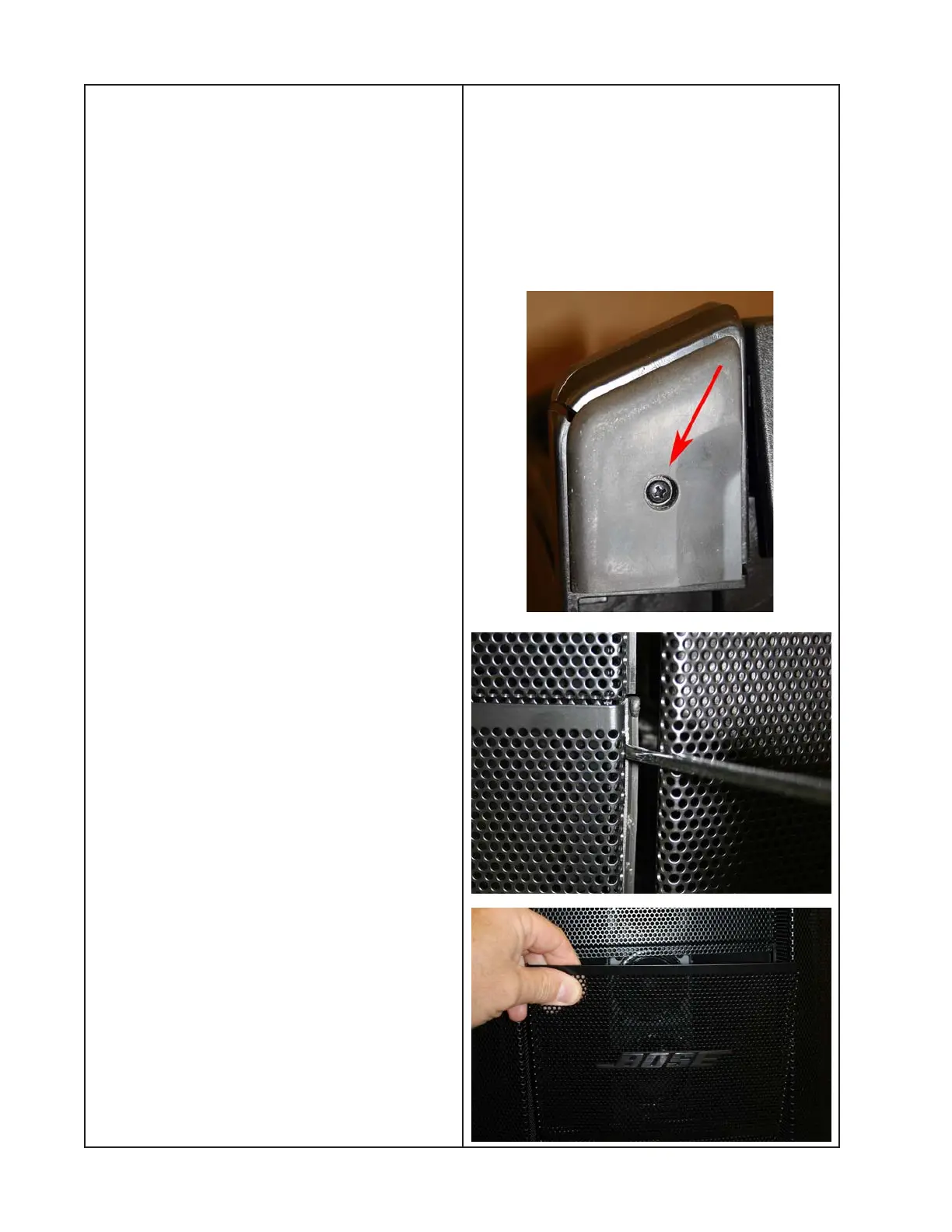

1. Foot Removal

1.1 Remove the one screw that secures the

foot to the loudspeaker enclosure.

1.2 Lift off the foot.

2. Front Grille Removal

Note: The front center and upper and lower

grilles are simply press-fit into slots in the

Twiddler

baffle.

2.1 Using a heavy duty straight pick or thin

screwdriver, press the tool in between the

side of the grille and the array baffle plastic.

2.2 Gently pry the grille forward toward the

front of the speaker to be able to grasp it.

2.3 Grasp the grille section you wish to

remove. Carefully pull the grille straight off

toward you, one side at a time until it is clear

of the array baffle. Lift off the grille.

Re-assembly Note: When re-installing the

grilles, use an angle tool to support the slot

of the array baffle that the grille seats into.

This will make it easier to replace the grille.
