Bose L1 Pro8 Service Manual

18
Main Part List
L1 Pro8 Extension (see Figure 5)
Item
Number
Description
Bose Part
Number
Vendor Part
Number
Notes
1 SCREW, T3XL12 - T153301230610-02
2 EXTENSION, REAR - T100423800200
3 CABLE, EXTEND, 6PIN - T641700169300
4
NON WOVEN, ADHESIVE, BLACK,
DS11 K
- T182900003160
5 EXTENSION, FRONT - T100423700200
6 PC SHEET, PRODUCT LABEL - T911700056730
Note: The array extension is not repairable. The above parts are listed for reference only.
Bose part number is 833679-0110 (EXTENSION ASSY) as listed in the packaging parts list.

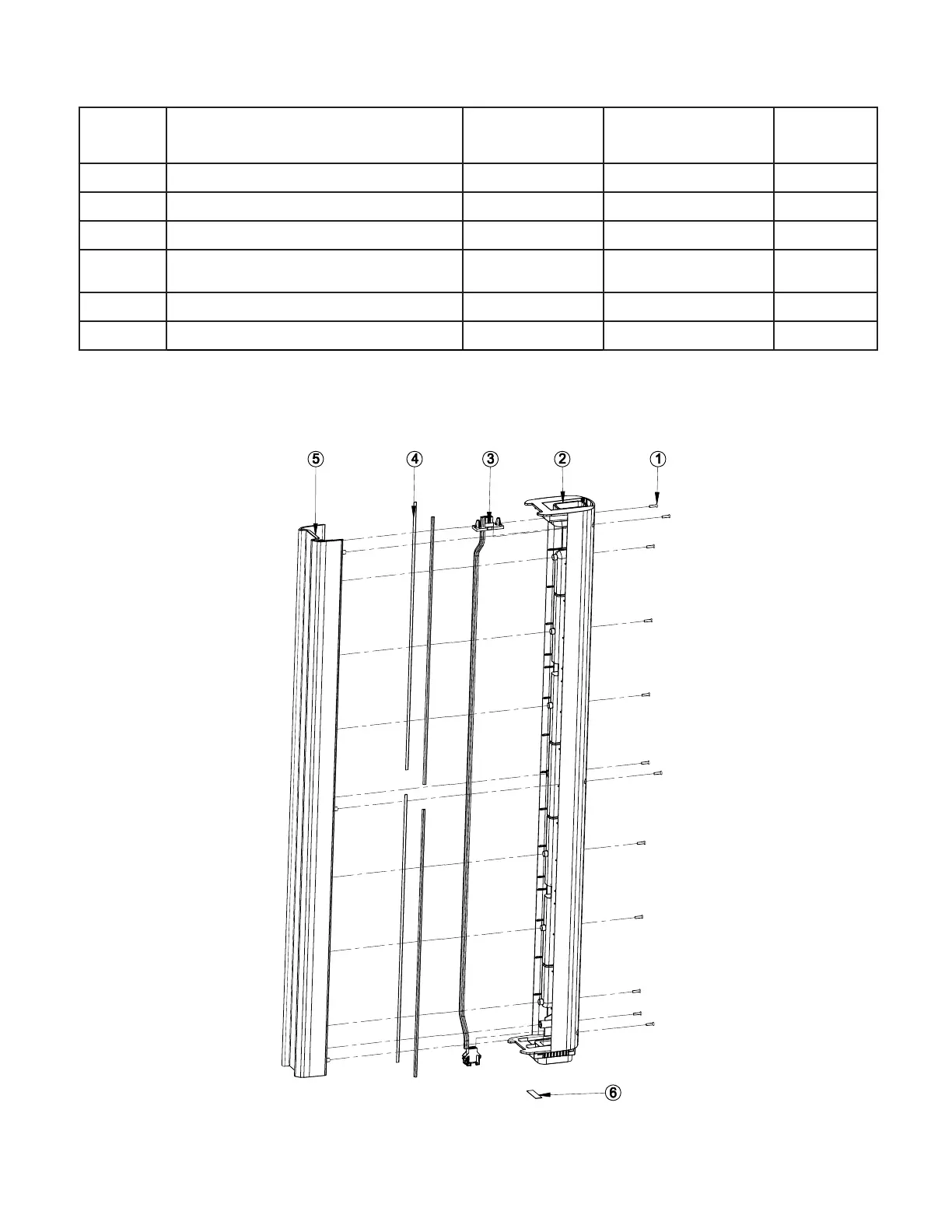

Figure 5. L1 Pro8 Extension Exploded View

Bose L1 Pro8 Specifications

General

Tweeter	Yes
Amplifier	Built-in
Speaker type	-
Amplifier class	D
Number of drivers	8
Number of speakers	1
Woofer diameter (imperial)	13 \
Tweeter diameter (imperial)	2 \
Frequency range	- Hz
RMS rated power	300 W
Speakers RMS power	60 W
Sound pressure level (max)	118 dB
Wi-Fi	No
AUX in ports	2
Connectivity technology	Wired & Wireless
Type	Freestanding Public Address (PA) system
Control type	Buttons, Rotary
Product type	2.1 portable speaker system
Mounting type	Floor
Product color	Black
Volume control	Rotary
Number of mixer channels	3 channels
Power source type	AC

Weight and Dimensions

Depth	440 mm
Width	318 mm
Height	2005 mm
Weight	18000 g
