Bose L1 Pro8 Service Manual

47
SOFTWARE UPDATE
These instructions explain how to update the firmware of your L1 Pro8, L1 Pro16,
L1Pro32, Sub1, or Sub2.
Note: A USB-C cable is required (not included with your product). The L1 Pro family of
products is not compatible with Thunderbolt 3 cables.

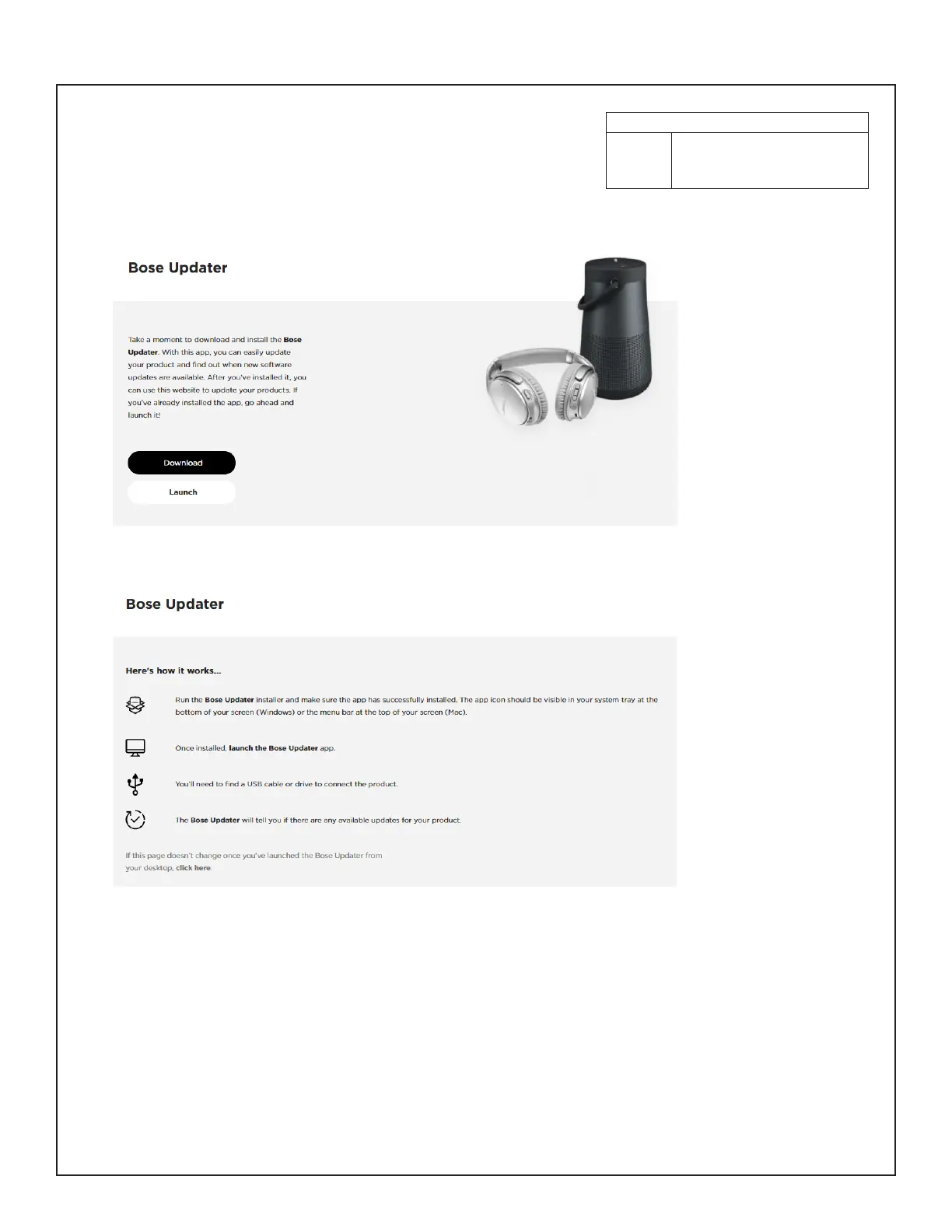

1. On a computer, open a web browser and go to btu.bose.com.
Note: Not compatible with Internet Explorer or Safari.
2. Click Download to download the Bose Updater.
3. View the End-User License Agreement, then click I Agree.
4. Install the Updater.
5. Once installed, open the Updater.
6. Plug y
our product into a power source.
7. Connect your product to your computer using a USB-C cable. The Updater will identify your product automatically.
Compatible Web Browsers
Windows Google Chrome, Mozilla Firefox,
Microsoft Edge
Mac Google Chrome, Mozilla Firefox
English • 2

Bose L1 Pro8 Specifications

General

Tweeter	Yes
Amplifier	Built-in
Speaker type	-
Amplifier class	D
Number of drivers	8
Number of speakers	1
Woofer diameter (imperial)	13 \
Tweeter diameter (imperial)	2 \
Frequency range	- Hz
RMS rated power	300 W
Speakers RMS power	60 W
Sound pressure level (max)	118 dB
Wi-Fi	No
AUX in ports	2
Connectivity technology	Wired & Wireless
Type	Freestanding Public Address (PA) system
Control type	Buttons, Rotary
Product type	2.1 portable speaker system
Mounting type	Floor
Product color	Black
Volume control	Rotary
Number of mixer channels	3 channels
Power source type	AC

Weight and Dimensions

Depth	440 mm
Width	318 mm
Height	2005 mm
Weight	18000 g
