Bose L1 Pro8 Service Manual

9
Packaging Part List
L1 Pro8 (includes Array) (see Figure 1)
Item
Number
Description
Bose Part
Number
Vendor Part
Number
Notes
1 CARTON 859613-0010 T302001585000
2 EXTENSION ASSY 833679-0110 T910000075580
3 CARRY BAG, BLACK 856991-0110 T310000075000
44 MANUAL BAG 865047-0010 -
5 TOP EPE FOAM 857376-0010 -
6 BOTTOM EPE FOAM 857372-0010 -
7 CARDBOARD SIDE PADS 857373-0010 -
8 SAFETY SHEET 857139-0010 -
9 QSG 857138-0010 -
10
SHEET,USER SOFTWARE UPDATE
GUIDE
865083-0010 -
11
CABLE, LINE CORD, IEC C13, NA 350745-0010 T640100016600
3
CABLE, LINE CORD, IEC C13, EU 350747-0010 T640100015400
CABLE, LINE CORD, IEC C13, JP 350749-0020 T640100015500
CABLE, LINE CORD, IEC C13, UK 350748-0010 T640100015200
CABLE, LINE CORD, IEC C13, AU 350746-0010 T640100021100
2
3
11
1
6
5
7
10
98
4

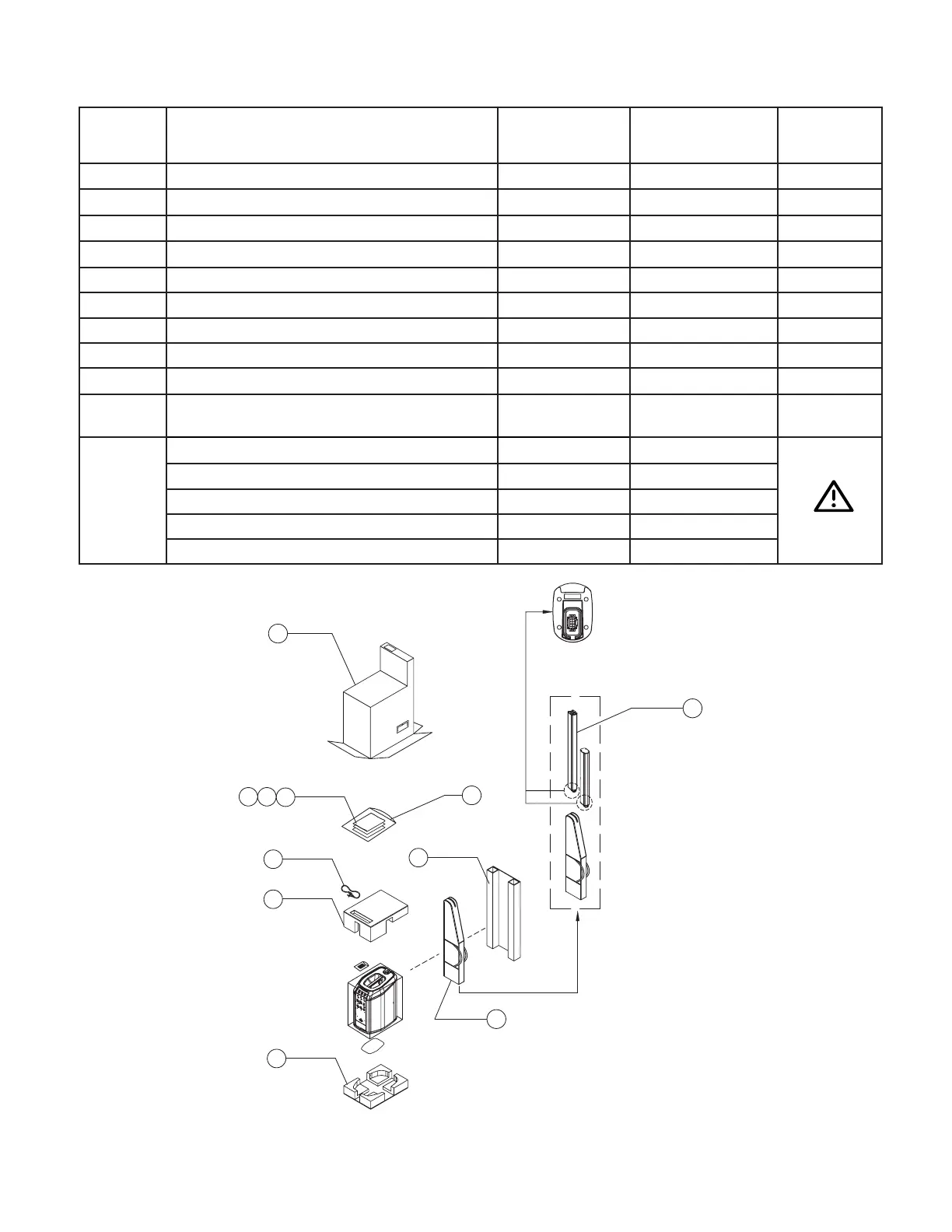

Figure 1. L1 Pro8 Packaging Exploded View

Bose L1 Pro8 Specifications

General

Tweeter	Yes
Amplifier	Built-in
Speaker type	-
Amplifier class	D
Number of drivers	8
Number of speakers	1
Woofer diameter (imperial)	13 \
Tweeter diameter (imperial)	2 \
Frequency range	- Hz
RMS rated power	300 W
Speakers RMS power	60 W
Sound pressure level (max)	118 dB
Wi-Fi	No
AUX in ports	2
Connectivity technology	Wired & Wireless
Type	Freestanding Public Address (PA) system
Control type	Buttons, Rotary
Product type	2.1 portable speaker system
Mounting type	Floor
Product color	Black
Volume control	Rotary
Number of mixer channels	3 channels
Power source type	AC

Weight and Dimensions

Depth	440 mm
Width	318 mm
Height	2005 mm
Weight	18000 g
