Bose L1 Pro8 Service Manual

6
PRODUCT DESCRIPTION
L1 Pro8 Portable Line Array System is the most compact, most portable, play-anywhere system. The
system is ideal for Singer-Songwriter with 8 Twiddlers and one subwoofer. It will replace current L1
Compact system.

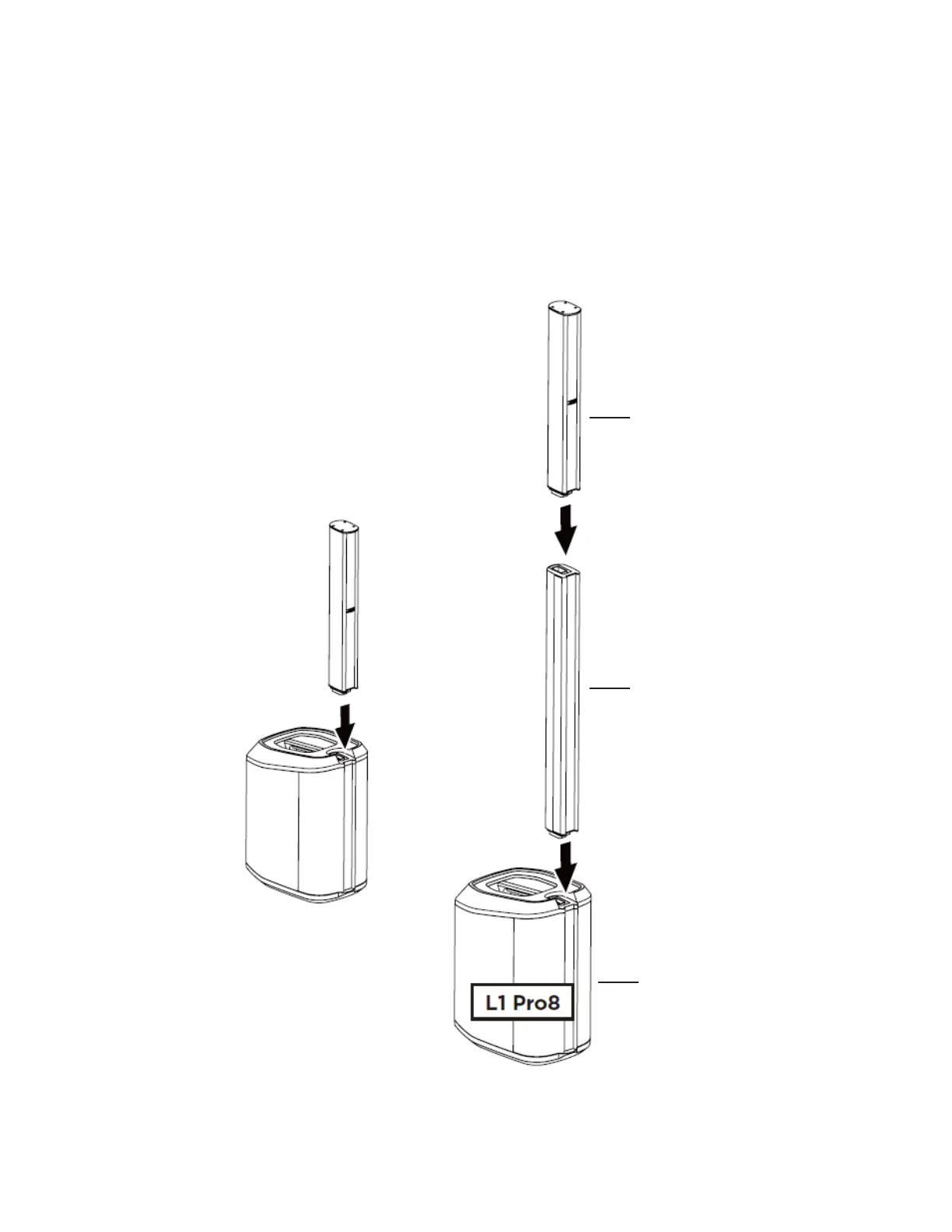

Before connecting the system to a power source, assemble the system using the array extension and
mid-high array.
1. Insert the array extension into the subwoofer power stand.
2. Insert the mid-high array into the array extension.
Array extension
Mid-high array
The L1 Pro8 can be assembled without using the array extension; the mid-high array can be connected
directly to the subwoofer power stand. This conguration is most useful when on an elevated stage to be
sure the mid-high array is at ear level.
Subwoofer power stand

Bose L1 Pro8 Specifications

General

Tweeter	Yes
Amplifier	Built-in
Speaker type	-
Amplifier class	D
Number of drivers	8
Number of speakers	1
Woofer diameter (imperial)	13 \
Tweeter diameter (imperial)	2 \
Frequency range	- Hz
RMS rated power	300 W
Speakers RMS power	60 W
Sound pressure level (max)	118 dB
Wi-Fi	No
AUX in ports	2
Connectivity technology	Wired & Wireless
Type	Freestanding Public Address (PA) system
Control type	Buttons, Rotary
Product type	2.1 portable speaker system
Mounting type	Floor
Product color	Black
Volume control	Rotary
Number of mixer channels	3 channels
Power source type	AC

Weight and Dimensions

Depth	440 mm
Width	318 mm
Height	2005 mm
Weight	18000 g
