20

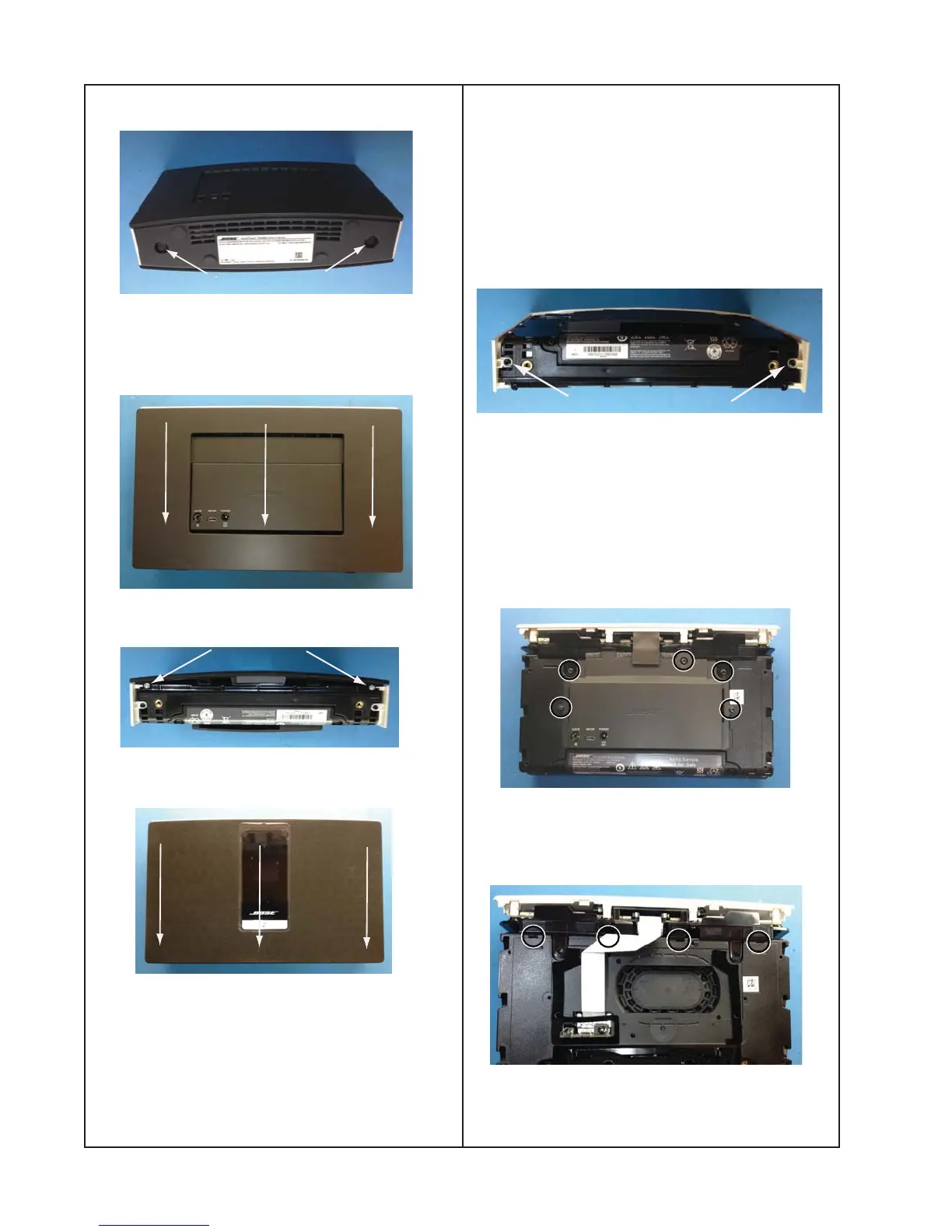

1. Grill removal
1.1 Remove the two screws located on the
bottom of the product using a standard
2.5mm allen key. Bose
®
part number
349601-0025.
1.2 Push the rear cover down and lift upward
to release.
1.3 Remove the two screws securing the
grille assembly.
1.4 Push the grille assembly down and lift
upward to release. Then remove the cable
from the Wi-Fi Module to the display board
connector J200.
! Important Note: Take ESD precautions
when connecting or disconnecting the OLED
display. Refer to page 5 for ESD precautions.
DISASSEMBLY PROCEDURE
Important Note: The display assembly must
be replaced with the display assembly listed
in the main part list. There are different
OLEDs that need to match the display PCB.
The display assembly listed in the main part
list uses a matched OLED and display PCB.
2. End Cap Removal
2.1 Remove the two screws holding the end
caps to the enclosure.
2.2 Push each end cap down to release the
hooks holding them in place.
3. Rear Cover and Top Cap Removal
3.1 Remove the three screws holding the
rear cover. Then remove the two screws
holding the top cap.
To Next Page
