SPEAKER ASSEMBLY PART LIST
Bose
®
SoundTouch™ Portable Wi-Fi Music System

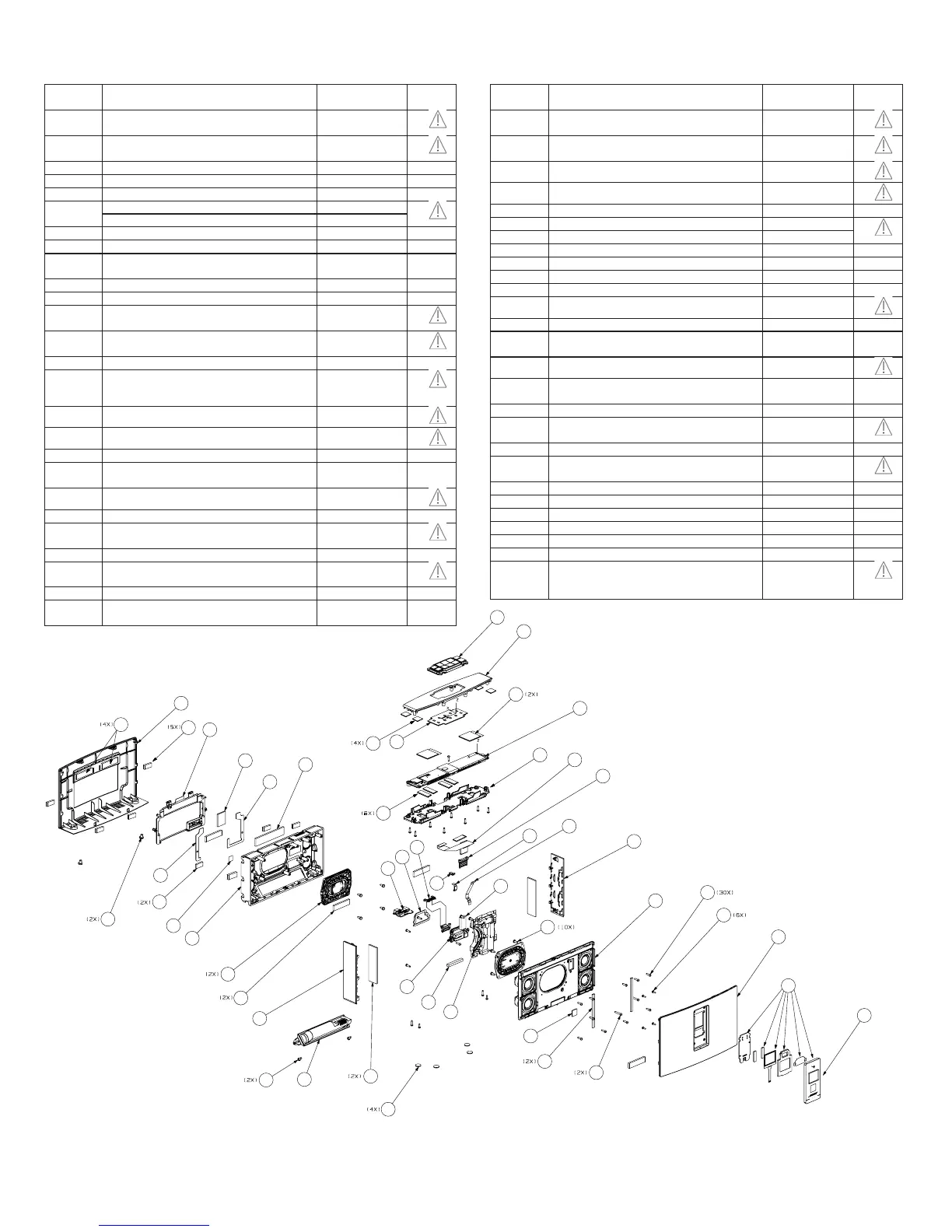

Figure 2. Speaker Assembly Exploded View
1
2
3
4
6
7
5
9
11
8
10
12
13
15
16
14
17
19
20
21
18
22
24
25
23
32
29
30
31
28
27
26
33
35
34
37
38
36
39
40
42
41
43
46
45
44
47
48
49
50
Item
Number
Description Part Number Note
1 COVER, REAR, GREY
COVER, REAR, BLK
355903-0030
355903-0010
3,
2 SHROUD, EXTERNAL, GREY
SHROUD, EXTERNAL, BLK
355904-0030
355904-0010
3,
3 TAPE, PORON, 1.6MM 374392-0010
4 FLOCK, EXTERNAL SHROUD, LEFT 374901-0010
5 TAPE, FOAM, 90X19X3.8mm 370396-0060
6 PCB ASSY, I/O (bulk pack) 362487-0010
3,
PCB ASSY, I/O (single pack) 362487-001S
7 GASKET, I/O SHROUD 356140-0010
8 CABLE ASSY, FFC, FOLDED, 31POS 370132-0010
9 CABLE ASSY, FFC, 0.5mm, 10COND,
40mm
356136-0040
10 PCB ASSY, BUTTON (bulk pack) 354789-0010
PCB ASSY, BUTTON (single pack) 354789-001S
11 KEYPAD ASSEMBLY, GREY
KEYPAD ASSEMBLY, BLK
355698-0030
355698-0010
3,
12 TOP CAP, WHITE
TOP CAP, BLK
355900-0020
355900-0030
3,
13 HEATSINK (order item 14) -
14 SLAB ASSY, SOUNTOUCH,COMMON
MODULE
627303-031S
or
627303-041S
3,
15 FRAME, TOP CAP 373798-0010
3,
16 CABLE ASSY, FFC, 0.5mm, 40COND 361133-0010
3,
17 GROMMET, FFC, 40 COND 361136-0010
18 CABLE ASSY, FFC, 0.5MM, SHLD,
12COND, 57mm 1
356135-0057
19 CABLE ASSY, FFC, 16COND, 135mm 356137-0020
3,
20 CUSHION, AMP PCB-16 POS CABLE 625919-0010
21 END CAP, RIGHT, WHITE
END CAP, RIGHT, BLK
355902-2020
355902-3020
3,
22 SCREW, 6-13x.38, PAN, XREC/SQ 288374-006
23 ENCLOSURE ASSY, BAFFLE (see next
page for individual parts list)
357295-0010
3,
24 SCREW, TAPP, 4-16X.44, PAN, TORX 343757-007
25 SCREW,SELF TAPPING, M2.5X7mm,
WASHER, TORX
357328-0070
Item
Number
Description Part Number Note
26 GRILLE, FRONT ASSEMBLY, GREY
GRILLE, FRONT ASSEMBLY, BLK
355908-0030
355908-0010
3,
27 SUBASSY, OLED/LENS (includes the
display, display PCB and lens)
627304-001S
3,
28 LENS, SOUNDTOUCH PORTABLE 355906-0010
3,
29 SHROUD, I/O 373799-0010
3,
30 STOP, GRILLE 373331-0010
31 PCB ASSY, AMP (bulk pack) 362485-0010
3,
PCB ASSY, AMP (single pack) 362485-001S
32 FOAM, STRIP 627028-0030
33 TAPE, FOAM, 83X6X1.6mm 370396-0040
34 SCREW,TAPP, 4-16X.75, PAN, TORX 343757-012
35 SCREW, MACH, M5X7MM, CAP, HEX 345989-007
36 FLOCK, EXTERNAL SHROUD, RIGHT 374902-0010
3,
37 TAPE, FOAM, 20X10X2.8mm 370396-0070
38 LABEL, PRODUCT, 2D BARCODE,
.5"x. 5"
276533-135
39 ENCLOSURE, W/INSERTS 357275-0010
3,
40 PASSIVE RADIATOR, MED
STIFFNESS, ASSEMBLED
357789-0050
41 TAPE, FOAM, 50X12.7X3.2mm 370396-0020
42 END CAP, LEFT, WHITE
END CAP, LEFT, BLK
355902-2010
355902-3010
3,
43 SCREW, MACH, M3X8MM, PAN, HEX 345988-008
44 BATTERY PACK, Li-ION, 2600mAH
(bulk pack)
359498-0010
3,
45 FOAM, TAPE 370396-0010
46 FOOT, RUBBER, 12.5 DIA 301750-002
47 TAPE, FOAM, 83X6X1.6mm 370396-0040
48 FOAM, STRIP 627028-0030
49 TAPE, FOAM, 20X10X2.8mm 370396-0070
50 FOAM, BAFFLE, 34MM 344271-0034
- BATTERY PACK, Li-ION, 2600mAH
(single pack, includes Allen Key and
installation instructions)
627276-0010
3,
