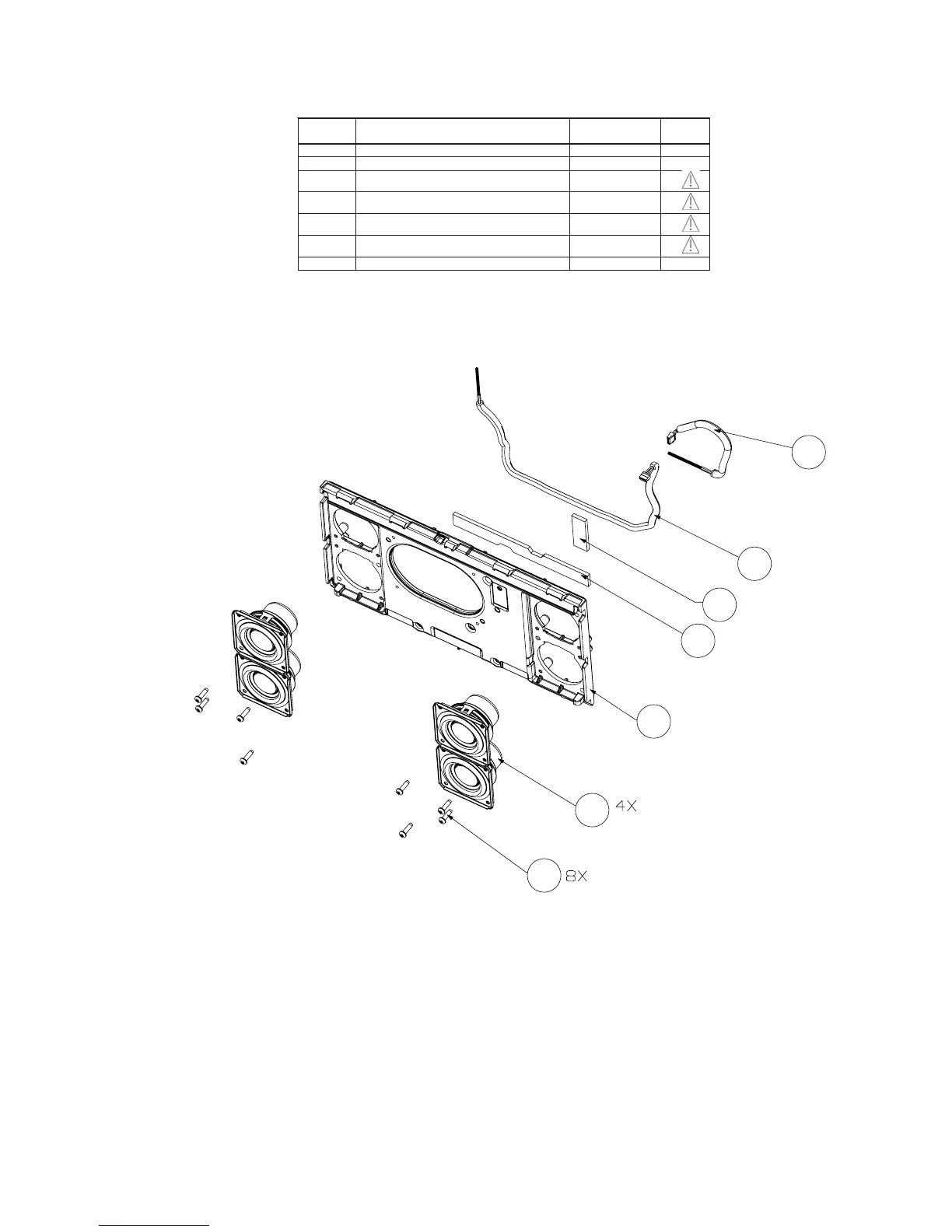

Figure 3. Baffle Assembly Exploded View
Item
Number
Description Part Number Note
1 HARNESS, TRANSDUCER, RIGHT 330061-0100
2 HARNESS, TRANSDUCER, LEFT 373584-0010
3 FOAM,BAFFLE, 34MM 344271-0034
3,
4 FOAM, BAFFLE, BATTERY 343939-0010
3,
5 BAFFLE, GASKET, MIP 357296-0010
3,
6 SPKR ASSY, FULL RANGE 357158-0030
3,
7 SCREW, TAPP, 4-16X.44, PAN, TORX 343757-007
BAFFLE ASSEMBLY PART LIST
Bose
®
SoundTouch™ Portable Wi-Fi Music System
