Application of
Assembly
3 - 56
Main motor unit
Application o
f
Assembly
Application of
Assembly
1

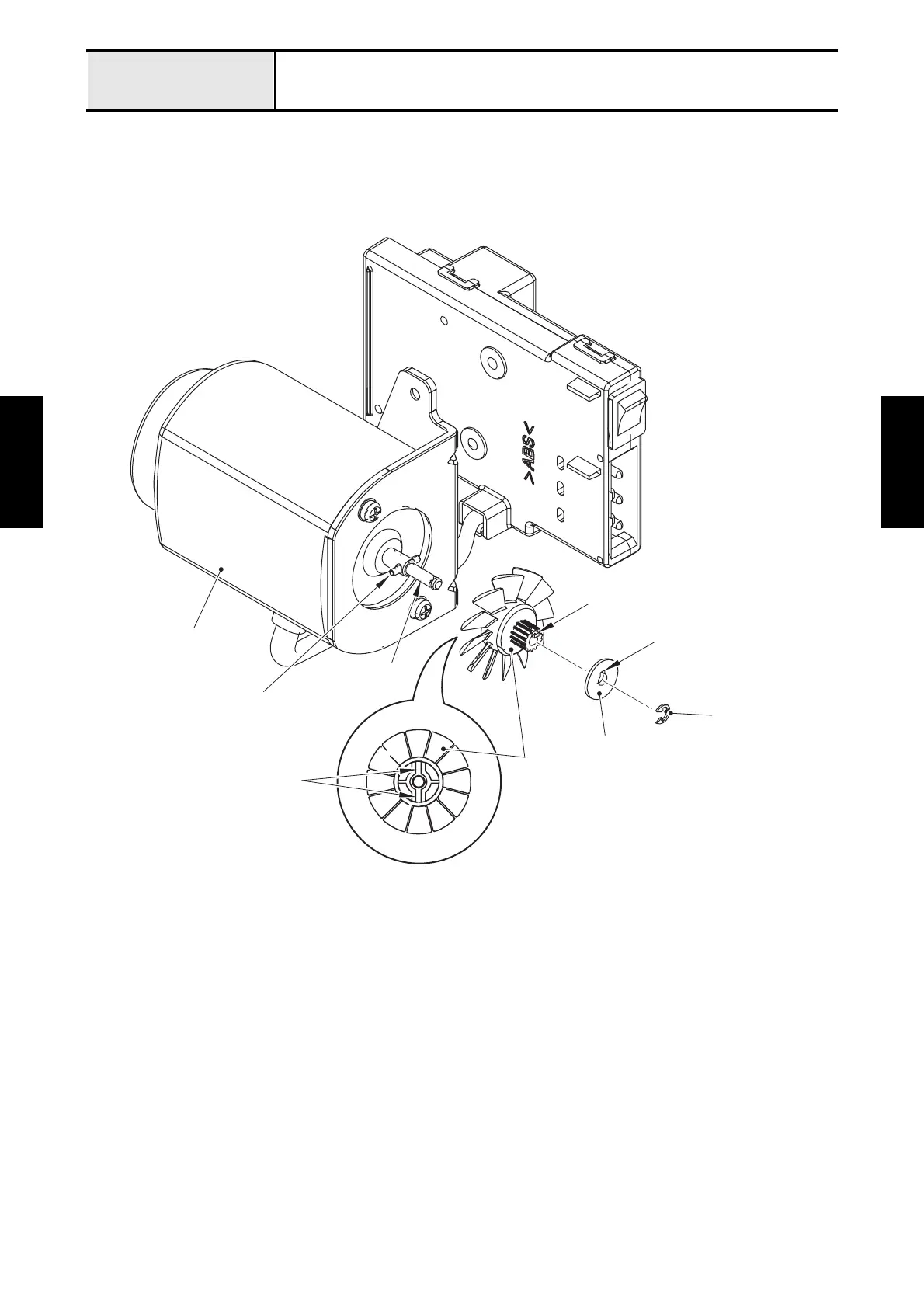

Assembly of Motor 3P supply assy
1.
Insert the motor T-p
ulley into the shaft of motor 3P
supply assy, and insert the pin into the gr
ooves of
motor T-pulley. And then align th
e tab of motor T-pu
lley with the
notch part of frange, and set it. And
secure them with the retaining ring E3.
Motor 3P supply assy
Retaining ring E3
Frange
Shaft
Motor T-pulley
Pin
Grooves
Notch part
Tab
113
115
Table of Contents
