Basic of Assembly
2 - 36
Feed unit / Feed control
Basic of
Assembly
Basic of
Assembly

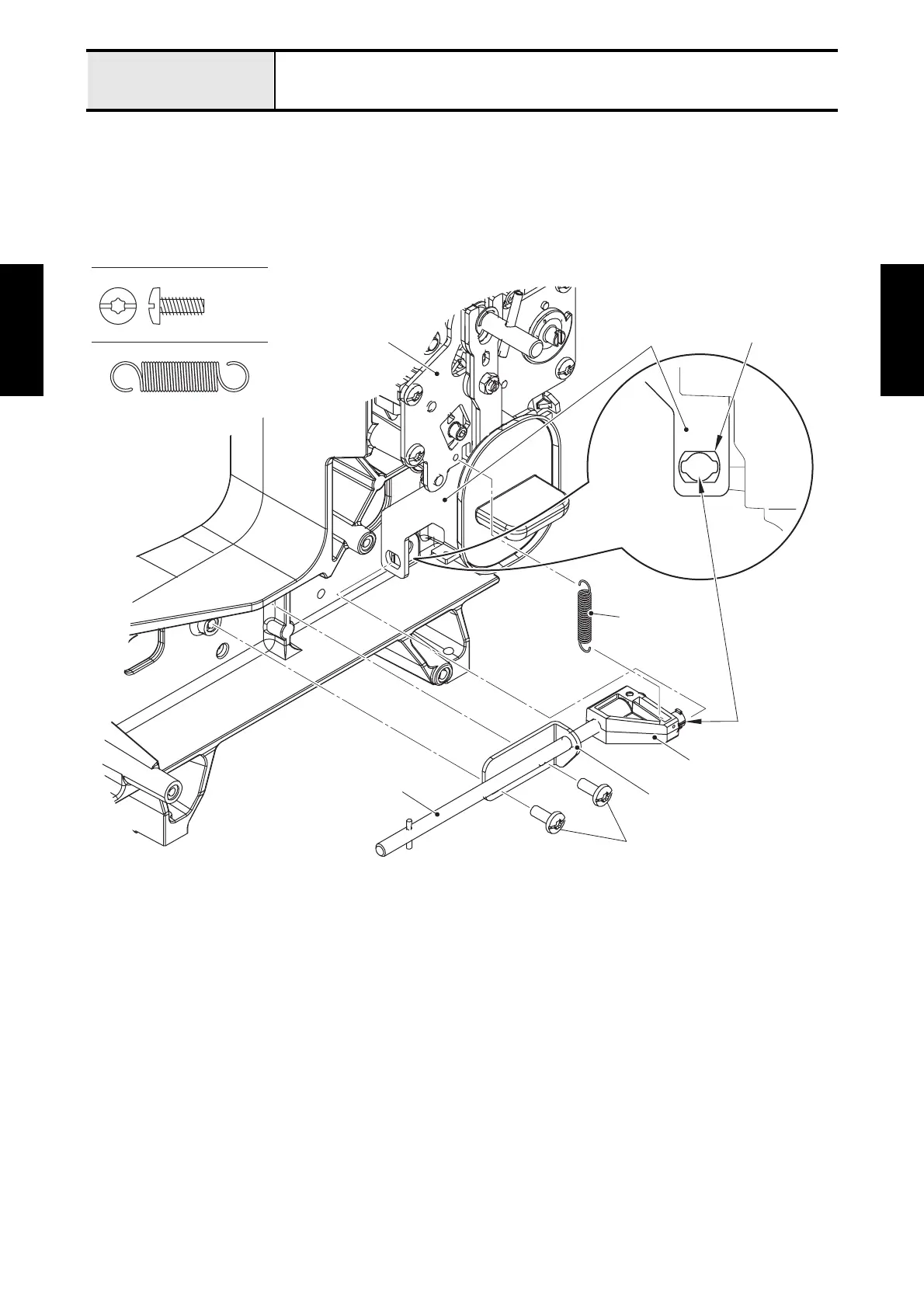

2 Attachment of Feed connecting lever assy
1. Insert the boss of feed connecting lever into the positioning hole of feed regulator plate B, and turn it 90
degrees. And attach the feed adjusting shaft holder of feed connecting lever assy to the arm bed with
the two screws (taptite, bind S M4X10).
2. Attach the spring extension C (XE9262) to the feed connecting lever and the pattern selecting unit
assy.
Taptite, Bind S M4X10
Spring extension C (XE9262)
Taptite, bind S M4X10
Feed connecting lever
Feed regulator plate B
Boss
Spring
extension C
(XE9262)
Feed adjusting shaft holder
Pattern selecting unit assy
Positioning hole
Feed connecting lever assy
