Brother AS1430S User Manual

Basic of Assembly
2 - 39
Feed unit / Feed control
Basic of
Assembly
Basic of
Assembly

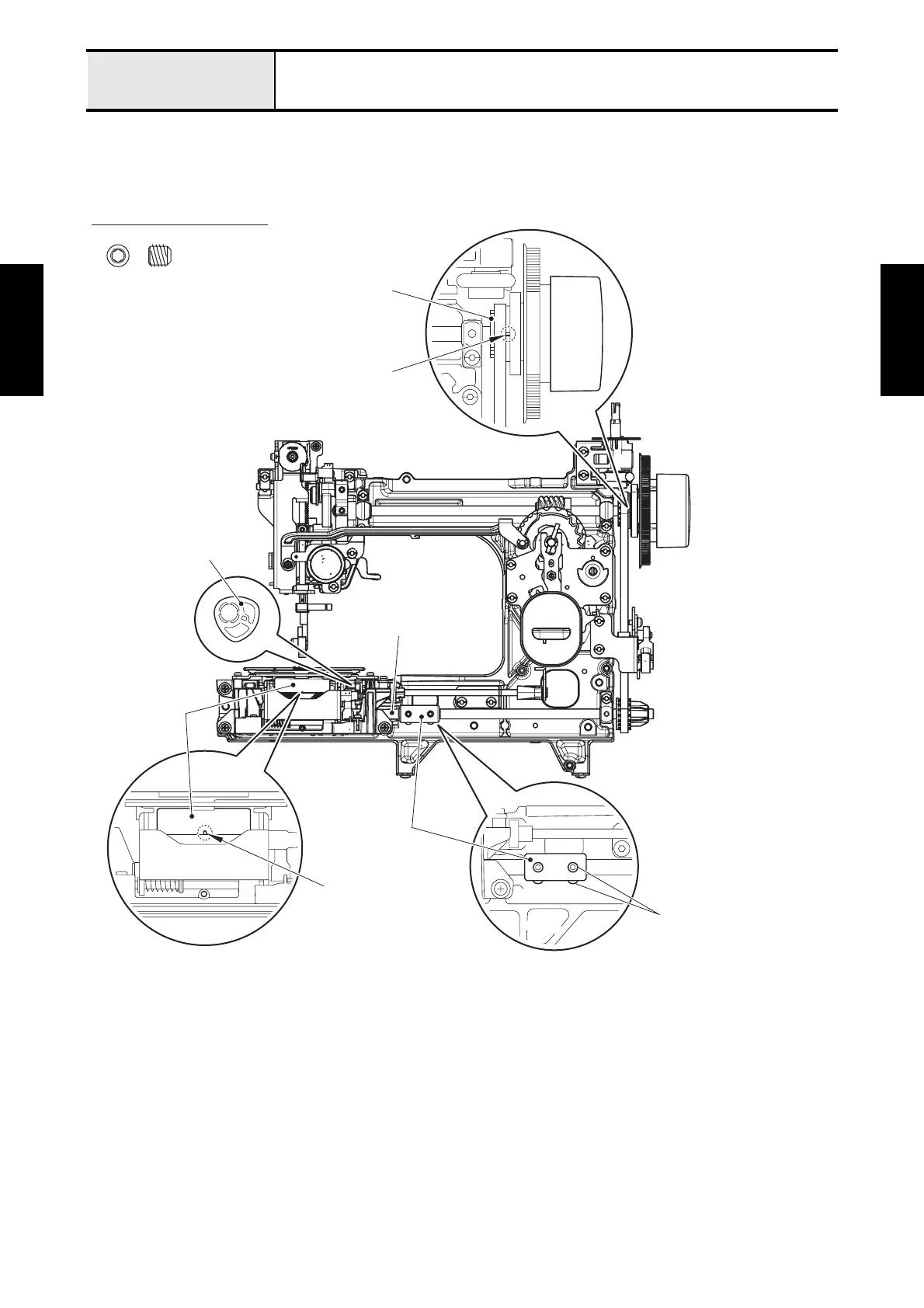

5 Phase matching of Upper shaft and Lower shaft
1. When set the groove of upper shaft pulley frontward by rotating the pulley of upper shaft, and set the
mark of outer rotary hook assy frontward by rotating the lower shaft A assy, and set the feed cam with
larger end facing backward, and tighten the two screws (set screw, socket (CP) M5X5) of fixed joint.
Set Screw, Socket (CP) M5X5
Hex wrench 2.5 mm
Outer rotary
hook assy
Groove
Upper shaft pulley
Set screw, socket (CP) M5X5
Fixed joint
Mark
Feed cam
Lower shaft A assy
