Basic of Assembly
2 - 30
Pattern selecting mechanism
Basic of
Assembly
Basic of
Assembly
2

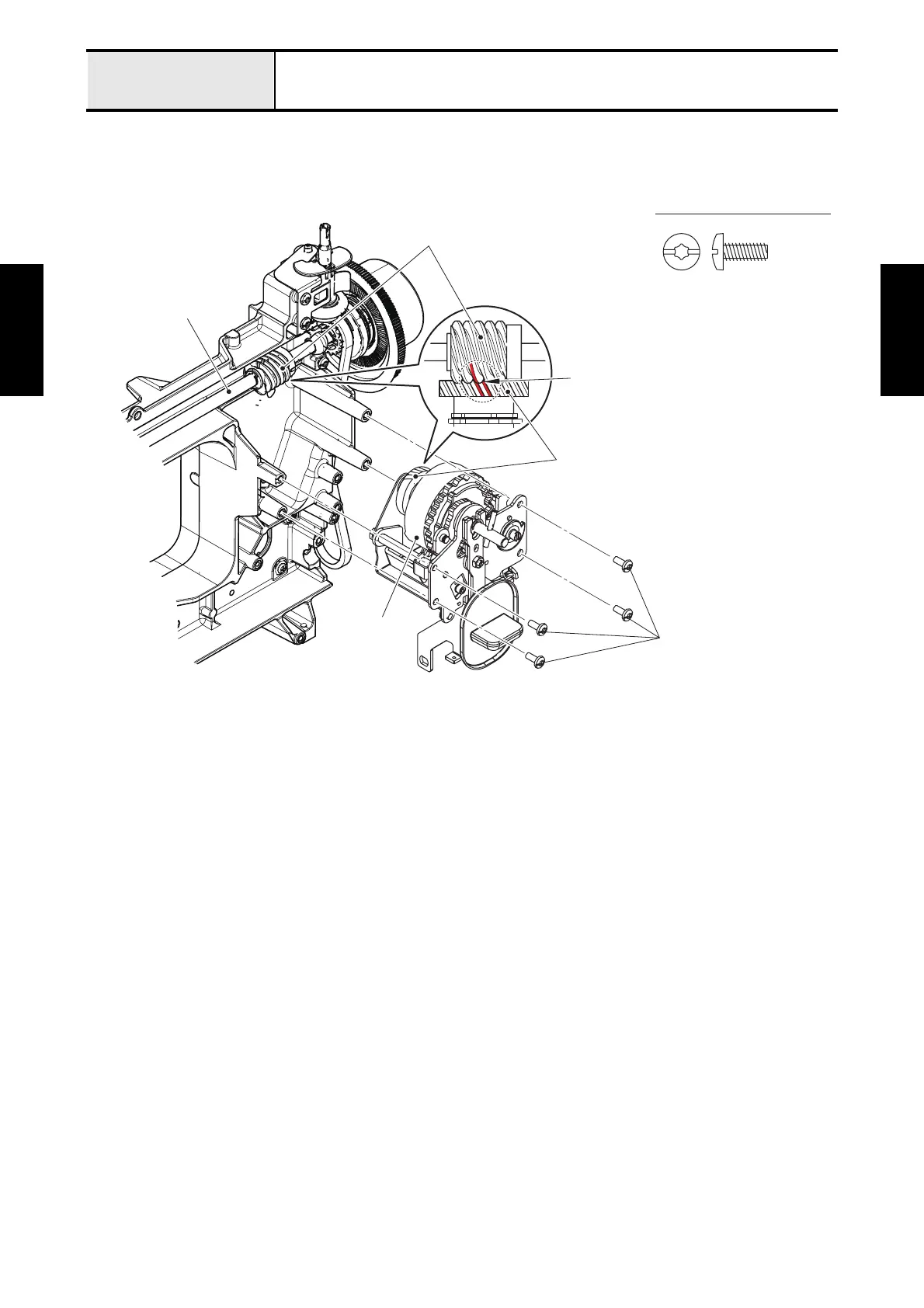

Attachment of Patter
n selecting unit assy
1.
Match the mark on worm gear of upper
shaft assy
with the
mark on gear of patter
n selecting unit assy,
and attach the pattern selecting
unit assy to the ar
m bed with the four screws (taptite, bin
d S M4X10).
T
aptite, Bind S M4X10
Pattern selecting
unit assy
Taptite, bind S M4X10
Gear
Marks
Worm gear
Upper shaft assy
41
