Application of
Disassembly
3 - 22
Pattern selecting mechanism
Application o
Disassembly
Application of
Disassembly

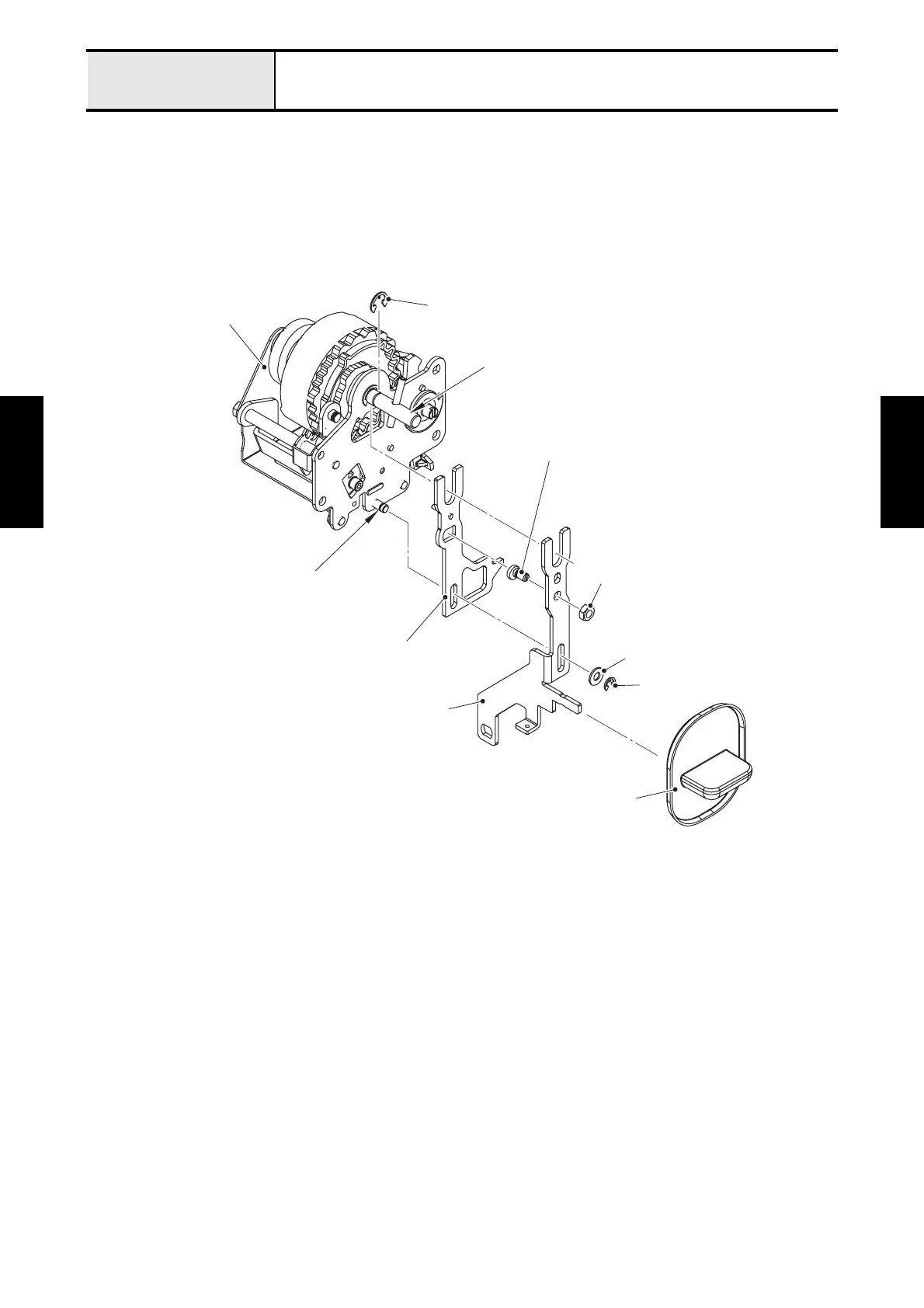

1 Disassembly of Pattern selecting unit assy
1. Remove the reverse sewing button from the feed regulator plate B.
2. Remove the retaining ring E3 to remove the washer plain M4 from the shaft A of pattern selecting unit
assy. And remove the retaining ring E5 from the shaft B of pattern selecting unit assy to remove the
feed regulator plate B and the feed regulator plate A assy from the pattern selecting unit assy. And
remove the nut 4 from the feed adjusting screw to remove the feed adjusting screw from the feed
regulator plate B.
Retaining ring E5
Pattern selecting unit assy
Feed regulator plate A assy
Feed adjusting screw
Feed regulator plate B
Retaining ring E3
Washer plain M4
Nut 4
Reverse sewing button
Shaft B
Shaft A
To Next Page
