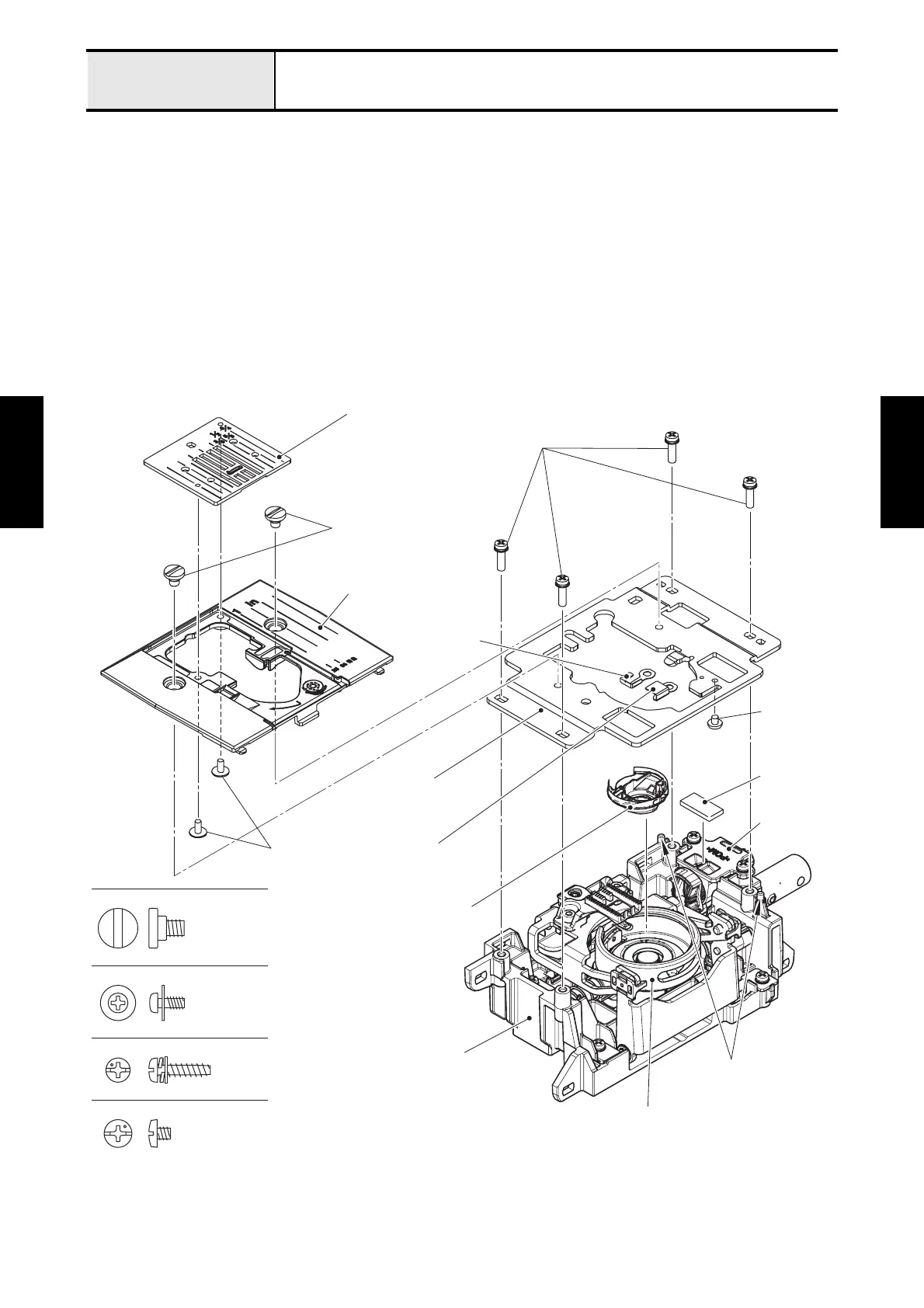

3 Disassembly of Feed module
1. Remove the two screws (screw needle plate) to remove the needle plate B from the needle plate holder
assy.
2. Remove the two screws (screw, pan (P washer) M2.6X6) to remove the needle plate A from the needle
plate B.
3. Remove the four screws (taptite, pan P (S/P W) 3X12) to remove the needle plate holder assy from the
feed holder.
4. Remove the screw (screw, bind M3X3), and remove the spring plate and the spring assist plate from
the needle plate holder.
5. Remove the inner rotary hook assy from the outer rotary hook assy.
6. Remove the sheet from the feed adjuster holder.
Screw, Pan (P washer) M2.6X6
Screw, Bind M3X3
Taptite, Pan P (S/P W) 3X12
Screw needle plate
Taptite, pan P (S/P W) 3X12
Needle plate A
Screw needle plate
Needle plate B
Screw, pan
(P washer)
M2.6X6
Spring plate
Spring assist plate
Needle plate holder
Screw, bind
M3X3
Inner rotary hook assy
Pins
Outer rotary hook assy
Feed holder
Sheet
Feed
adjuster
holder
