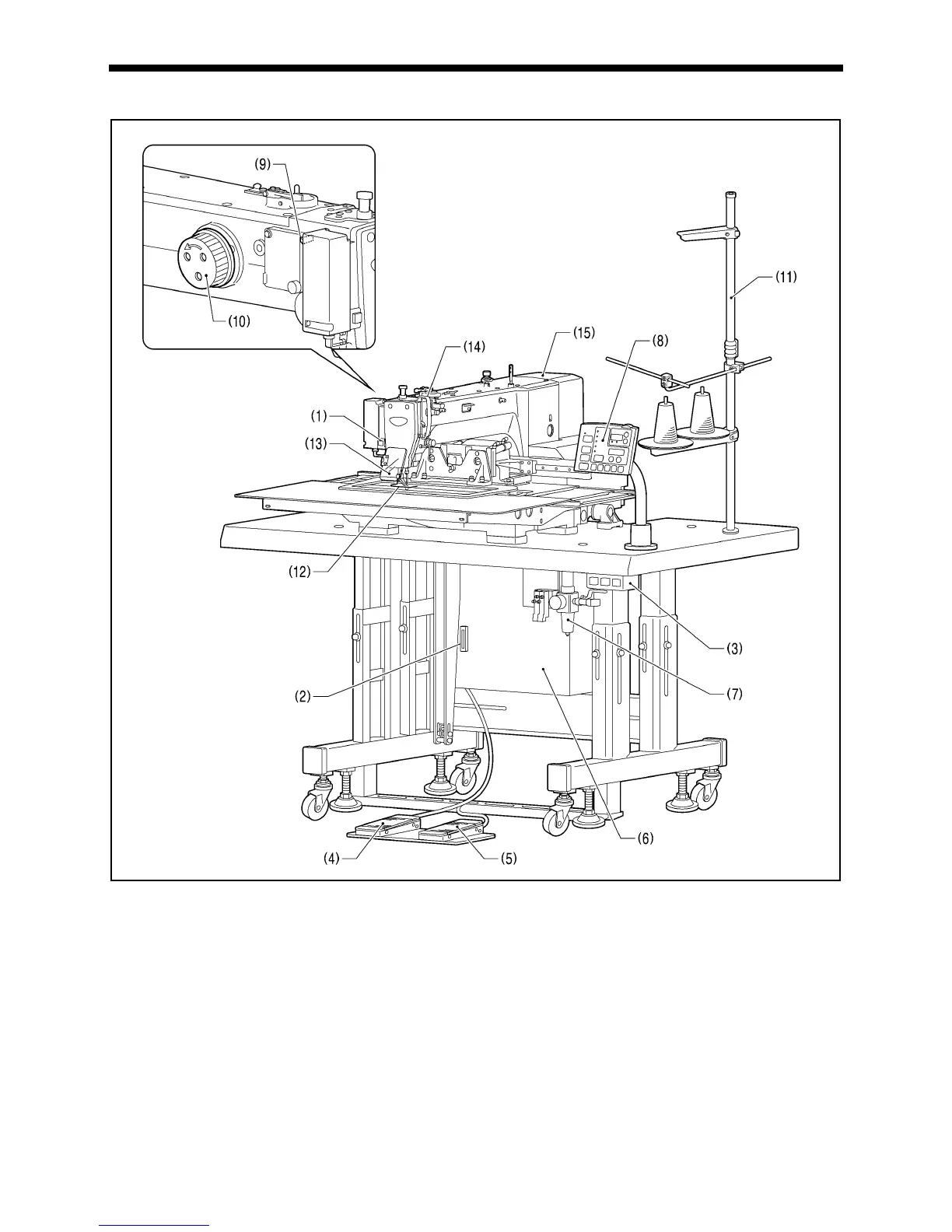

1. NAMES OF MA
JOR P
A
RTS
BAS-342G
1
1
. NAMES OF MAJOR P
ARTS
(1) STOP
switch
Safety devices:
(2) CF
slot
(12) Finger
guard
(3) Power
sw
itch
(13) Eye
guard
(4)
Work clamp sw
itch
(14)
Thread take-up cover
(5) S
tart
switch
(15) Motor
cover
(6) Control
box
(7) Solenoid
valve
(8) Operation
panel
(9)
Thread wiper sw
itch
(10) Pulley
(1
1) Cotton
stand
CF
TM
is a trademark of SanDisk Corporation.
3958M
9
11
