7. USING THE OPERATION PANEL (ADVANCED OPERATIONS)
BAS-342G
38
7-6. Setting the split number
If split data (data that causes sewing to pause) exists within a single program,
the numbers that are used to specify the patterns that are separated by split
data are called split numbers.
Pattern 1: Split No. 1
Pattern 2: Split No. 2
Pattern 3: Split No. 3

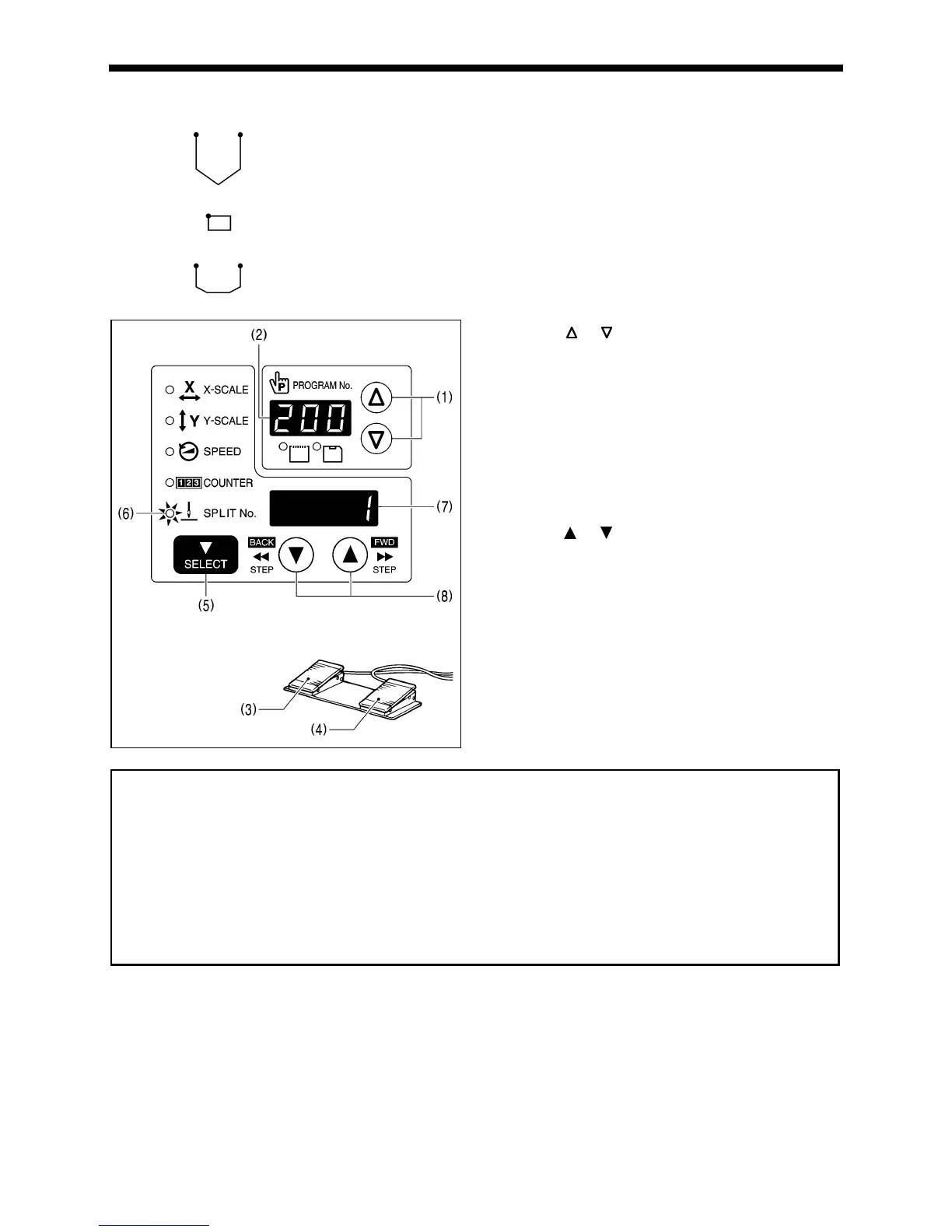

1. Press the or key (1) to select a program number
for a program that contains split data.
• The program number will flash in the PROGRAM No.
display (2).
2. Depress the work clamp switch (3) to lower the work
clamp, and then depress the start switch (4).
• The work clamp will move to the sewing start position,
and then the program number will be applied.
• The program number will stop flashing and illuminate
steadily.
3. Press the SELECT key (5) so that the SPLIT No.
indicator (6) illuminates.
• The split number will appear in the menu display (7).
4. Press the
or key (8) to set the split number.
The setting for memory switch No. 403 lets you select the split mode.
[Continuous split]
Memory switch No. 403 = 0 (Split mode is enabled after split data is detected)
Memory switch No. 403 = 1 (Split mode is always enabled)
• Sewing is carried out each time in the order of steps 1 → 2 → 3 → 1 (for example, if there are two sections of split
data).
[Independent split]
Memory switch No. 403 = 2
• The pattern for the displayed split number is sewn independently.
4964Q
Pattern 1
Pattern 2
Pattern 3
4017M
To Next Page
