6. USING THE OPERATION PANEL (BASIC OPERATIONS)
BAS-342G
30
6-4. Setting the X-scale and Y-scale
The scales are set to 100 (%) at the time of shipment from
the factory.

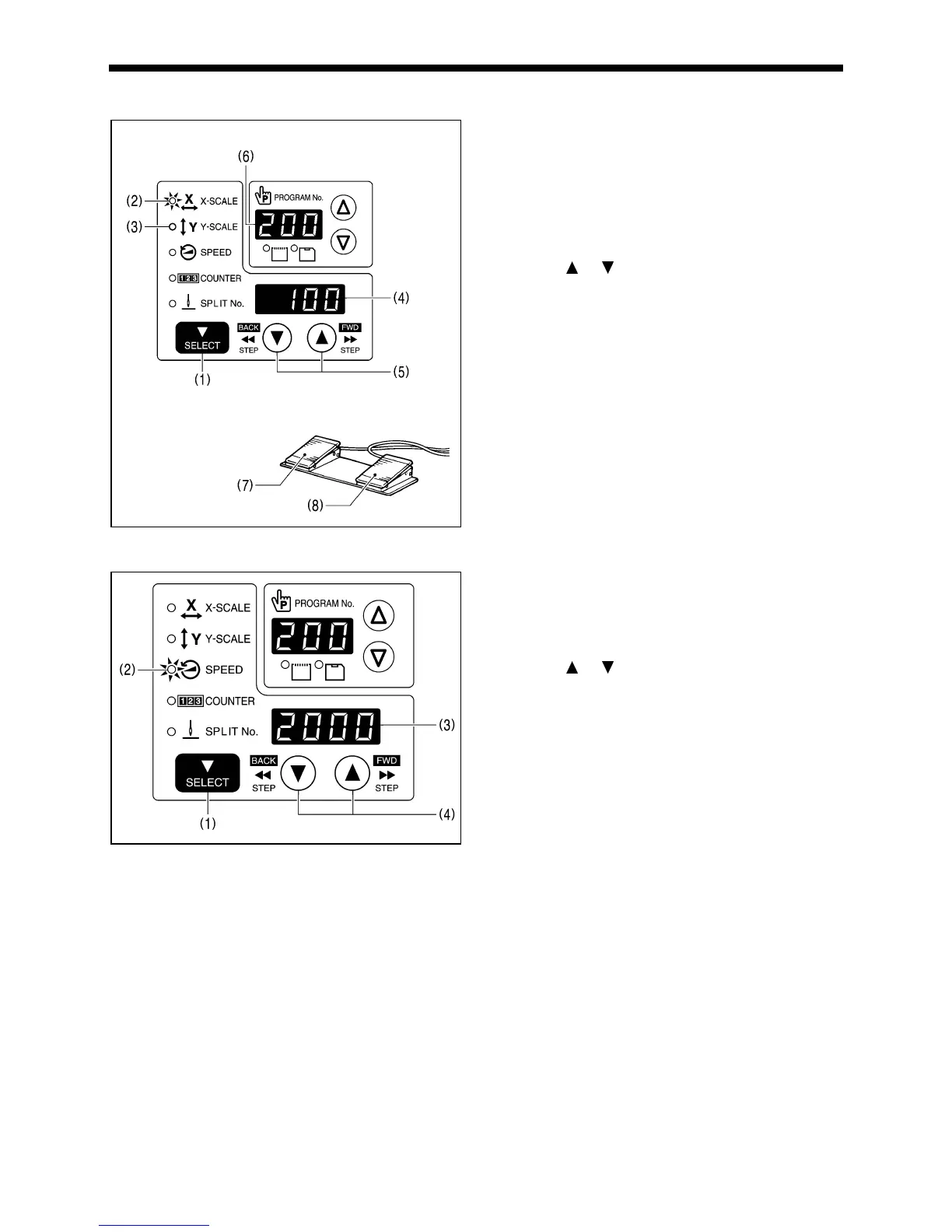

1. Press the SELECT key (1) so that the X-SCALE
indicator (2) (for X-scale setting) or the Y-SCALE
indicator (3) (for Y-scale setting) is illuminated.
• The setting value (%) will appear in the menu display
(4).
* When memory switch no. 402 is set to "ON", the
settings will be displayed in units of mm.
2. Press the
or key (5) to set the scale (0 − 400).
• The program number will flash in the PROGRAM No.
display (6).
3. Depress the work clamp switch (7) to lower the work
clamp, and then depress the start switch (8).
• The work clamp will move to the sewing start position,
and then the scales will be applied.
• The program number will stop flashing and illuminate
steadily.
NOTE:
After completing the setting, be sure to refer to "6-6.
Checking the sewing pattern" to check that the needle
drop position is correct.
6-5. Setting the sewing speed
The sewing speed is set to 2000 (rpm) at the time of
shipment from the factory.
1. Press the SELECT key (1) until the SPEED indicator (2)
illuminates.
• The setting value (rpm) will appear in the menu
display (3).
2. Press the
or key (4) to set the sewing speed.
(Sewing speed setting: 400 − 2700)
