4. INSTALLATION
8
BAS-342G

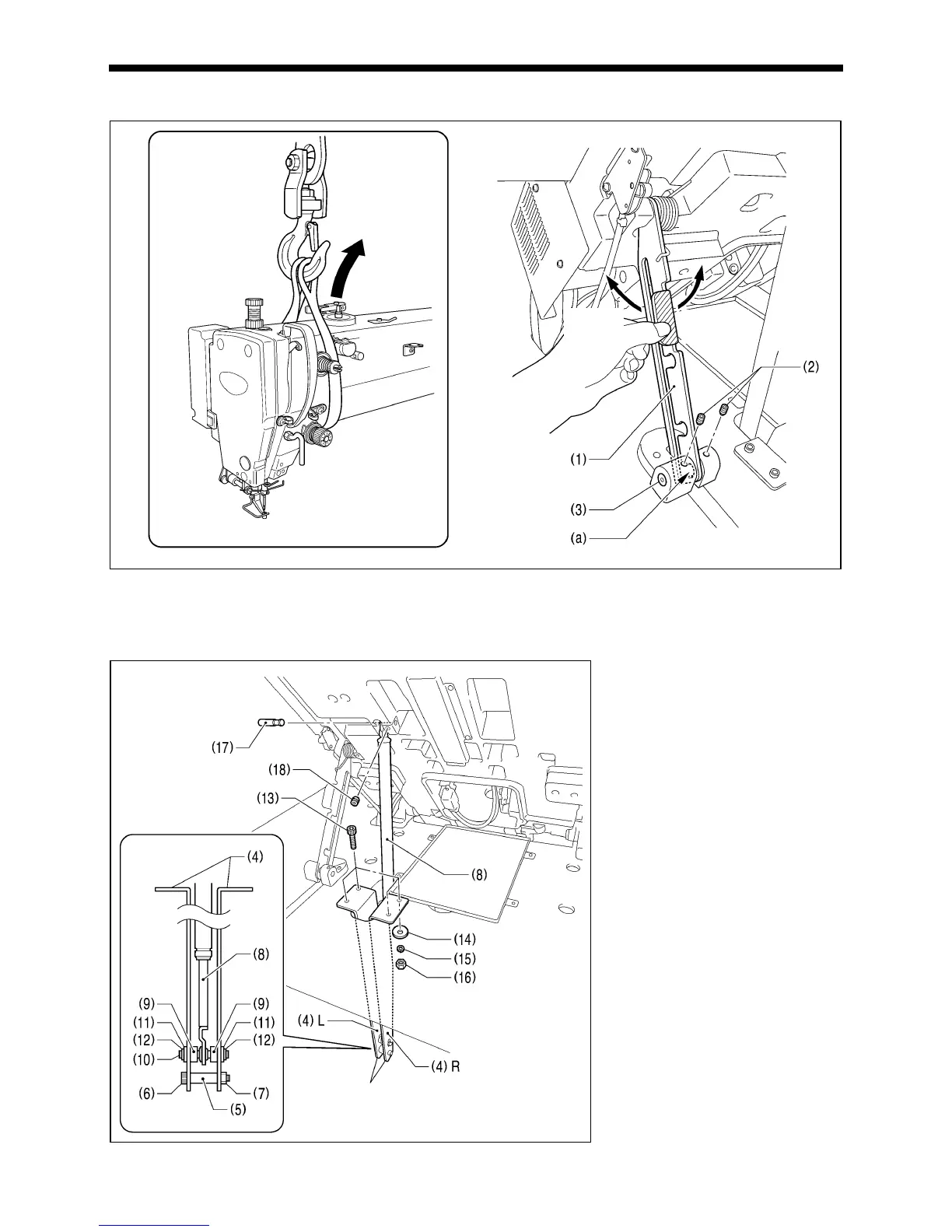

4-6. Installing the gas spring
1. Tilt back the machine head, and then secure the support lever (1) at stopper position (a).
(
Refer to "4-5. Tilting back and returning the machine head".)
NOTE: Use equipment such as a crane or hoist to tilt back the machine head.
2. Tighten the two set screws (2) to secure the support lever shaft (3).
3. Install the gas spring (8).
(4) Gas spring holders [L and R]
(5) Spacer
(6) Bolt
(7) Nut
(8) Gas spring
(9) Shaft collars [2 pcs.]
(10) Gas spring shaft D
(11) Plain washers [2 pcs.]
(12) Retaining rings E [2 pcs.]
(13) Bolts [4 pcs.]
(14) Plain washers [4 pcs.]
(15) Spring washers [4 pcs.]
(16) Nuts [4 pcs.]
(17) Gas spring shaft U
(18) Set screw
*
After installing the gas spring (8), gently
return the machine head to its original
position.
(
Refer to "4-5. Tilting back and
returning the machine head".)
3968
To Next Page
