3. T
A

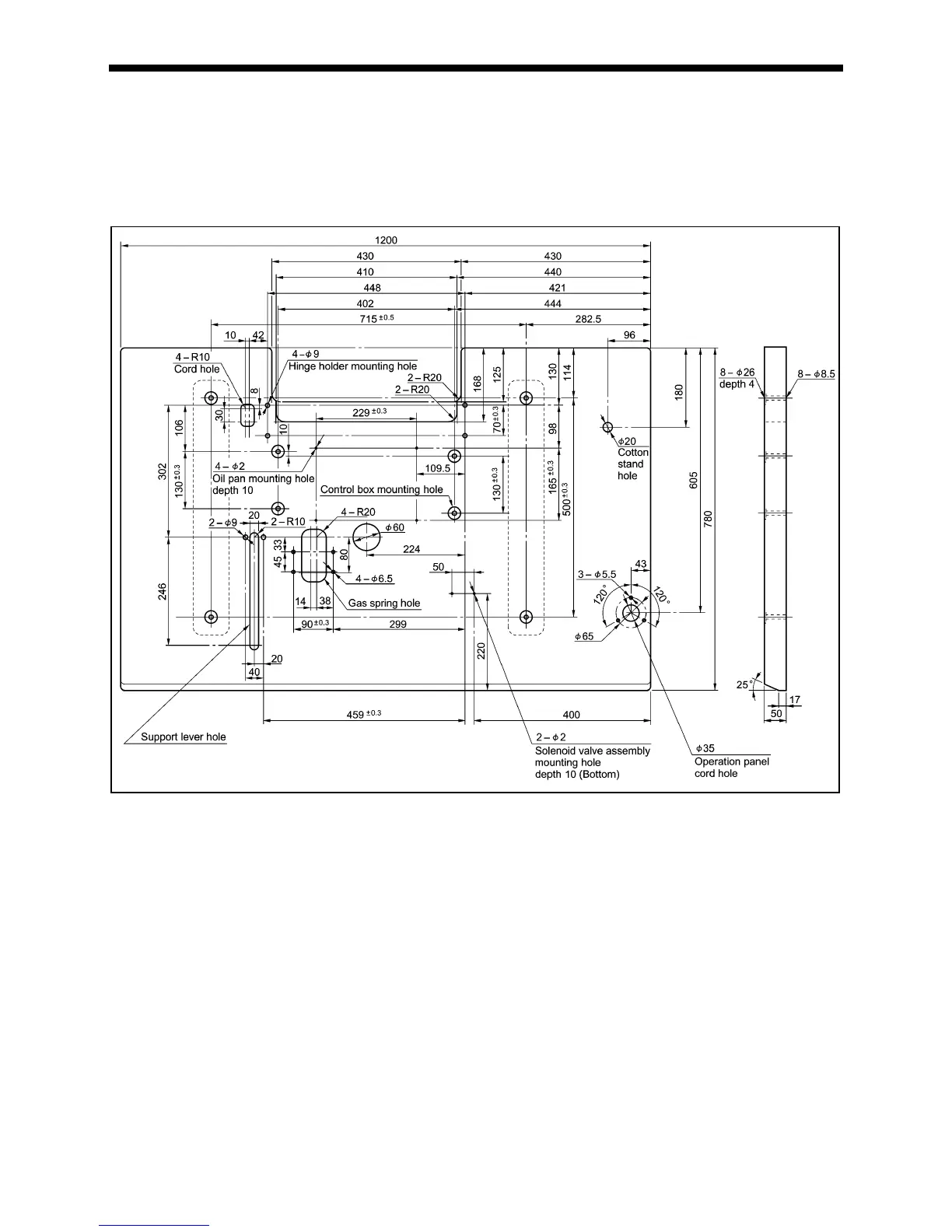

BLE PROCESSING DIAGRAM
3
BAS-342G
3
. T
ABLE PROCESSING DIAGRAM
•
The thickness of the
table should be at least 50 mm, and it s
hould be
strong enough to
bear the w
eight and vibration of the
sewing machine.
•
If using casters, use ones which can bear t
he total w
eight of sewing machine and table.
•
Check that the control box is at least 10
mm away from the leg. If the control
box and the leg are too close to
gether, it may
result
in incorrect sewing machine operation.
4053
M
11
13
Table of Contents
Default Chapter
3
Safety Instructions
3
Maintenance and Inspection
5
Table of Contents
8
1 Names of Major Parts
10
2 Specifications
11
3 Table Processing Diagram
12
4 Installation
13
Removing the Machine Head Fixing Bolts [1]
13
Installing the Control Box [2]
14
Installing the Oil Pan and Support Lever Base
15
Installing the Machine Head
15
Tilting Back and Returning the Machine Head
16
Installing the Gas Spring
17
Installing the Operation Panel [3]
18
Installing the Solenoid Valve Assembly
19
Connecting the Air Tubes [4]
19
Installing the Air Hose [5]
19
Adjusting the Air Pressure [6]
20
Adjusting the Speed Controller [7]
20
Connecting the Cords [8]
21
Connecting the Ground Wire [9]
23
Securing the Cords and Air Tubes [10]
24
Installing the Eye Guard [11]
25
Installing the Cotton Stand [12]
25
Lubrication [13]
26
Connecting the Power Cord [14]
27
Checking the Safety Switch [15]
27
5 Preparation before Sewing
28
Installing the Needle
28
Operating the 2-Pedal Foot Switch
28
Threading the Upper Thread
29
Threading Mode
30
Winding the Lower Thread
31
Installing the Bobbin Case
32
Thread Tension
33
Lower Thread Tension
33
Upper Thread Tension
33
Home Position Detection
34
Setting 2-Step Operation for the Work Clamp
35
6 Using the Operation Panel (Basic Operations)
36
Name and Function of each Operation Panel Item
36
Loading Sewing Data
38
Setting the Program Number
38
Setting the X-Scale and Y-Scale
39
Setting the Sewing Speed
39
Checking the Sewing Pattern
40
Setting the Height of the Intermittent Presser Foot
41
7 Using the Operation Panel (Advanced Operations)
42
List of Advanced Functions
42
Setting Memory Switches
43
List of Memory Switch Settings
44
Using the Lower Thread Counter
45
Using the Production Counter
46
Setting the Split Number
47
Using User Programs
48
Using Cycle Programs
51
Direct Selection (Combination Table)
53
And y Parallel Movement of Sewing Pattern
54
Clearing Memory Data (Reinitialization)
55
8 Using Cf Cards
56
Notes on Handling CF Cards (Sold Separately)
56
Structure of a CF Card Folder
56
Data Read/Write Mode
57
Reading All Sewing Data from the CF Card at Once
58
Writing All Sewing Data to the CF Card at Once
59
9 Sewing
60
Using the STOP Switch
61
Using the Thread Wiper Switch
61
10 Cleaning
62
Cleaning the Rotary Hook
62
Draining the Oil
62
Checking the Regulator
63
Cleaning the Control Box Air Inlet Ports
63
Cleaning the Eye Guard
63
Checking the Needle
63
Lubrication
63
11 Standard Adjustments
64
Adjusting the Thread Take-Up Spring
64
Adjusting Arm Thread Guide R
65
Adjusting the Needle Bar Height
65
Adjusting the Needle Bar Lift Amount
65
Adjusting the Driver Needle Guard
66
Adjusting the Needle Clearance
66
Adjusting the Shuttle Race Thread Guide
66
Adjusting the Rotary Hook Lubrication Amount
67
Adjusting the Position of the Movable Knife
68
Replacing the Movable and Fixed Knives
70
Installing the Feed Plate
71
Adjusting the Thread Wiper
71
Presser Foot Installation Position
72
Changing the Intermittent Stroke
72
Adjusting the Work Clamp Lift Amount
74
Adjusting the Air Pressure
74
12 Table of Error Codes
75
13 Troubleshooting
79
14 Segment Display
82
Instruction Manual
84
