5. USING THE OPERATION PANEL
21
KE-436C
5-3. Using the program R/W (Read/Write) switch
Programmed stitch patterns stored on floppy disk can be read into memory, and newly programmed patterns can be written
to disk for permanent storage and later recall.

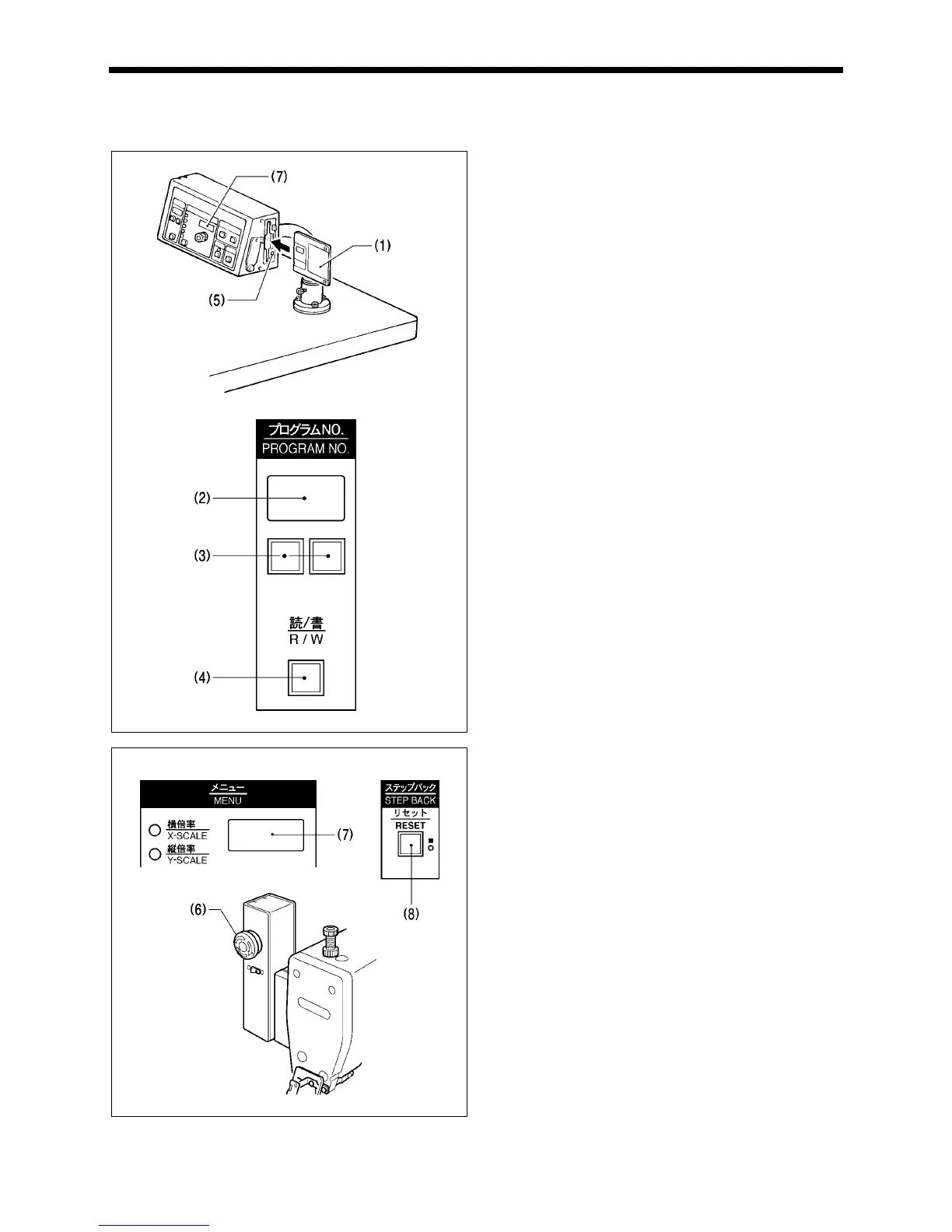

Insert the floppy disk (1) containing or which is to contain the
programmed stitch pattern.
To READ a pattern to memory
Press the program select switch (3) on the operation panel.
The program number will then appear in the PROGRAM NO.
display (2). After selecting the desired program number,
press the R/W switch (4). The disk drive indicator (5) will
illuminate and a “P” will appear on the PROGRAM NO.
display (2) to indicate that the data is being read. When the
alarm sounds and the disk drive indicator (5) turns off, the
program number will then flash in the PROGRAM NO.
display (2) instead of the “P” to indicate that the reading of
the data is complete.
To WRITE a pattern to disk
Press the program select switch (3) on the operation panel
to select the desired program number. After programming
the pattern using the stitch programmer, press the R/W
switch (4). The disk drive indicator (5) will illuminate and a
“P.” will appear on the PROGRAM NO. display (2) to indicate
that the data is being written. When the alarm sounds and
the disk drive indicator (5) turns off, the program number will
then flash in the PROGRAM NO. display (2) instead of the
“P” to indicate that the writing of the data is complete.
If an error message is displayed
If an error message code is displayed in the display (7), and
alarm will sound.
Press the emergency stop switch (6) on the front of the
machine to stop sewing machine operation, and then refer to
and follow the error code list on page 58 to 59.
Clearing the error
1. Turn the EMERGENCY STOP switch (6) clockwise and
then pull it forward to release it.
2. Press the STEP BACK (RESET) switch (8) on the
operation panel (when memory switch No. 0d is ON).
If memory switch No. 0d is OFF, press the EMERGENCY
STOP switch (6) once more to release it.
