10. DIP SWITCH
51
KE-436C

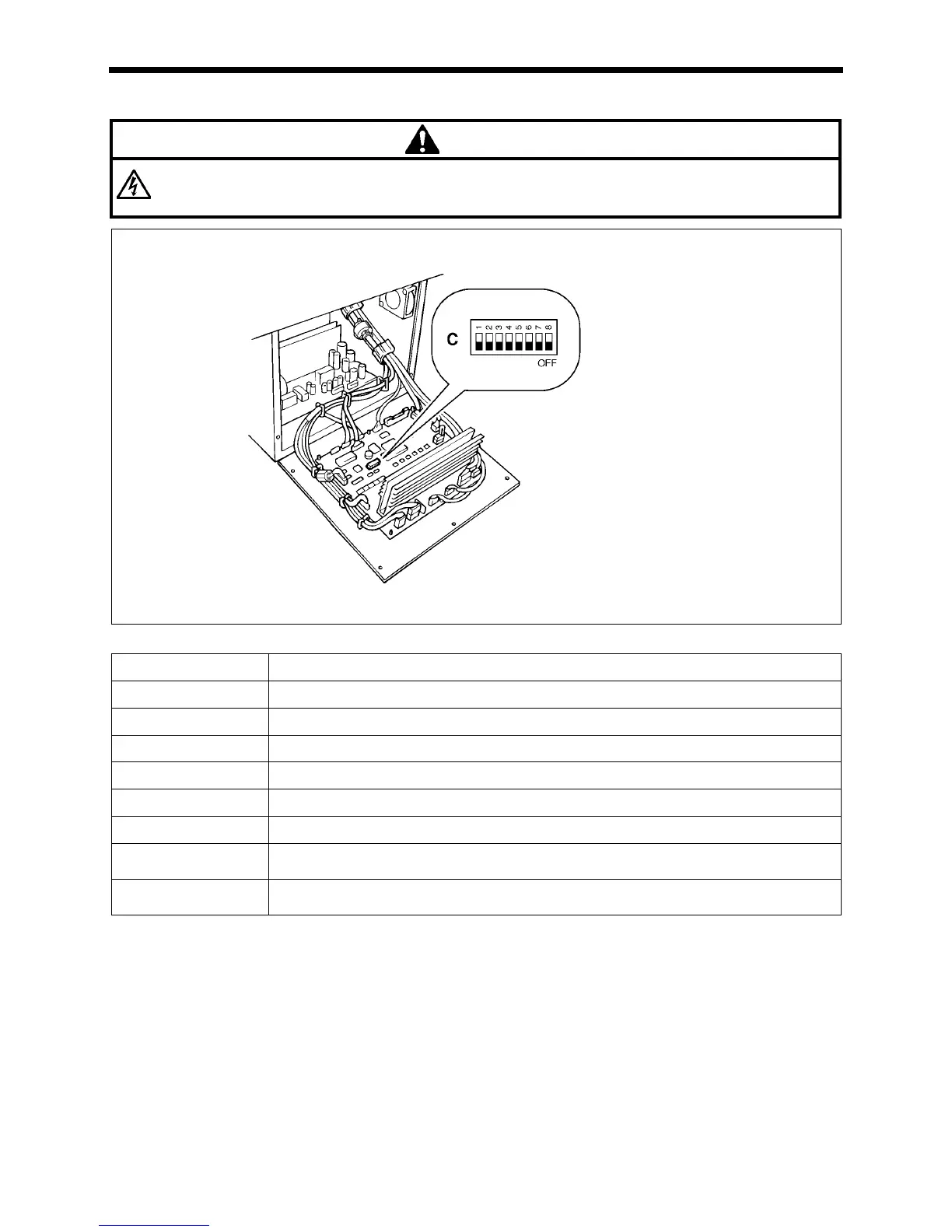

10-2. DIP switches inside the control box
DANGER
Wait at least 5 minutes after turning off the power switch and disconnecting the power cord from the wall outlet
before opening the face plate of the control box. Touching areas where high voltages are present can result in
severe injury.
DIP switch C
Switch Motion when set to ON
DIPC-1 First two stitches are sewn at a low speed of 260 rpm.
DIPC-2 Last two stitches are sewn at a low speed of 260 rpm.
DIPC-3 −
DIPC-4 Last two stitches are sewn at a low speed of 700 rpm.
DIPC-5 First two stitches are sewn at a low speed of 400 rpm.
DIPC-6 Low speed sewing is not performed at the start of sewing.
DIPC-7
The motor operates in reverse when the upper shaft stops, to return the needle
bar to close to its highest position. *Note
DIPC-8
During an emergency stop, the thread is trimmed and the needle bar stops in the
raised position.
*Note
:
When the motor operates in reverse to raise the needle, the thread take-up will stop at a position which is lower than its
normal stopping position. As a result, the thread take-up will rise slightly at the sewing start, and this may result in the
thread pulling out under certain conditions.
1087Q
All DIP switches are set to OFF at the time of shipment.
Note:
When opening the cover, hold it securely so that it does not fall down.
