12. SETTING THE WORK CLAMP MODE
57
KE-436C
12-1. Light work clamp
For pneumatic specifications, the hose connections can be changed so that the pressers are made to lower gently when the
presser pedal is depressed to the 1st step, and firmly when the presser pedal is depressed to the 2nd step. This makes it
easier to carry out position matching when attaching small articles such as labels.
[Memory switch setting]
Set memo-3b to 5 for two-pedal mode so that the pressers lower in the order of left then right for the standard hose
connection. (Refer to “11. Changing special functions using the memory switches”.)

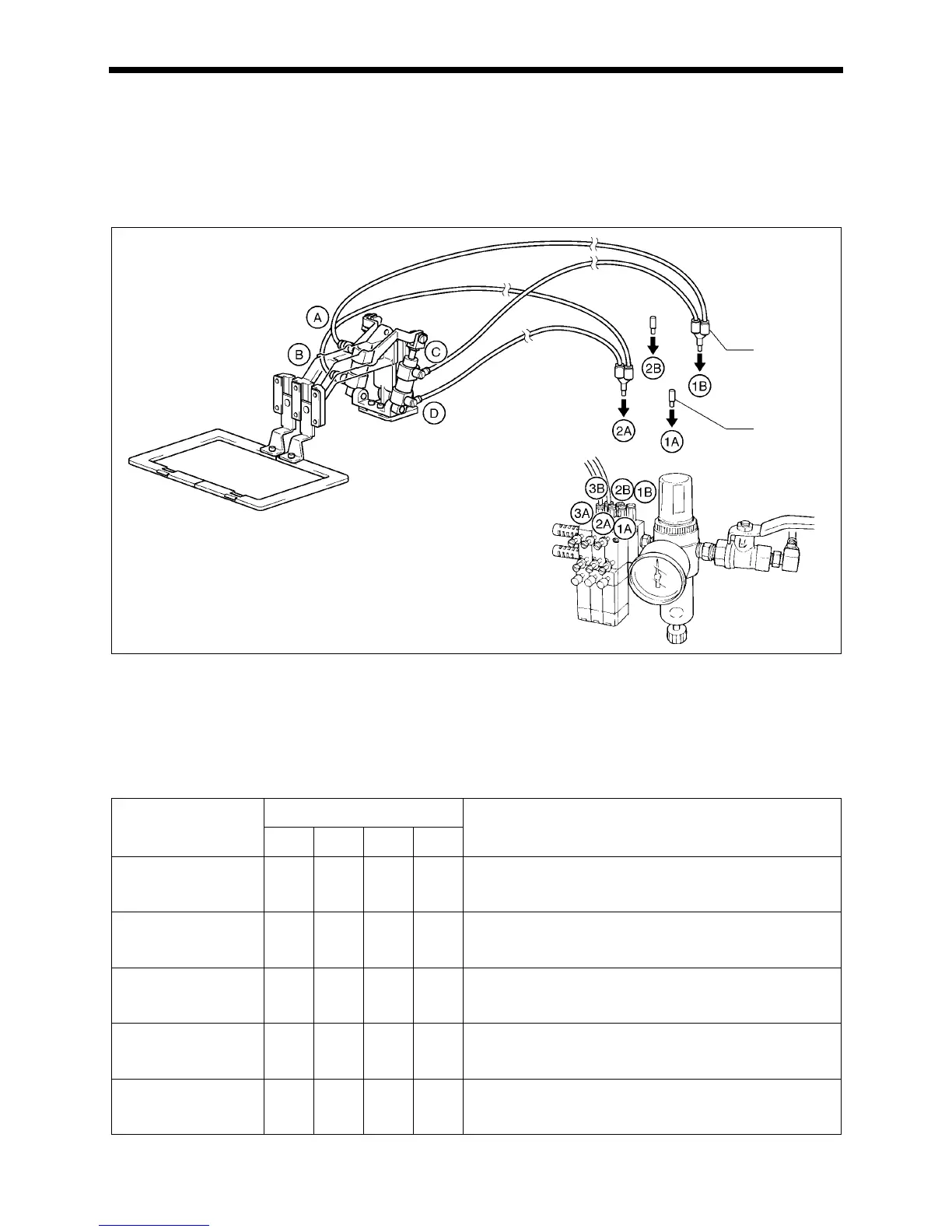

< Hose connections for light work clamp operation by both pressers >
[How to use]
1. Depress the presser pedal to the 1st step to lower the pressers and apply a light pressure. You can then position small
articles such as labels at this time.
2. After checking that everything is positioned correctly, depress the presser pedal to the 2nd step to firmly clamp the article
being sewn.
3. Press the start pedal to start sewing.
<Other hose connections and corresponding operations>
The hoses can be connected in combinations other than the one shown above so that only one side of the presser operates
in light work clamp mode.
Cylinder connectors
Branch and plug
connectors
ABCD
Operation when presser pedal is depressed to the 1st step
Branch: 1B, 2A
Plug: 1A, 2B
1B 2A 1B 2A
Both pressers operate in light work clamp mode
(example shown above)
Branch: 1B
Plug: 2B
1B 2A 1B 1A
Only left presser lowers, and it lowers in light work clamp mode
Branch: 1B
Plug: 2B
1B 1A 1B 2A
Only right presser lowers , and it lowers in light work clamp
mode
Branch: 2A
Plug: 1A
1B 2A 2B 2A
Both pressers lower, but only left presser lowers in light work
clamp mode
Branch: 2A
Plug: 1A
2B 2A 1B 2A
Both pressers lower, but only right presser lowers in light work
clamp mode
1088Q
Branch
Plug
