5. USING THE OPERATION PANEL
23
KE-436C

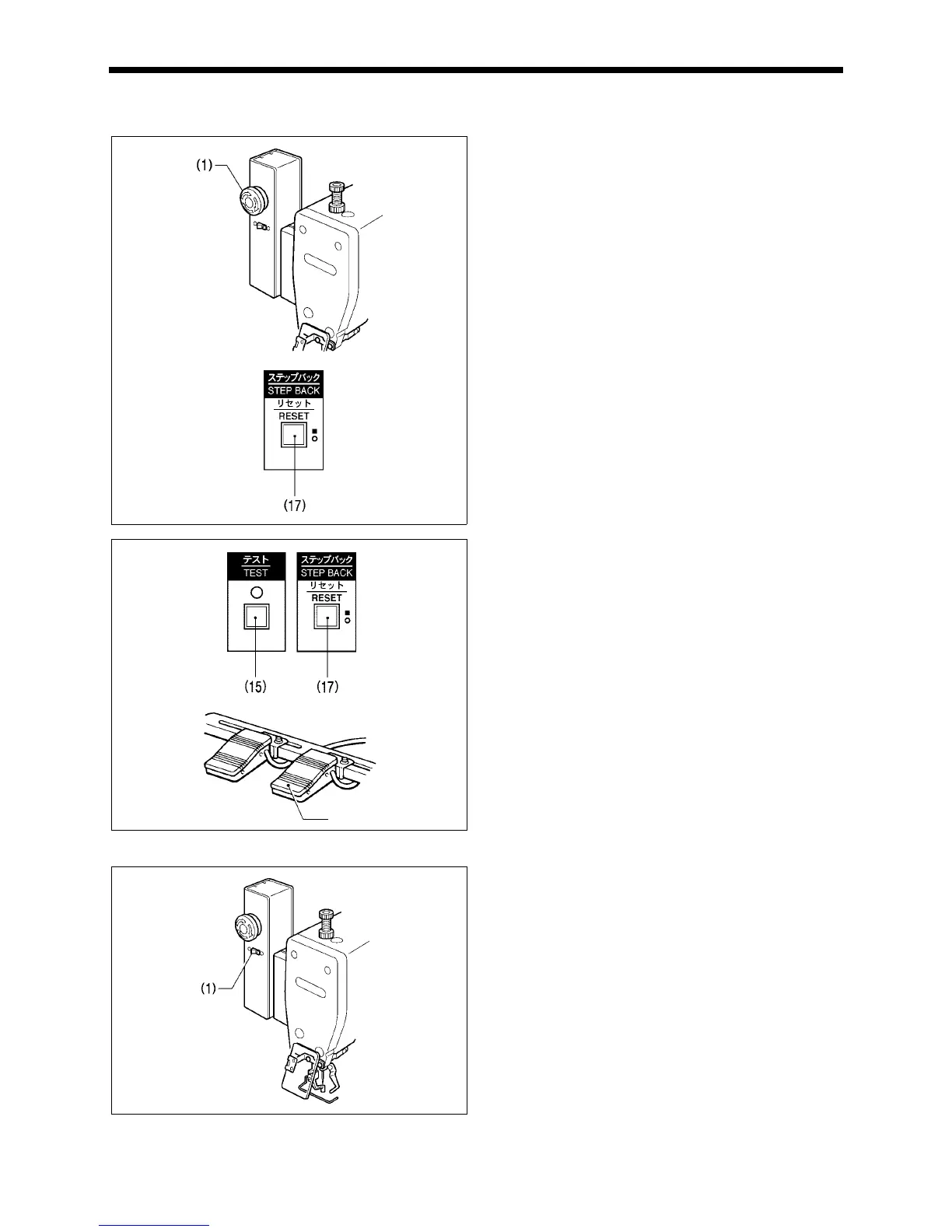

5-6. Using the emergency stop switch
Press the emergency stop switch to immediately stop the sewing machine during actual sewing or when in the test mode.
Clearing the error
1. Turn the EMERGENCY STOP switch (1) clockwise and
then pull it forward to release it.
2. Press the STEP BACK (RESET) switch (17) on the
operation panel.
(The buzzer will stop sounding.)
3. If you do not wish to resume sewing, press the
EMERGENCY STOP switch (1) once more to release it,
and then press the STEP BACK (RESET) switch (17) so
that the operation panel display flashes. The sewing
machine will then be ready for the next sewing operation.
* lf memory switch No. 0d is OFF, press the EMERGENCY
STOP switch (1) once more to release it.
Continuing sewing from a stopping point
lf you press the EMERGENCY STOP switch after the thread
breaks or the bobbin thread runs out during sewing, you can
then resume sewing from the point where the thread broke
or ran out.
1. Press the EMERGENCY STOP switch to release it.
2. Press the STEP BACK (RESET) switch (17) to trim the
thread.
3. Press the STEP BACK (RESET) switch (17) once more.
(The sewing machine will move stitch by stitch in the
reverse direction while this switch is pressed.)
If the sewing machine moves back too far, press the
TEST switch (15) to move it forward again. Press the
TEST switch (15) again to stop the machine.
4. After you have reached the desired position, depress the
start switch to start sewing.
5-7. Using the thread wiper switch
The thread wiper can be turned on and off using the thread
wiper switch (1).
2698Q
2699Q
2700Q
1080Q
Start switch
2608Q
To Next Page
