CHAPTER 2 "PCL" - 74

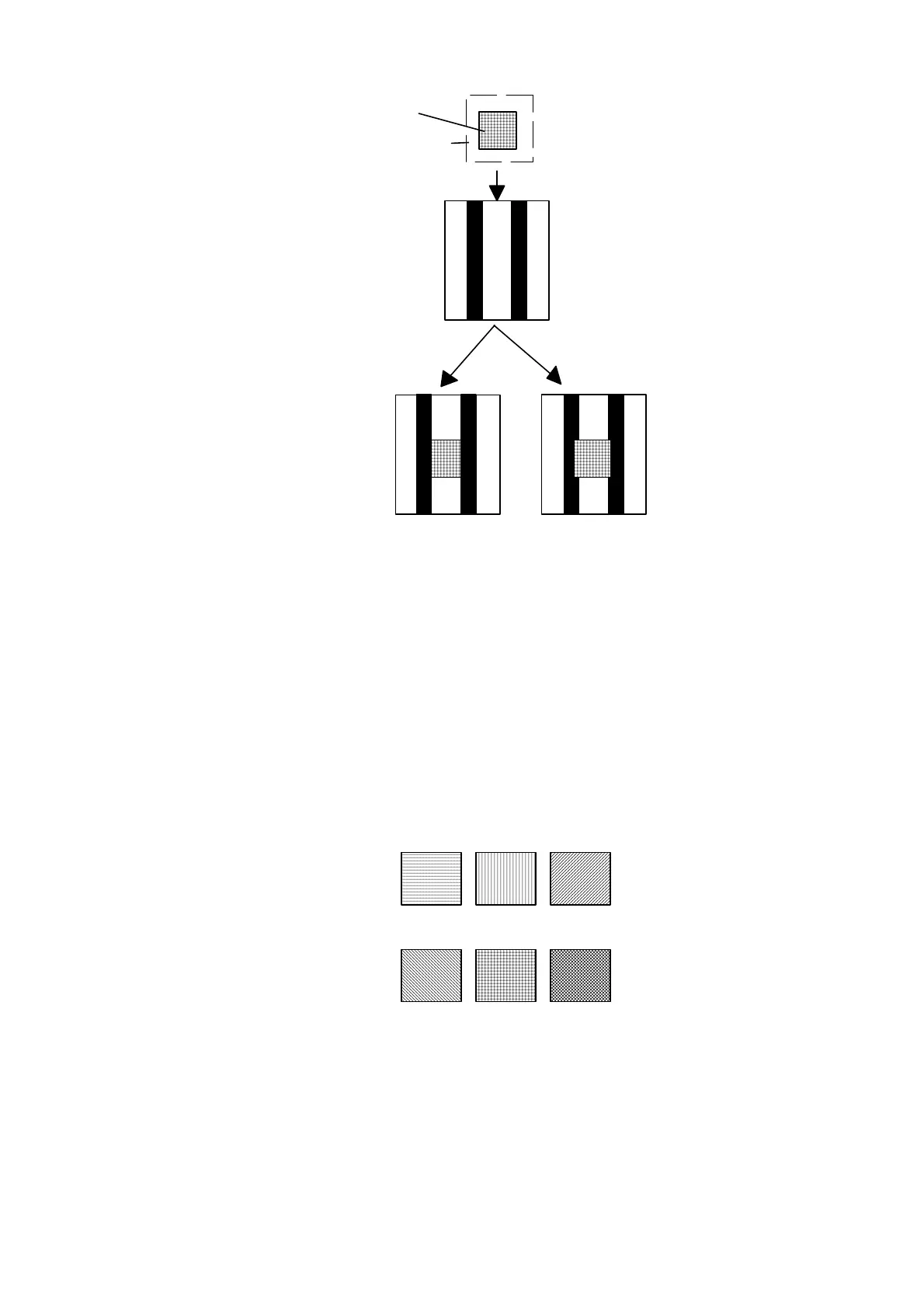

For example
Pattern
Source image
Destination image
Possible results
With transparent
pattern
With opaque
pattern
(Source image is transparent)
6.1.3. Set area fill identity
Esc*c#G (27)(42)(99)#(71) <1Bh><2Ah><63h>#<47h>
•
This command sets the pattern ID of a shading tone, a fill pattern or a user-defined pattern for subsequent
selection with the Set Pattern Type command.
• # 1 ~ 100 specify the percentage of a gray scale.
• # 1 ~ 6 select a fill pattern.
• # 1 ~ 32767 select a user-defined pattern.
• You can specify a gray scale tone from 1 to 100. To use the specified tone for shading you must then select
one of the two gray scale pattern options with the Set Pattern Type command.
For example
# = 1 # = 2 # = 3
# = 4 # = 5 # = 6
Fill patterns
