2.7.6 Machine and Software Identification

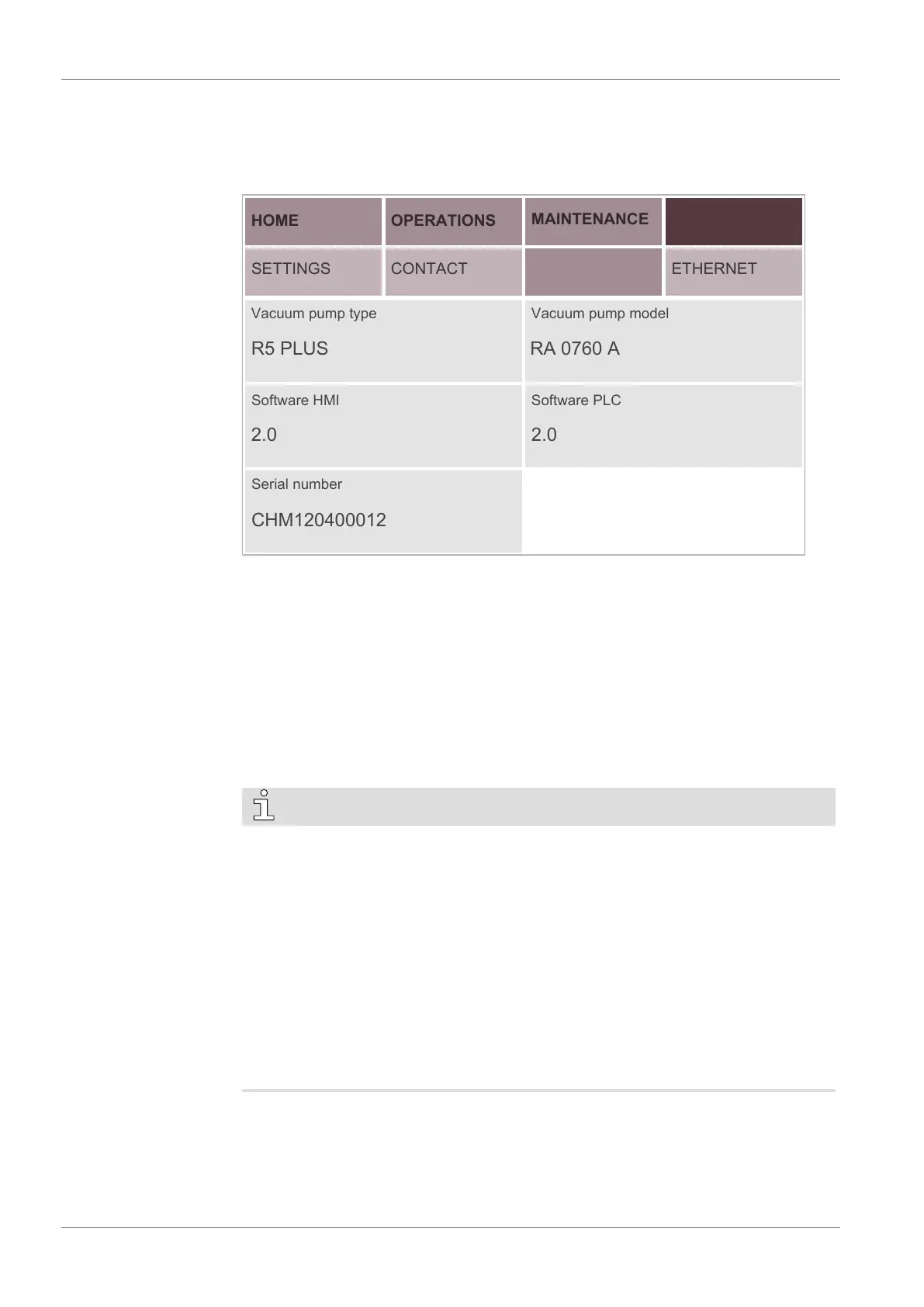

To display the machine and software identification:

• Go to “SYSTEM” > “MODEL”.

HOME

SETTINGS

OPERATIONS

CONTACT

MAINTENANCE SYSTEM

MODEL

Vacuum pump type Vacuum pump model

Software HMI Software PLC

Serial number

R5 PLUS RA 0760 A

2.02.0

CHM120400012

ETHERNET

2.7.7 Ethernet Settings

To configure the ethernet settings according to your network:

• Go to “SYSTEM” > “ETHERNET”.

• Make sure that the Ethernet port (COM) on the right side of the control unit (CU) of

the machine is connected to a computer or to the company network.

• Change the values on the right side of the screen (Change settings), password re-

quired ► Role 2, see Role and User [►12].

• Press on the switch button to save the new settings.

NOTE

The current Ethernet values are displayed in the left side of the screen (Ethernet settings).

To change these values, it is necessary to fill in all the fields in the right side of the

screen (Change settings) before applying the changes by pressing on the switch but-

ton:

• New IP address

• New subnet mask

• New gateway

ð To change the Ethernet settings, it is necessary to connect the PLUS pump with the

desired equipment beforehand via the Ethernet port available on the right side of the

control cabinet (LAN - see illustration in the chapter “Product Description” of the in-

struction manual of the vacuum pump).
