CAME GARD 8 SERIES Installation And Operation Manual






MAX

p.
3
- Manual code:
FA01036-EN
FA01036-EN v.
1
- 01/2018 - © Came S.p.A. - The manual's contents may be edited at any time without notice.
LEGEND
 This symbol shows which parts to read carefully.
⚠
This symbol shows which parts describe safety issues
☞
This symbol shows which parts to tell users about.
DESCRIPTION
Barrier made of varnished galvanized steel or AISI 304 satin finished stainless steel, set up for accessories.
Intended use
The automatic barrier is designed for private and public parking facilities.
Any installation and/or use other than that specified in this manual is forbidden.
Limits to use
Type G2080Z - G2080IZ
Maximum clearance width of the passage (m) 7.60

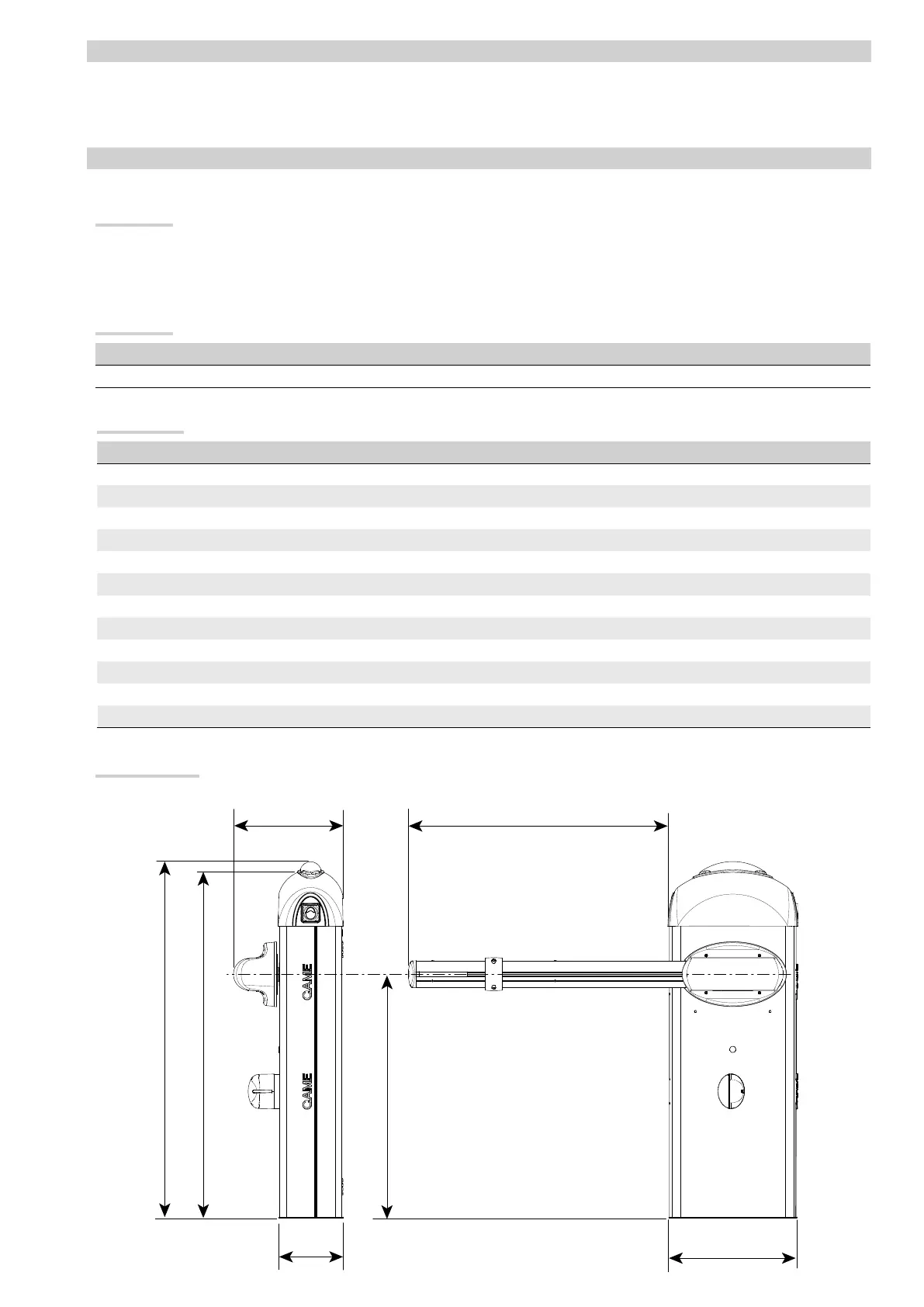

Dimensions (mm)
Technical data
Type G2080Z - G2080IZ
Protection rating (IP) 54
Power supply (V - 50/60 Hz) 230 AC
Power supply motor (V) 24 DC
Max draw (A) 15
Power rating (W) 300
Torque (Nm) 600
Opening time at 90° (s) 4 ÷ 8
Duty cycle INTENSIVE USE
Operating temperature (°C) -20 ÷ +55
Reduction ratio (i) 1/202
Insulation class I
Weight (kg) 91
