ONLY CLOSE function from control device (NO contact).
Warning: in MAINTAINED ACTION mode, the control
device must be connected to 2-4.
Set the jumper as shown in the fi gure.
Command and control devices
STOP button (NC contact). It is for stopping the barrier while excluding automatic closing. To
resume movement, press the control button or one on another control device.
If unused, set DIP switch 9 to ON.
Warning: in MAINTAINED ACTION mode, the control device must be connected to 2-3
ONLY OPEN or OPEN-CLOSED-INVERT (step-step)
function from control device (NO contact, see DIP switch
2).
Set the jumper as shown in the fi gure.
Safety devices

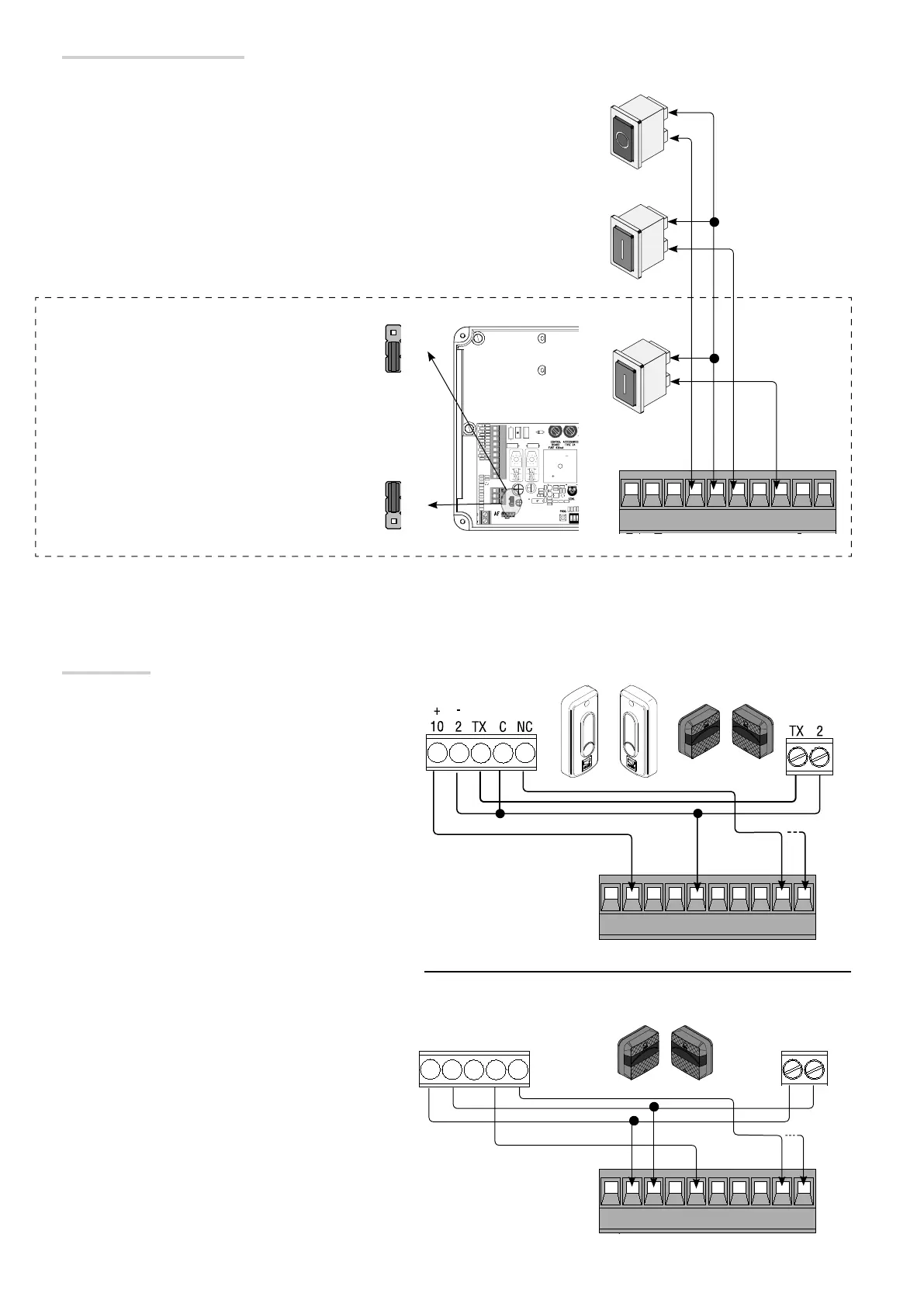

Photocells
DIR
Photocells
DELTA-S
Photocells
DELTA
Configure contact C1 and/or C5 (NC), input for safety
devices such as photocells.
C1 reopening while closing. When the boom is closing,
opening the contact causes its movement to invert until
fully opened;
If unused, shortcircuit contact 2-C1.
C5 immediate closing. Closing the boom after a vehicle
has passed through the operating area of the safety
devices.
If unused, set DIP switch 8 to ON.
