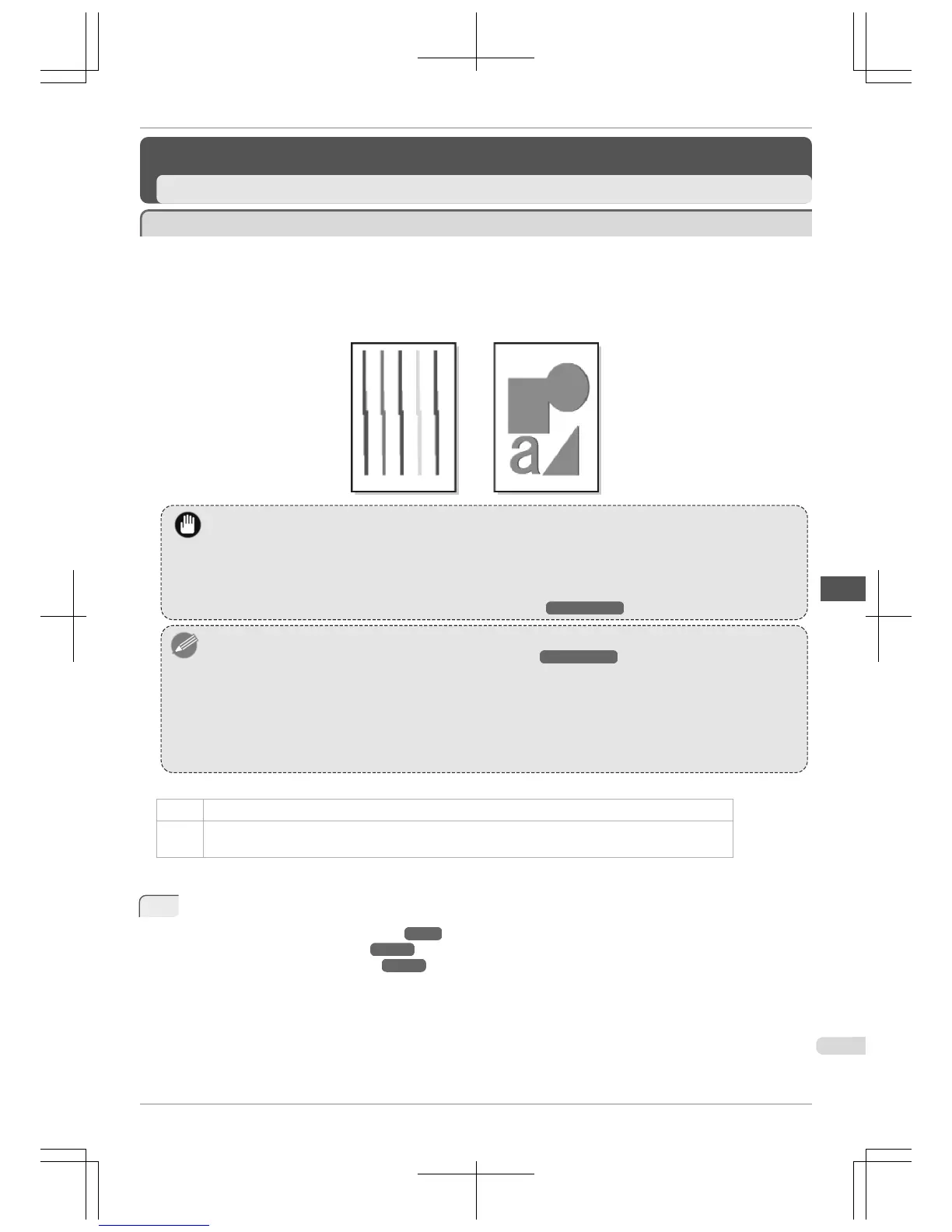

Automatic Adjustment to Straighten Lines and Colors (Head Posi. Adj.)
Automatic Adjustment to Straighten Lines and Colors (Head Posi. Adj.)
If printed vertical lines are warped or colors are out of alignment, execute Head Posi. Adj. to adjust the Printhead
alignment.
There are two modes for automatic Printhead adjustment: Auto(Standard) and Auto(Advanced).
Auto(Standard) will fix most slight image distortion or color misalignment, but if not, try Auto(Advanced).
Use Auto(Standard) or Auto(Advanced) to have the printer print and read a test pattern for automatic adjustment
of the Printhead.
Important
• Always make sure the loaded paper matches the type of paper specified on the printer. Adjustment cannot be comple-
ted correctly unless the loaded paper matches the settings.
• This function is not available with CAD Tracing Paper, CAD Translucent Matte Film, or CAD Clear Film.
If adjustment is not possible as expected using highly transparent film or similar media, try another type of paper, or try
Manual adjustment.
(See "Manual Straightening of Lines and Colors (Head Posi. Adj.).") →User's Guide
Note
• When printing on special paper, or if printing is not improved after Auto(Advanced), try Manual.
(See "Manual Straightening of Lines and Colors (Head Posi. Adj.).") →User's Guide
• Use Auto(Standard) if you have switched to another type of paper or if you want the boundaries between colors to
appear as clear as possible.
• Use Auto(Advanced) to fine-tune the space between nozzles or colors if you have switched the printhead or if clearer
printing is required. We recommend Auto(Advanced) for printing at the highest level of quality.
• We recommend using the type of paper you use most often for adjustment.
Paper to Prepare
Rolls An unused roll at least 10 inches wide
Sheets Auto(Standard) : One sheet of unused paper of at least A4/Letter size
Auto(Advanced) : Five sheets of unused paper of at least A4/Letter size (or one sheet when using A2 or larger)
Perform adjustment as follows.
1 Load the paper.
• Attaching the Roll Holder to Rolls →P.9
• Loading Rolls in the Printer →P.12
• Loading Sheets in the Printer →P.18
iPF765
Automatic Adjustment to Straighten Lines and Colors (Head Posi. Adj.)
Basic Guide
Adjustments for Better Print Quality Adjusting the Printhead
77

Canon imagePROGRAF iPF765 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 914.4 mm
Media width (sheets)	203.2 - 917 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
Certification	CE, RoHS, ECO, WEEE
Storage media	HDD
Internal storage capacity	250 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	50 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
Sustainability certificates	ENERGY STAR
Power requirements	100 - 240V, 50/60Hz
Power consumption (standby)	5 W
Power consumption (typical)	140 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7\\r Mac OS 10.5 - 10.7.x

Weight and Dimensions

Dimensions (WxDxH)	1304 x 1100 x 1062 mm
