Canon imagePROGRAF iPF765 Basic Guide

Handling Paper
Handling Paper
Handling rolls
Handling rolls
Attaching the Roll Holder to Rolls ................................................................................................................... 9
Loading Rolls in the Printer ........................................................................................................................... 12
Removing the Roll from the Printer ............................................................................................................... 15

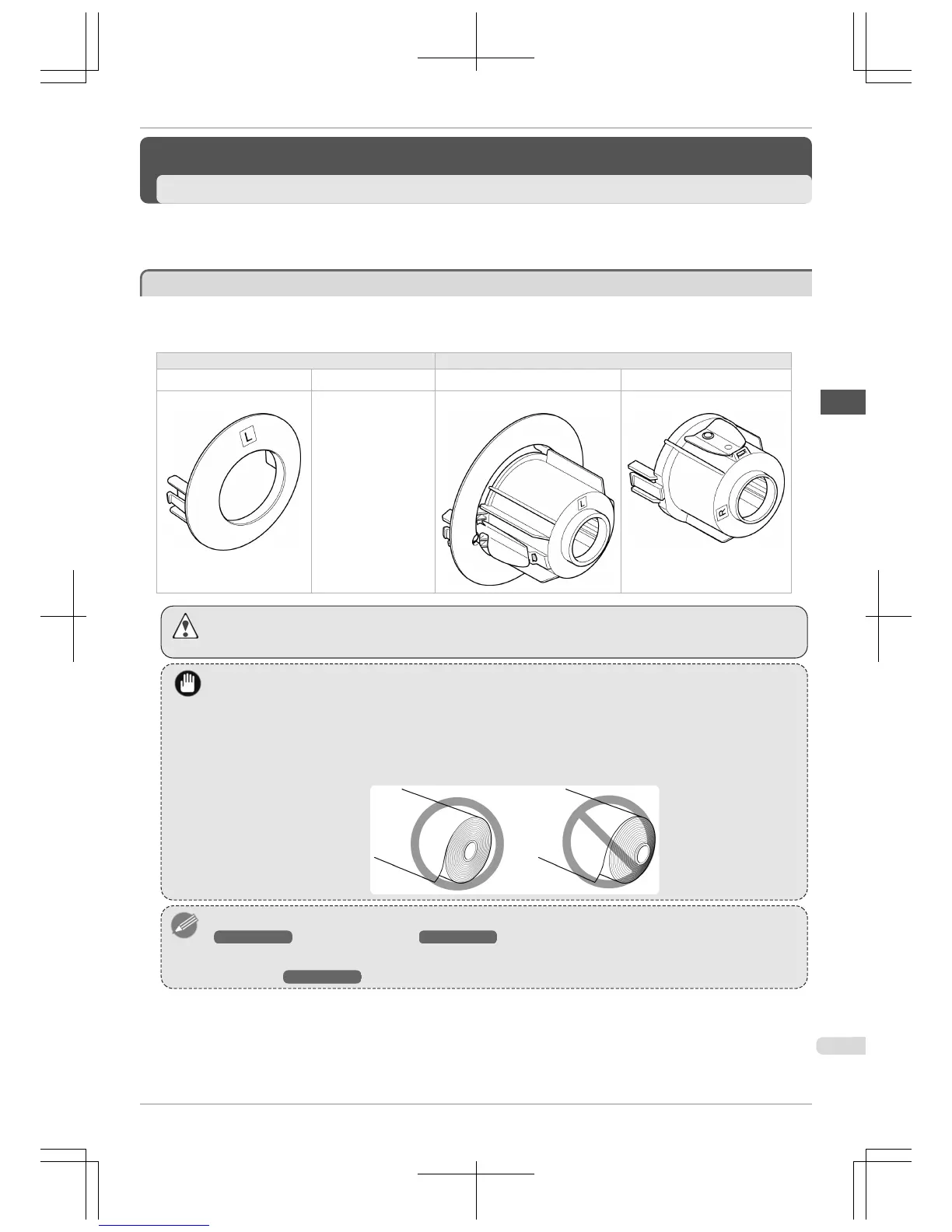

Attaching the Roll Holder to Rolls
Attaching the Roll Holder to Rolls
When printing on rolls, attach the Roll Holder to the roll.
Rolls have a two- or three-inch paper core. Use the correct attachment for the paper core. The printer comes
equipped with the 2-Inch Paper Core Attachment installed.
Using Rolls with a 2-Inch Paper Core Using Rolls with a 3-Inch Paper Core
Holder Stopper (Left Side) Roll Holder (Right Side) Holder Stopper (Left Side) Roll Holder (Right Side)
2-Inch Paper Core Attachment No Attachment Needed 3-Inch Paper Core Attachment L 3-Inch Paper Core Attachment R
Caution
• Set the roll on a table or other flat surface so that it does not roll or fall. Rolls are heavy, and dropping a roll may cause
injury.
Important
• When handling the roll, be careful not to soil the printing surface. This may affect the printing quality. We recommend
wearing clean cloth gloves when handling rolls to protect the printing surface.
• Use scissors or a cutting tool to cut the edge of the roll paper if it is uneven, dirty, or has tape residue. Otherwise, it
may cause feeding problems and affect the printing quality. Be careful not to cut through any barcodes printed on the
roll.
• Align the edges of the paper on both ends of the roll. Misalignment may cause feeding problems.
Note
• For details on supported sizes and types of rolls, see Paper Sizes or the Paper Reference Guide. (See "Paper Sizes.")
→User's Guide (See "Types of Paper.") →User's Guide
• To view instructions as you attach the Roll Holder, press the Navigate button. (See "Viewing Instructions With the Navi-
gate Button.") →User's Guide
iPF765 Attaching the Roll Holder to Rolls
Basic Guide
Handling Paper Handling rolls
9

Canon imagePROGRAF iPF765 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 914.4 mm
Media width (sheets)	203.2 - 917 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
Certification	CE, RoHS, ECO, WEEE
Storage media	HDD
Internal storage capacity	250 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	50 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
Sustainability certificates	ENERGY STAR
Power requirements	100 - 240V, 50/60Hz
Power consumption (standby)	5 W
Power consumption (typical)	140 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7\\r Mac OS 10.5 - 10.7.x

Weight and Dimensions

Dimensions (WxDxH)	1304 x 1100 x 1062 mm
